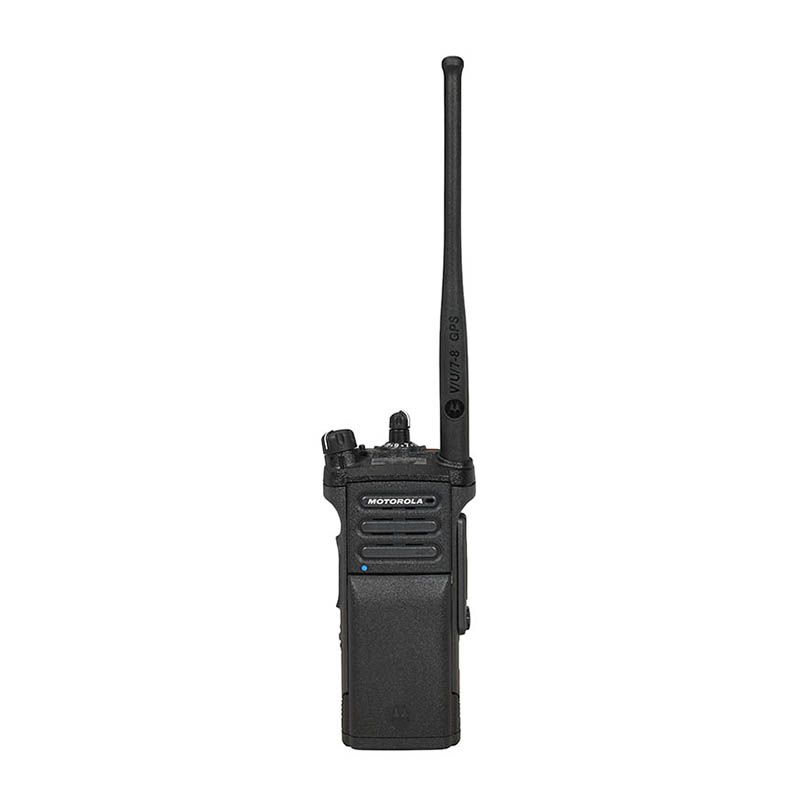

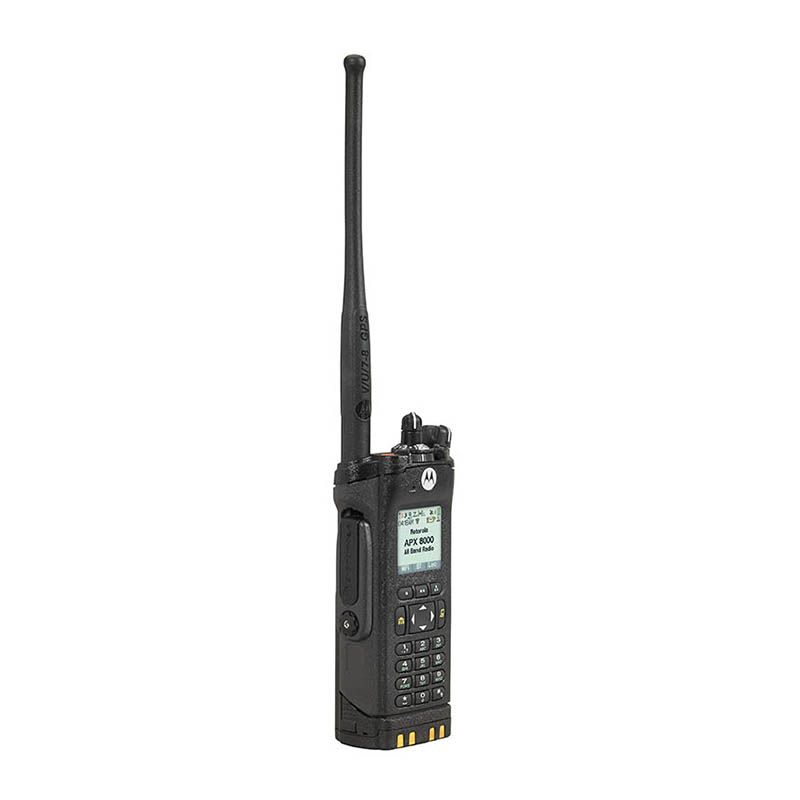

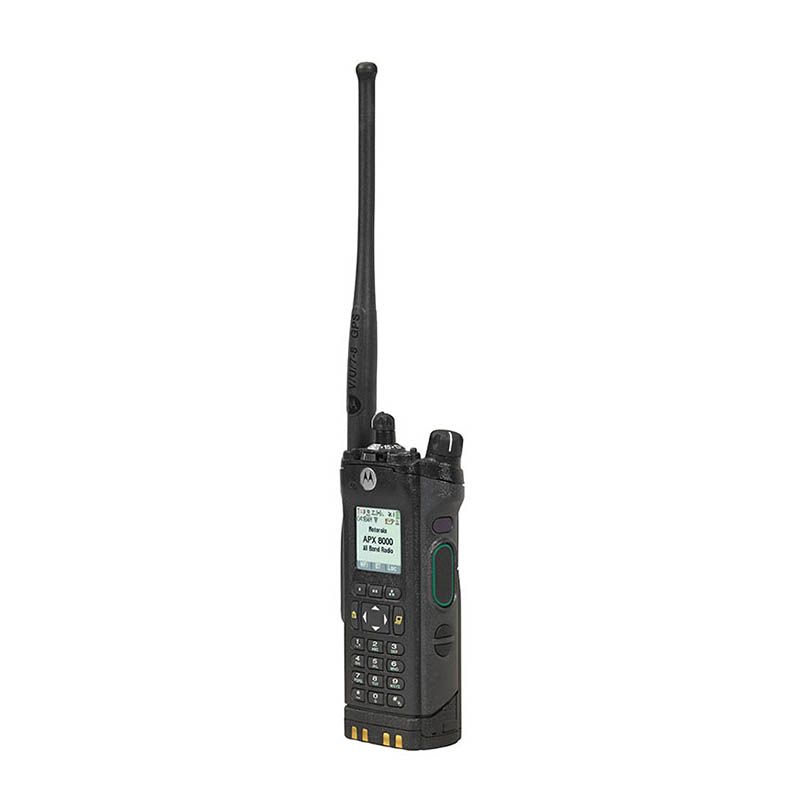

APX8000 All-bands P25 ASTRO Portable Two Way Radio

Frequency Range: 700/800MHZ; VHF 136-174MHz; UHF Range 1:380-470MHz; UHF Range 2:450-520MHz
Channel Capacity: 3000
Dimensions (HxWxD): 3.4” x 2.3” x 1.7”
Weight: 6.5 oz

EMAIL

APX8000 All-bands P25 ASTRO Portable Two Way Radio


1. Features


Unlimited Mobility. Uncompromising Performance.

With four RF bands and multi-mode system access, the APX 8000 knows no limits when it comes to interoperability. Whether it’s loud or windy, whether you whisper or yell, the Adaptive Audio Engine and ultra-loud speaker bring clarity into every conversation. With Wi-Fi access, the APX 8000 can quickly receive new codeplugs, firmware and software features in order to redeploy the radio fleet with ease as users keep talking without interruption. Intuitively designed with a familiar look and feel, the compact APX 8000 is always comfortable to use, from your grip to your holster.


KEY FEATURES

•  Unlimited interoperability with one device

•  Secure WiFi for seamless software updates

•  Extra-large buttons for glove use

•  IP68 submersion (2 meters, 4 hours)

•  ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 NO. 213-15, Nonincendive Electrical Equipment for Use in Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G; Class III, Division 2

•  Integrated GPS/GLONASS for outdoor location tracking

•  Equipped with FIPS - certified encryption hardware

•  RFID volume knob for asset tracking (optional)

•  Bluetooth-enabled APX radios capable of transmitting  SCBA voice and data

RF BANDS

• 700/800 MHz, VHF, UHF Range 1 & 2

OPERATION MODES

•  9600 Baud Digital APCO P25 Phase 1 FDMA and Phase 2 TDMA Trunking

•  3600 Baud SmartNet®, SmartZone®,  Omnilink Trunking

•  Digital APCO 25, Conventional, Analog MDC 1200, Quick Call II System Configurations

•  Narrow and wide bandwidth digital receiver (6.25 kHz equivalent/25/20/12.5 KHz)

STANDARD FEATURES

•  Mission Critical Wireless Bluetooth*

•  ASTRO 25 Integrated Voice & Data

•  Integrated GPS/GLONASS for outdoor  location tracking

•  Software Key

•  Text-Messaging

•  Voice Announcements

•  ISSI 8000 Roaming

•  Radio Profiles, Dynamic Zone

•  Intelligent Lighting

•  Single-key ADP Encryption

•  IP68 submersion (2 meters, 4 hours)

IMPRES Battery

•  ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 NO. 213-15, Nonincendive Electrical Equipment for Use in Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G; Class III, Division

ADAPTIVE AUDIO ENGINE

• 3 Watt Speaker with Adaptive Equalization

• Adaptive Dual-sided Operation

• Adaptive Noise Suppression Intensity

• Adaptive Gain Control

• Adaptive Windporting PROGRAMMING

• Utilizes Windows 7 & 8 Customer Programming Software (CPS) with Radio Management OPTIONAL FEATURES

•  WiFi 802.11 b/g/n

•  RFID Volume Knob

•  Multikey for 128 keys and multi-algorithm

•  Programming Over Project 25 (OTAP)

•  Over the Air Rekey (OTAR)

•  Digital Tone Signaling

•  P25 Authentication

•  Man Down Sensor



2. Specifications

GENERAL SPECIFICATIONS

Channel Capacity

3000(model 3.5)

Frequency

764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz

FLASHport Memory

2 GB

Maximum Frequency Separation

Full Bandsplit

Audio Response1

+1, -3 dB

Rated RF Output Power Adj1

700 MHz: 1-2.5 Watts ;800 MHz: 1-3 Watts ; VHF:1-6Watts; UHF:1-5Watts

Dimensions (HxWxD)

Li-Ion IMPRES UL2054 DIV 2 Rugged 3400 mAh IP68** 3.4” x 2.3” x 1.7”

Weight

6.5 oz

Display (Model 3.5)

Top display plus: Full bitmap color LCD display 4 lines of text x 14 characters 2 lines of icons 1 menu line x 3 menus White backlight

Keypad

Backlit keypad 3 soft keys 4 direction navigation key 4x3 keypad Home and Data buttons

RECEIVER

Frequency Range/Bandsplits

764-776 MHz; 851-870 MHz; 136-174 MHz; 380-520 MHz

Channel Spacing

25/20/12.5 kHz

Maximum Frequency Separation

Full Bandsplit

Audio Output Power at Rated/Max

3 Watt/5 Watt

Selectivity (25 kHz / 12.5 kHz)1, 5

79 dB / 72 dB; 78 dB / 72 dB ;82 dB / 77 dB ;80 dB / 74 dB

Intermodulation Rejection1

81 dB ;80 dB; 82 dB; 80 dB

Audio Distortion at Rated

1.2% ;1.3%; 1.3%; 1.2%

Spurious Rejection1

98 dB ;98 dB; 92 dB; 98 dB

ENCRYPTION

Supported Encryption Algorithms ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Encryption Algorithm Capacity

8

Encryption Keys per Radio

Module capable of storing 1024 keys.Programmable for 128 Common Key Reference (CKR) or 16 Physical Identifier (PID)

GPS/GNSS SPECIFICATIONS

Constellations GPS & GLONASS

Water and Dust Intrusion

IP68 (2 meters, 4 hours)

TRANSMITTER

Frequency

 764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz

Channel Spacing

 25/20/12.5 kHz

Power Output : 700 MHz: 1-2.5 Watts 800 MHz: 1-3 Watts ; VHF: 1-6 Watts ,UHF :1-5Watts

1-6 Watts 1-5 Watts

1-6 Watts 1-5 Watts 1-5 Watts
