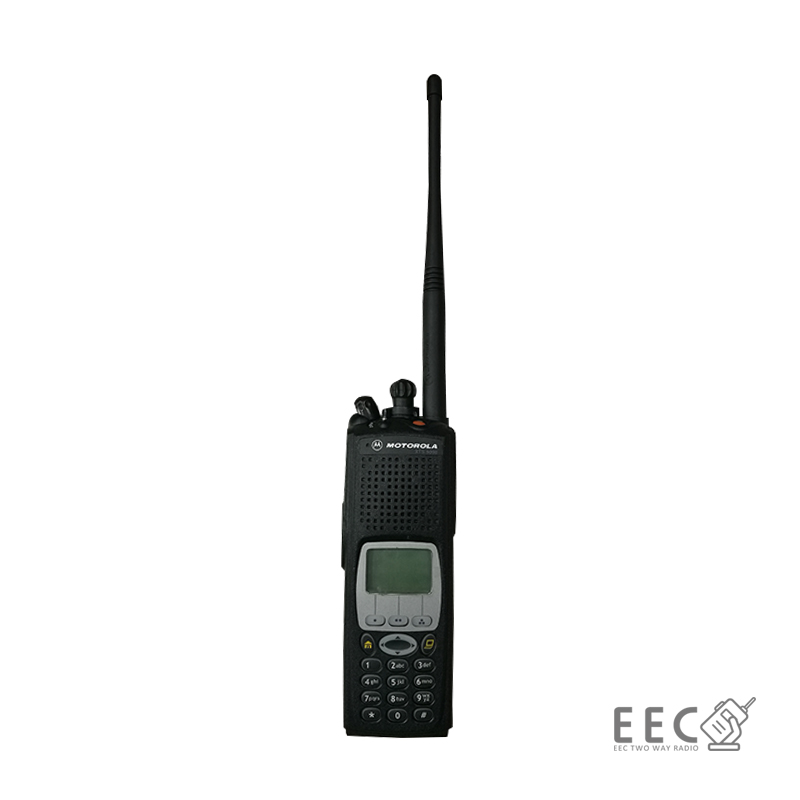

ASTRO XTS 5000 Digital Portable Radio Motorola P25 XTS5000

Frequency Range: VHF:136-174; UHF :403--470Mhz, 450-512 MHz; 764-870Mhz
Storage Channel: 1000(Model 3)
Dimensions: 6.58” x 2.44”x1.83”
weight: 12.5 oz


1. Features

The XTS 5000 Project 25 Digital Radio is the toughest and most interoperable radio Motorola makes. It assures seamless, high quality communication in a robust design that stands up to the most demanding environments.

Motorola’s IP-enabled portable two-way performer offers a full array of sophisticated features and progressive technology. Designed specifically for law enforcement, firefighters, emergency medical, military and federal agencies, the XTS 5000 digital portable radio is the preferred tool of life-saving professionals.


GPS enabled using GPS Radio Speaker Microphone

Available in the 700/800 MHz, VHF, UHF R1 and R2 bands

Trunking standards supported: clear or digital encrypted APCO P16 and APCO P25

Capable of SmartZone®, SmartZone Omnilink, SmartNet®, and Conventional System  Configurations and ASTRO®25 Trunked Operation

Narrow and wide bandwidth digital receiver (12.5 kHz / 25 kHz)

Embedded digital signaling (ASTRO & ASTRO 25)

Enhanced audio features

• High quality, error corrected digital voice

• Noise Shield™ Enhanced Noise Reduction Software

• Audio Gain Control Convenience Features

• Time / Date

• Digital Caller ID

Ruggedized housing option available in traditional black or public safety yellow

Enhanced encryption capability (optional)

Utilizes Windows®-based Customer Programming Software (CPS)

• Supports USB and RS-232 communications

• Built in FLASHport™ support Meets Applicable Mil Specs 810C, D, E and F

XTS 5000 VHF is now approved for FCC Rule Part 80, Maritime Services Compatible with most MTS and XTS accessories Interchangeable display labels

MODEL III: Same as XTS Model I features plus the following:

1000 channels Dial from pre-stored lists or free-form entry Programmable soft keys for easy access to radio menu Backlit Keypad

• 3 soft keys

• 3 navigation keys

• 4 x 3 keypad Full Bitmap Display

• 2 lines of icons

• 4 lines of text with 12 characters per line

• Status icons including battery and power indicator

2. Specifications


Battery life (based on a 5/5/90 duty cycle)

8 hours — High capacity NiCD; 10 hours — High capacity NiMH

Frequency band

VHF, UHF, 700 MHz, 800 MHz

Coverage area

Programming software allows adjustable power output for varying coverage



Encryption type /Algorithms

Advanced Digital Privacy (ADP)

Frequency range

764-870 MHz; VHF - 136-174 MHz; UHF - 403-470 MHz, 450-520 MHz

Standard battery chemistry type

Nickel Cadmium, Nickel Metal Hydride


1–3W—700/800 MHz, 1–5W—UHF, 1–5W—VHF

Standard battery chemistry type

Nickel Cadmium, Nickel Metal Hydride

physical characteristics

Dimensions H x W x D (with standard battery)

6.58” x 2.44”x1.83” H x W x D


Full Display
