Motorola

  • Digital Analog Motorola VHF UHF Walkie Talkie DP1400
  • Digital Analog Motorola VHF UHF Walkie Talkie DP1400
  • Digital Analog Motorola VHF UHF Walkie Talkie DP1400
  • Digital Analog Motorola VHF UHF Walkie Talkie DP1400
Digital Analog Motorola VHF UHF Walkie Talkie DP1400Digital Analog Motorola VHF UHF Walkie Talkie DP1400Digital Analog Motorola VHF UHF Walkie Talkie DP1400Digital Analog Motorola VHF UHF Walkie Talkie DP1400

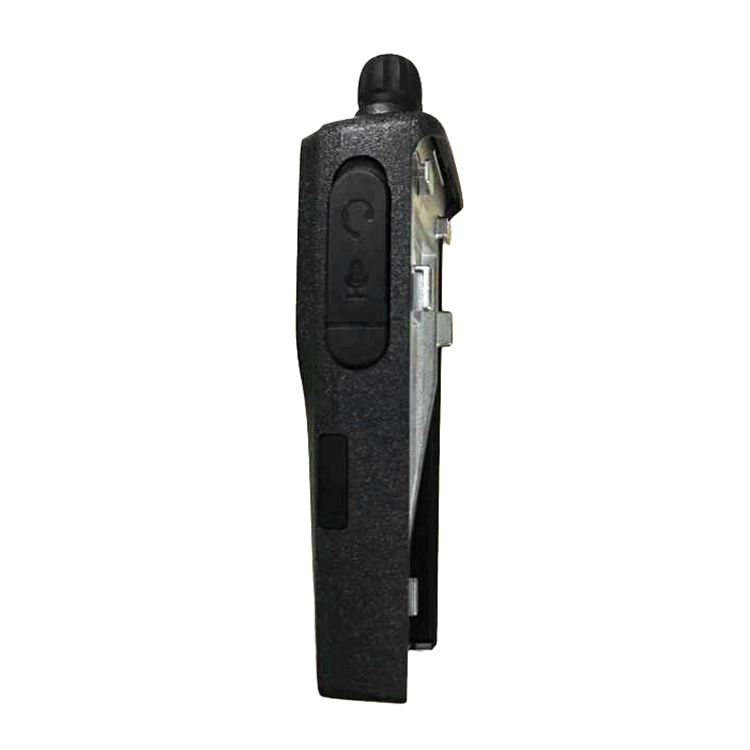

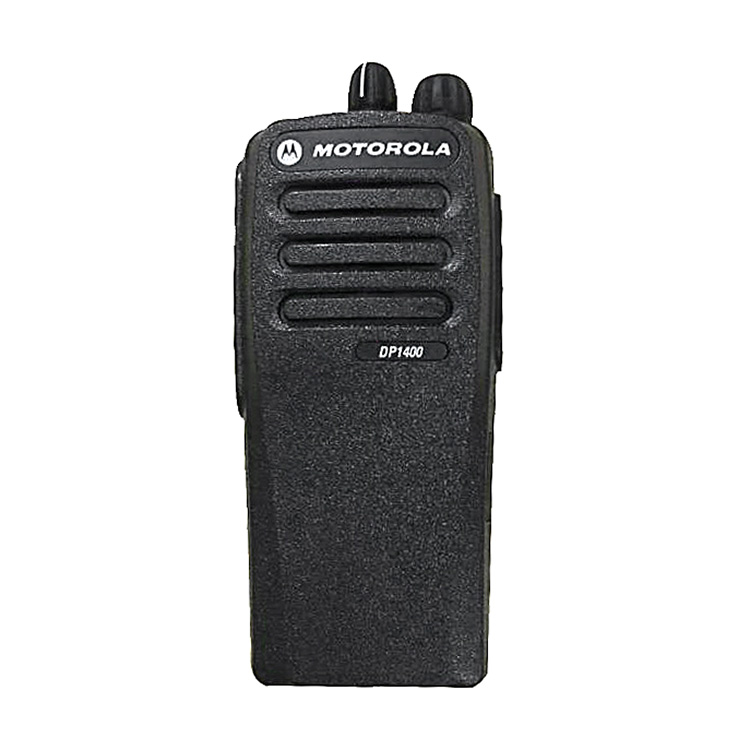

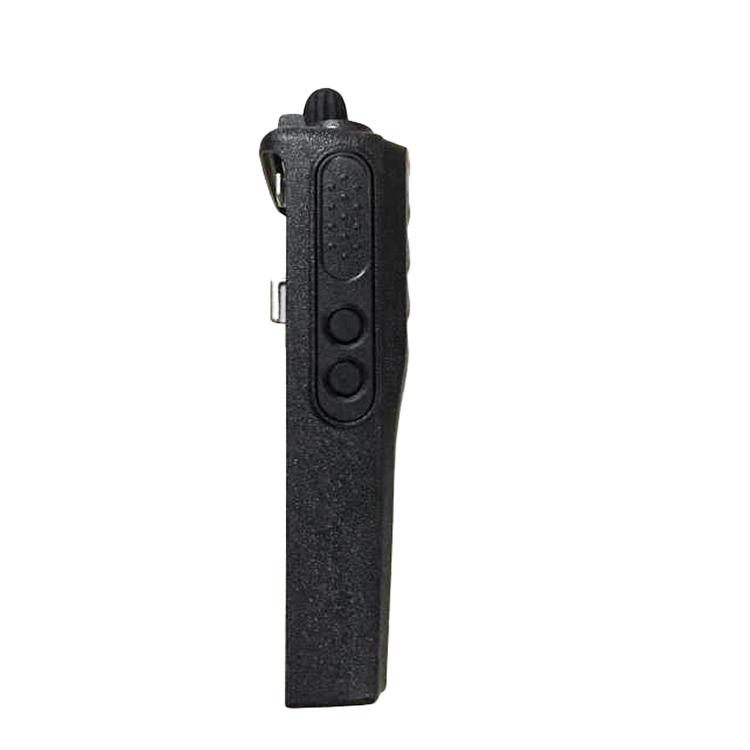

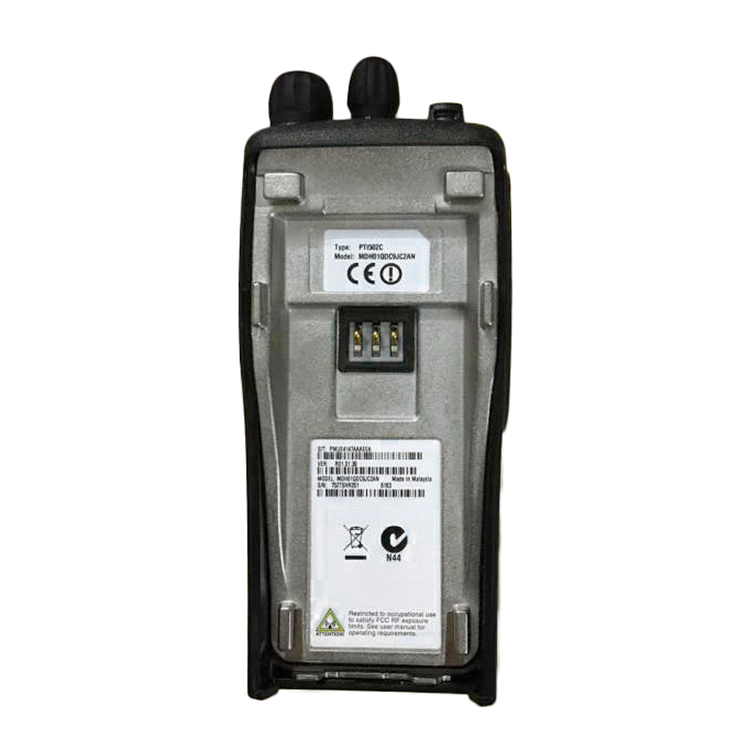

Digital Analog Motorola VHF UHF Walkie Talkie DP1400

  • Frequency Range: VHF 136-174Mhz, UHF403-470Mhz
  • Storage Channel: 16
  • Weight: 406g
  • Dimensions: 127.7x61.5x39 mm
  • Description: Motorola Digital Two Way Radio Motorola DP1400 Different model for different region: NA: CP200D AS: XIR P3688 LA: DEP450
  • INQUIRY   EMAIL


1. Features

CONNECT AND COORDINATE CREWS

When you need a simple, reliable, cost-effective communication solution to help multiple work crews connect, coordinate and collaborate, DP1400 two way portable radios are made to get the job done right. With their easy-to-use ergonomics and crisp, clear audio, now your teams can work more efficiently. Unleash the power of your DP1400 radios with Motorola Original® accessories. They’re the only accessories designed, built and tested with your radio to optimize its performance. (See separate accessory fact sheet for full portfolio).

IMPROVE THE WAY THEY WORK

A construction worker carries his DP1400 as an essential part of his toolkit. The digital technology gives him excellent coverage across the entire site. And it has significantly better battery life too, so he knows he’ll have reliable voice communications all day long. The manufacturing team in a parts factory relies on DP1400 portables to coordinate operations. The digital noise-cancelling software filters out the worst of the background noise, allowing them to hear clearly over loud machinery. Factory capacity is expanding, so they’re running MOTOTRBO Dual Capacity Direct Mode, which can fit twice as many calls into the same spectrum. A security guard uses his DP1400 to alert the control room to some suspicious activity. The radio’s intuitive design is easy to use in the dark, and even when he speaks softly, he knows that the digital AGC (Automatic Gain Control) will automatically boost the volume so he’s heard clearly back in the office. And if it comes to the worst, he can use one of the programmable side buttons to call for help – with one touch.


MANAGE YOUR FLEET MORE EFFICIENTLY

We’ve designed the DP1400 to be as efficient to operate as it is cost-effective to buy. That’s why we’ve integrated the powerful fleet management capabilities of Motorola’s Radio Management solution into every radio. Gain even greater efficiency when you migrate to digital. Your radio will operate up to 40% longer than analog on the same battery – and you get twice the capacity from the same 12.5 kHz channel, using our Dual Capacity Direct Mode feature.

INTEGRATE YOUR DEVICES SEAMLESSLY

Make sure your new DP1400 radios are ready when you are. We can bring together the right experts and processes to help you integrate DP1400 radios into your business, quickly and cost-effectively. This includes Site Survey and Device Programming.


GET DURABILITY THAT ENDURES

The DP1400 is made to last. It is backed by a two-year standard warranty and a minimum one-year warranty for Motorola-branded accessories. It is rated IP54 (splashproof, virtually dustproof), so it can be used even in harsh environments. Moreover, the design has been proven tough in Motorola’s grueling Accelerated Life Test program, in which the radio must survive a simulated 5 years of hard service before it is accepted. You can be confident in the durability of your DP1400.


Features

•   Analog / Digital

•   Voice Communications

•   Dual Capacity Direct Mode

•   Digital Mobile Radio (DMR) Standards Compliant

•   Narrowbanding Compliant

•   IP54 Rated

OPTIONS

•   Radio Management Suite

•   Transmit Interrupt (decode only)



2. Specifications

Main Specifications

Channel Capacity

16

Power Output

VHF:1-5W              UHF:1-4W

Frequency Range

VHF:136-174MHz    UHF: 403-470MHz

Dimensions (HxWxL)

with 1400mAh NI-MH battery

with 1600mAh Li-ion battery

with 2200mAh Li-ion battery

127.7x61.5x42.0 (mm)

127.7x61.5x39.0 (mm)

127.7x61.5x44.0 (mm)

Weight

with 1400mAh NI-MH battery

with 1600mAh Li-ion battery

with 2200mAh Li-ion battery

406g

341g

346g

Power Supply

7.5V (theoretical data) ±20%

Battery

Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power

NiMH (1400mAh) Battery

Li-ion (1600mAh) Battery

Hi-Cap (2200mAh) Li-ion Battery

Analog: 9 hrs       Digital: 12.5 hrs

Analog: 10.5 hrs     Digital: 13.5 hrs

Analog: 14.5 hrs     Digital: 18.5 hrs

Receiver

Frequency

VHF:136-174MHz    UHF: 403-470MHz

Channel Spacing

12.5kHz / 20kHz / 25kHz

Frequency Stability (-30,+60,+25 Ref)

±0.5 ppm

Analogue Sensitivity (12dB SINAD)

0.3uV / 0.22uV (typical)

Digital Sensitivity (5% BER)

0.3uV / 0.19uV (typical)

Intermodulation

-70dB

Adjacent Channel Selectivity

45dB @ 12.5kHz / 70dB @ 20/25kHz

Spurious Rejection

-70 dB

Rated Audio

0.5W

Audio Distortion@ Rated Audio

5% (3% typical)

Hum and Noise

-40dB @ 12.5kHz / -45dB @ 20kHz/25kHz

Audio Response

TIA603D

Conducted Spurious Emisson

-57dBm

Transmitter

Frequency

VHF:136-174MHz    UHF: 403-470MHz

Channel Spacing

12.5kHz / 25kHz

Frequency Stability (-30, +60, +25 Ref)

±0.5 ppm

Power Output

VHF:1-5W              UHF:1-4W

Modulation Limiting

±2.5kHz @ 12.5kHz / ±4.0kHz @ 20kHz / ±5.0kHz @ 25kHz

FM Hum and Noise

-40dB @ 12.5kHz / -45dB @ 20/ 25kHz

Conducted/Radiated Emission

-36dBm<1GHz / -30dBm>1GHz

Adjacent Channel Power

60dB @ 12.5kHz / 70dB @ 20/ 25kHz

Audio Response

TIA603D

Audio Distortion

<3% (typical)

Digital Vocoder Type

AMBE +2

Digital Protocol

ETSI TS 102 361-1, -2, -3

Environmental Specifications

Operating Temperature

-30 / +60

Storage Temperature

-40 / +85

Temperature Shock

Per MIL-STD

Humidity

Per MIL-STD

Water and Dust Intrusion

IEC60529-IP54
