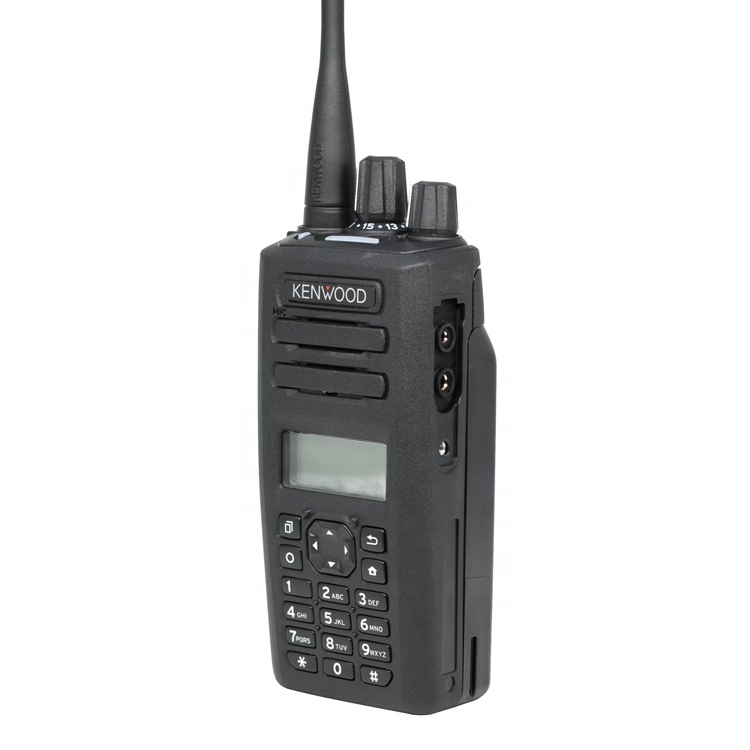

KENWOOD UHF DIGITAL TRANSCEIVER NEXEDGE WALKIE TALKIE NX3320 UHF

  • Frequency: UHF 400-520 MHz
  • Color: Black
  • Dimensions (HxWxD): 56 x 119.6 x 36.4 mm
  • Weight: 11.1 oz (315 g)
  • Description: This versatile handheld radio KENWOOD NX3320 UHF supports both NXDN and DMR digital protocols as well as mixed digital & FM analog operation, enabling it to serve with distinction in a wide range of e
  • INQUIRY   EMAIL

KENWOOD UHF DIGITAL TRANSCEIVER NEXEDGE WALKIE TALKIE NX3320 UHF


1. Features

Two configurations to choose from
Choose between two portable configurations – one without a numeric keypad and the other with numeric keypad (16-key model). Both styles feature the 4-way Directional-pad (D-pad) and 2-position lever switch.

7-color Light Bar Indicator on the top
Individual color can be set for each channel. The light bar is big enough to easily identify which channel the user is on.

Full Dot LCD & Backlit Color In White
Full-color, 1.74-inch color LCD Full Dots Matrix (168(W) x 65(H)dots, Monochrome) can display 4-Line Basic Frame and 5-Line Text Message Frame.

Active Noise Reduction (ANR) for suppressing ambient noise
KENWOOD’s advanced ANR technology performs complicated noise reduction, which normally requires two microphones for processing, using single microphone.

MIL-STD Environmental and Ingress Protection Standards
As a result, the portable radios complying with IP67* immersion standards offer max. 30 minutes protection at a depth of 1 meter, while the mobile radios comply with IP54/55 dust/water ingress protection standards. *Radio must equip 2PIN accessory cover.

Tough and Robust
Stringent test to develop tough radio withstanding harsh operational conditions.

Built-In Bluetooth
Hands-free operation is vital for many NX-3000 users. The radios’ built-in Bluetooth® module is compatible with Headset and Serial Port Profiles (ver. 3.0) and keeps your hands free.

GPS To Transmit Your Position
Featuring an integrated GPS module and antenna, NX-3000 portable radios can transmit positional data, enabling effective management when used with tracking applications like KAS-20 software. Mobile models can support GPS with the optional KRA-40G.

Encryption Equipped
Secure communications are an essential requirement, especially for public safety applications. NX-3000 radios are equipped with 56-bit key Data Encryption Standard (DES) encryption. For even higher protection the radios can support 256-bit Advanced Encryption Standard (AES) encryption with optional module.

Sensors For User Safety
Man-down Detection, Stationary Detection, or Motion Detection will be automatically engaged when the embedded acceleration and tilt sensors detect unusual behavior. Lone Worker function automatically places the radio in Emergency Mode if it is not operated for a certain period of time. The bright orange Emergency Button is located at the top (portables) or front (mobiles) of the radio for high visibility and instant access when needed.

2. Specifications


GENERALNX-3220NX-3320NX-3420
Frequency Range136-174 MHz
400-520 MHz
TX/RX: 851-870, 935-941 MHz
TX:806-825, 896-902 MHz
Max. Channels Per RadioUp to 1000 CH with option
Number of Channels260 (64 for no LCD models)
Number of Zones128 (4 for no LCD models)
Channel SpacingAnalog12.5/15/25*/30* kHz12.5/25* kHz12.5/25* kHz
Digital6.25 kHz/12.5 kHz6.25 kHz/12.5 kHz6.25 kHz/12.5 kHz
Power Supply7.5 V DC +-20 %
Battery Life 5-5-90(FDMA conventional / Trunking. TDMA Conventional / Trunking)KNB-55L (1,480 mAh)8.5 / 6.5 hours, 12.5 / 9 hours9 / 7 hours, 12 / 9 hours
KNB-56N (1,400 mAh7.5 / 6 hours, 11 / 8 hours8 / 6 hours, 10.5 / 8 hours
KNB-57L (2,000 mAh)12 / 9.5 hours, 17.5 / 13 hours13 / 10 hours, 17 / 13 hours
KNB-78L (2,860 mAh)17.5 / 13.5 hours, 25 / 18.5 hours18.5 / 14 hours, 24 / 18.5 hours
KNB-79LCM (2,860 mAh)15 / 11.5 hours, 21.5 / 16 hours15.5 / 12 hours, 20.5 / 16 hours
Operating Temperature-22ºF to +140ºF (-30ºC to +60ºC)
Frequency Stability±0.5 ppm (-30°C to +60°C; +25°C Ref.)
Dimensions (W x H x D) Projections Not IncludedRadio only2.20 x 4.71 x 1.43 in (56 x 119.6 x 36.4 mm)
With KNB-55L2.20 x 4.71 x 1.43 in (56 x 119.6 x 36.4 mm)
With KNB-56N2.20 x 4.71 x 1.68 in (56 x 119.6 x 42.7 mm)
With KNB-57L2.20 x 4.71 x 1.53 in (56 x 119.6 x 39 mm)
KNB-78L, KNB-79LCM2.20 x 4.71 x 1.77 in (56 x 119.6 x 44.9 mm)
WeightRadio only7.8 oz (220 g)
KNB-55L (1,480 mAh)11.1 oz (315 g)
KNB-56N (1,400 mAh)14.5 oz (410 g)
KNB-57L (2,000 mAh)12.0 oz (340 g)
KNB-78L, KNB-79LCM
13.6 oz (385 g) / 13.9 oz (395 g)
FCC IDK44479000K44479100K44502500
IC Certification282F-479000282F-479100282F-502500


RECEIVERNX-3220NX-3320NX-3420
SensitivityNXDN® 6.25 kHz Digital (3% BER)0.20 μV
NXDN®12.5 kHz Digital (3% BER)0.25 μV
DMR 12.5 KHz Digital (5% BER)0.30 µV
DMR 12.5 KHz Digital (1% BER)0.45 µV
Analog (12dB SINAD)0.25 µV
SelectivityAnalog @ 12.5 kHz65 dB60 dB
Analog @ 25 kHz72 dB70 dB
Intermodulation70 dB
Spurious Rejection70 dB
Audio Distortion3%
Audio Output Power500 mW/8Ω (3% Distortion) / 1,000 mW/8Ω (5% Distortion)
TRANSMITTERNX-3220NX-3320NX-3420
RF Power Output
(High / Mid / Low)
5 W/4 W/1 W3 W / 1 W
Spurious Emission-70 dB
FM Hum & NoiseAnalog @ 12.5kHz40 dB
Analog @ 25kHz45 dB
Audio DistortionLess than 3%
Digital ProtocolETSI TS 102 361-1, -2, -3, -4
Emission Designator16K0F3E*, 14K0F3E**, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W,
7K60FXD, 7K60FXE, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D


3. Shipping Terms



4 . Payment Terms


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
