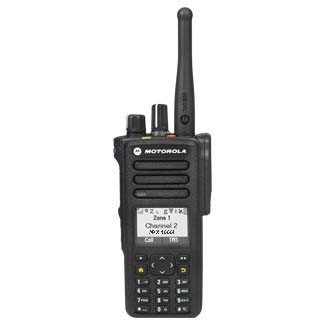

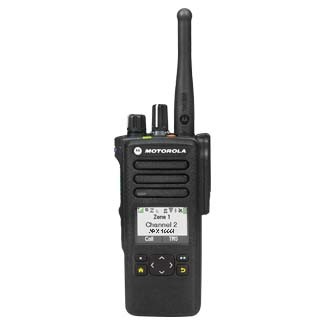

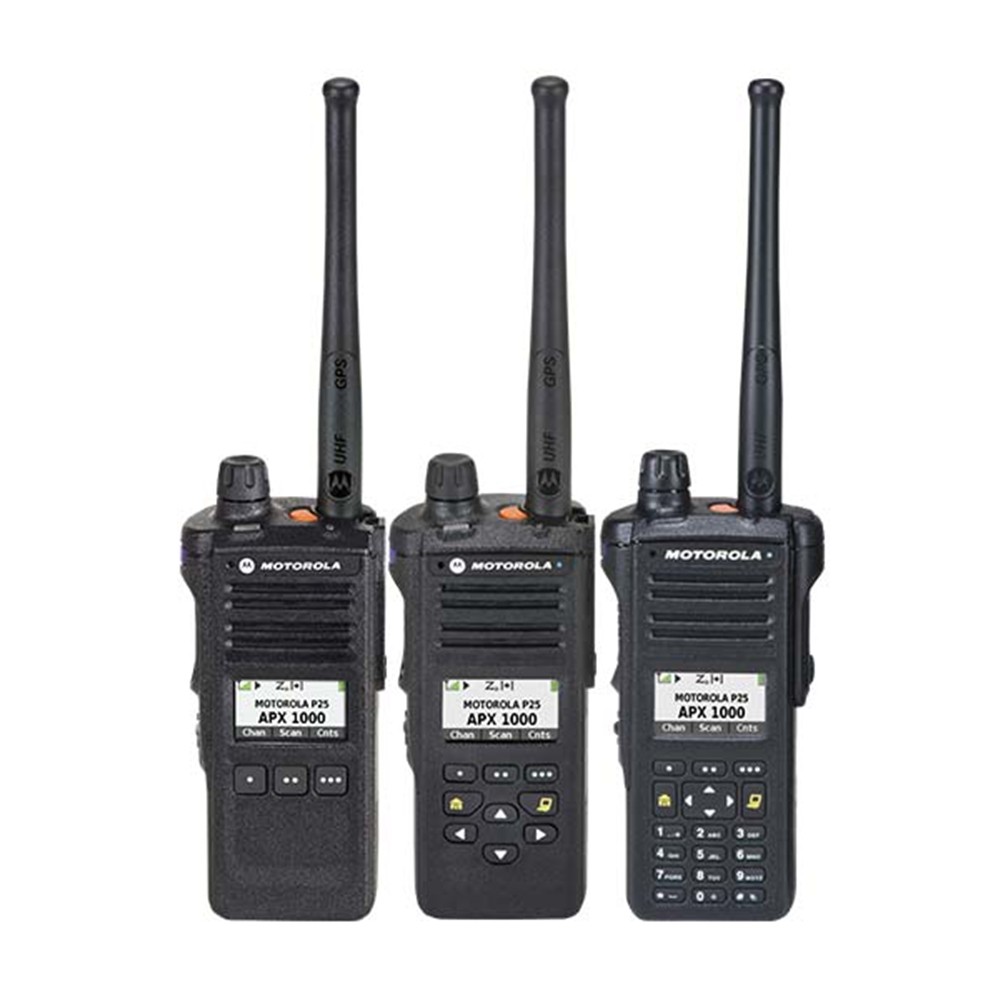

MOTOROLA SINGLE BAND P25 PORTABLE RADIO APX1000i

Frequency Range: 700/800MHZ; VHF 136-174MHz; UHF Range 1: 380-480MHz; UHF Range 2:450-520MHz
Channel Capacity: 512
Dimensions (HxWxD): 130 x 55 x 36MM
Weight: 315 g

MOTOROLA SINGLE BAND P25 PORTABLE RADIO APX1000i

The APX 1000i is designed for government services and organizations who need essential communication at an affordable price. It delivers great core features, with an efficiency-focused design – including Bluetooth® wireless connectivity.

A great radio calls for great support, so we’re also introducing Device Management Services for your APX fleet. Whether you need complete ongoing maintenance, or just a little help with provisioning, we have the service package that will suit your needs. You’ll get the right level of support for reliable and consistent communications, right across your organization.

1. Features

FEATURES AND BENEFITS

• Dual-Knob Solution

• Available in VHF, UHF (R1 and R2), and 700/800 MHz bands

• Modes of Operation:

• APCO P25 Conventional

• APCO P25 Phase 1 FDMA Trunking, Phase 2 TOMA Trunking

• SmartNet® , SmartZone®, SmartZone Omni link

• Narrow and wide bandwidth digital receiver (6.25 kHz equivalent / 12.5 kHz / 25 kHz)1

• Embedded digital signaling (ASTRO and ASTRO 25)

• Available in models 2 and 3

• Radio Profiles

• Unified Call List

• User-programmable Voice Announcement

• Meets Applicable MIL-STD-810C, D, E, F and G

• Full Portfolio of Accessories, including IMPRES batteries, chargers and audio devices2

STANDARD FEATURES

• Operational-Critical Wireless Bluetooth® 4.0 (LE)3

• Emergency Find Me

• ASTRO 25 Integrated Voice & Data

• Integrated GPS/GLONASS for Outdoor Location-Tracking

• Single-Key Advanced Digital Privacy (ADP) Encryption

• IP68 submersion (2 meters, 2 hours)

• IMPRES Battery (PMNN4491B)

• Text Messaging

• Software key

2. Specification

GENERAL SPECIFICATIONS
Channel Capacity	512
Frequency	700/800Mhz ; VHF: 136-174 MHz ; UHF R1 380-480MHz; UHF R2: 450-520 MHz
FLASHport Memory	2GB
Maximum Frequency Separation	Full Bandsplit
Audio Response1	+1, -3 dB
Rated RF Output Power Adj1	700 MHz: 1-2.5 Watts ;800 MHz: 1-3 Watts ; VHF:1-6Watts; UHF:1-5Watts
Dimensions (HxWxD)	130 x 55 x 36MM(With Standard Battery PMNN4491)
Weight	315g
Display	Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 2 menus, White backlight
Keypad (Model3)	Backlit keypad, 2 soft keys, 4-direction navigation key, 4x3 keypad, Home and Back buttons buttons
RECEIVER
Frequency Range/Bandsplits	700/800Mhz ; VHF: 136-174 MHz ; UHF R1 380-480MHz; UHF R2: 450-520 MHz
Channel Spacing	25/20/12.5 kHz
Maximum Frequency Separation	Full Bandsplit
Audio Output Power at Rated/Max	3 Watt/5 Watt
Selectivity (25 kHz / 12.5 kHz)1, 5	79 dB / 72 dB; 78 dB / 72 dB ;82 dB / 77 dB ;80 dB / 74 dB
Intermodulation Rejection1	81 dB ;80 dB; 82 dB; 80 dB
Audio Distortion at Rated	1.2% ;1.3%; 1.3%; 1.2%
Spurious Rejection1	98 dB ;98 dB; 92 dB; 98 dB
ENCRYPTION
Supported Encryption Algorithms ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm	ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm
Encryption Algorithm Capacity	8
Encryption Keys per Radio	Module capable of storing 1024 keys.Programmable for 128 Common Key Reference (CKR) or 16 Physical Identifier (PID)
GPS/GNSS SPECIFICATIONS	Constellations GPS & GLONASS
Water and Dust Intrusion	IP68 (2 meters, 4 hours)
TRANSMITTER
Frequency	700/800Mhz ; VHF: 136-174 MHz ; UHF R1 380-480MHz; UHF R2: 450-520 MHz
Channel Spacing	25/20/12.5 kHz
Power Output :	700 MHz: 1-2.5 Watts 800 MHz: 1-3 Watts ; VHF: 1-6 Watts ,UHF :1-5Watts
