Motorola Astro Walkie Talkie P25 Two Way Radio XTS2500

Frequency Range: VHF:136-174; UHF :403--470Mhz; 764-870Mhz
Storage Channel: 870(Model 3)
Dimensions: 275.84 x 58.42 x 38.1mm
weight: 11.0 oz


1. Features

Motorola XTS 2500 Digital Portable Radio When lives are at stake, a rapid, coordinated response is imperative. The XTS 2500 radio meets the Project 25 standard and works on the ASTRO® 25 Network. This high-performance radio delivers sophisticated features and advanced technology in a light, compact design. Whether en route or on site, this robust radio assures crisp, continuous, high-quality communication.

ASTRO 25 Network

Motorola’s ASTRO 25 Integrated Voice and Data Network provides an interoperable, Project 25 mission critical network that meets and exceeds public safety agency requirements for voice and data emergency response. This solution allows for efficient and reliable inter-agency communications helping responders to communicate, coordinate and interoperate together as one.

Uncompromising Durability

+ Meets applicable Military Specifications 810, C, D, E and F.

+ Offered with an intrinsically safety option certified by Factory Mutual Approvals (FM) for use in  hazardous classified areas.

+ Advanced elements borrowed from top of the line XTS® 5000 portable radio provide optimal protection against water intrusion from blowing rain by taking advantage of redundant seals.

+ With the MacroBlend housing material, it’s designed to survive severe shock and vibration,  exposure to damaging environments such as salt fog, UV radiation, dust and electrostatic  discharge making your radio one tough performer.

Immersible Option

The XTS 2500I portable radio has an IP67 rating making the radio dust proof and temporarily immersible to a depth of up to 1 meter for 30 minutes without ingress of water, helping to ensure your radio operates under adverse conditions.

Encryption Capability

The XTS 2500 portable radio offers single algorithm hardware encryption that supports DES, DES-OFB, DES-XL, AES, as well as Motorola’s software encryption ADP (Advanced Digital Privacy) to help prevent scanners and unwanted listeners.

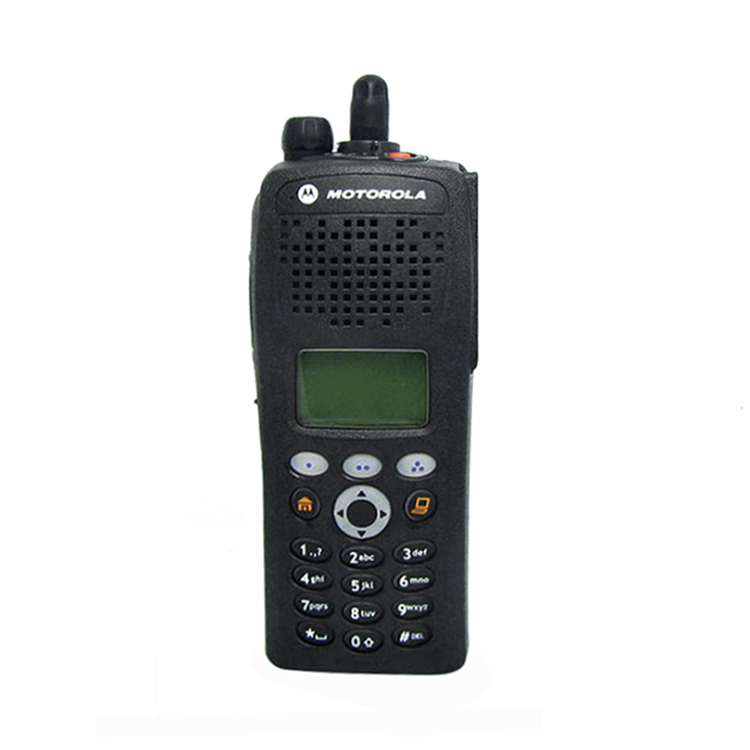

A. 16-position easily selectable rotary knob

B. Power On / Off volume control

C. Three programmable side buttons for quick access to pre-programmed functions

D. Ergonomically recessed PTT

E. Home button

F. Indentions for grip assistance

G. Three software programmable menu buttons

H. Six line twelve character full bitmap high resolution display. Two lines of icons including:  RSSI, battery gauge, user time clock

I. Top mounted speaker so not to muffle the audio integrity of the radio in holster

J. Emergency top button – easy to locate by following antenna

2. Specifications


Battery life (based on a 5/5/90 duty cycle)

8 hours — High capacity NiCD; 10 hours — High capacity NiMH

Frequency band

VHF, UHF, 700 MHz, 800 MHz

Coverage area

Programming software allows adjustable power output for varying coverage



Encryption type /Algorithms

Advanced Digital Privacy (ADP)

Frequency range

764-870 MHz; VHF - 136-174 MHz; UHF - 403-470 MHz, 450-520 MHz

Standard battery chemistry type

Nickel Cadmium, Nickel Metal Hydride


1–3W—700/800 MHz, 1–5W—UHF, 1–5W—VHF

Standard battery chemistry type

Nickel Cadmium, Nickel Metal Hydride

physical characteristics

Dimensions H x W x D (with standard battery)

10.86 x 2.3 x 1.5 in. (275.84 x 58.42 x 38.1 mm) H x W x D


Full Display
