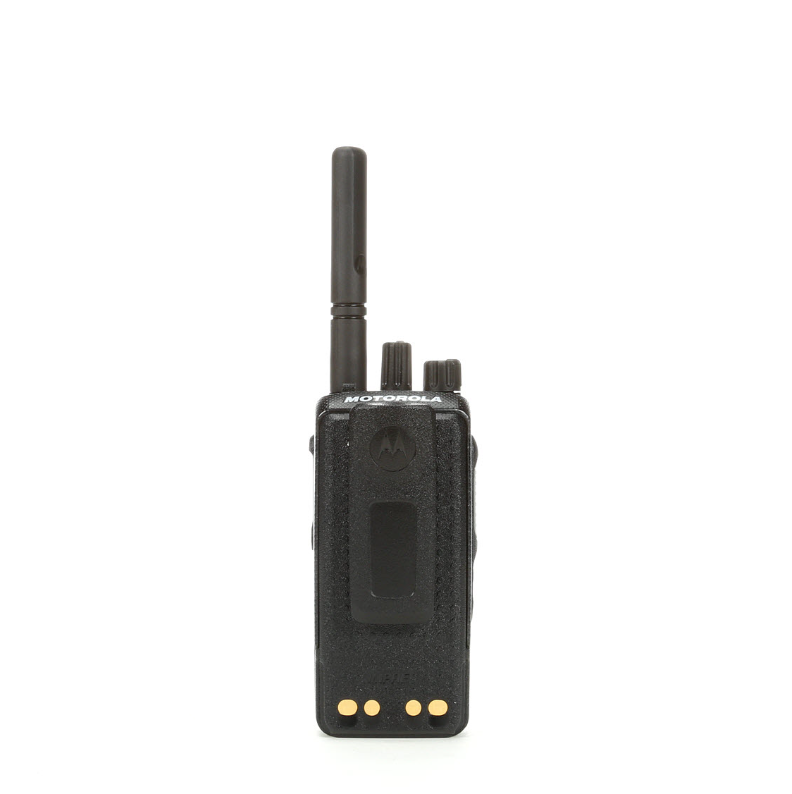

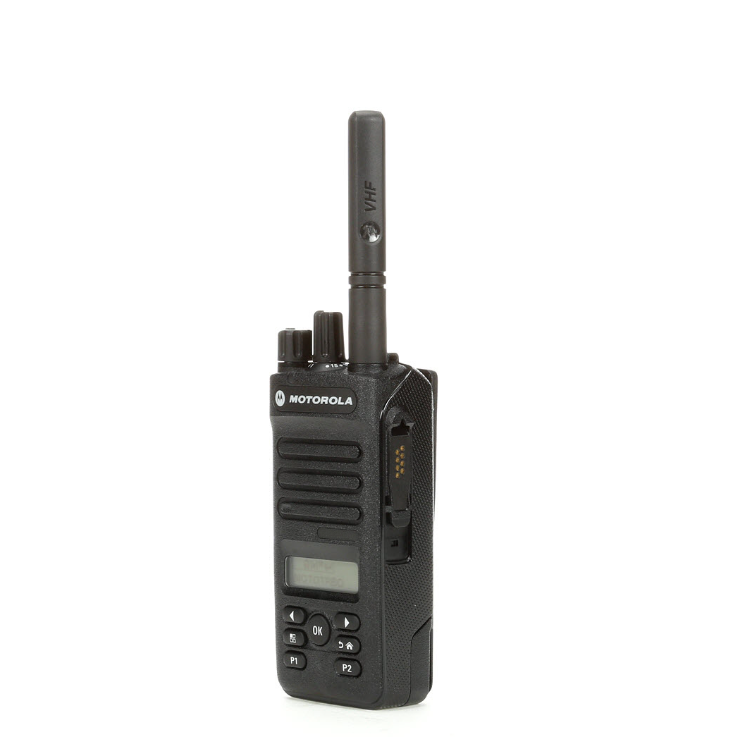

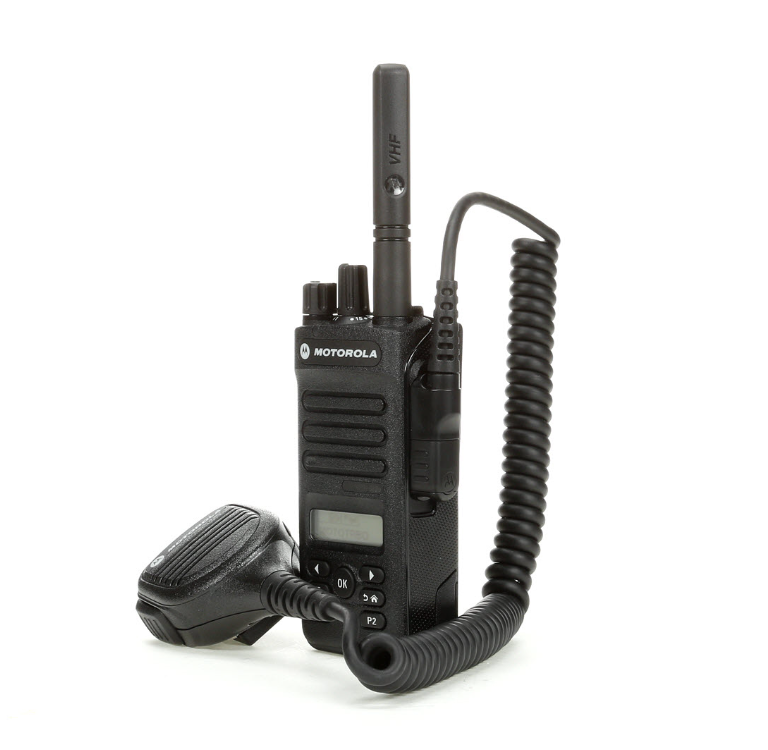

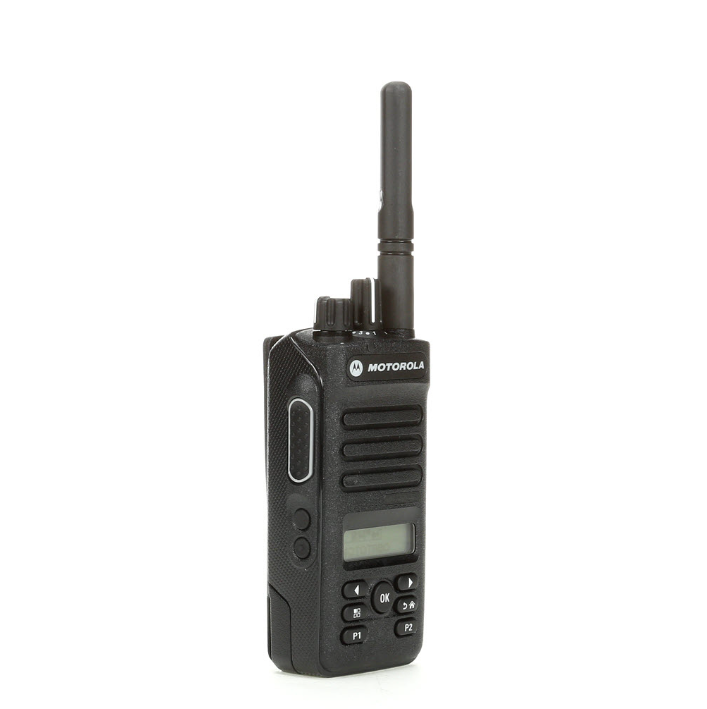

Motorola Digital Handheld UHF Radio XPR3500E

Frequency Range: VHF 136-174MHz; UHF 403-527 MHz
Storage Channel: 256 Channels
Dimensions: 122 x 56 x 36 mm
Weight: 264g

EMAIL

1. Features


With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient.  The XPR3000E Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.


CONNECTED

The MOTOTRBO XPR3000E Series is a family of DMR-standard  digital radios that delivers operations-critical voice communications. With support for basic trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.

SAFE

The XPR3000E Series is designed to improve safety in your organisation, with the rapid response capability of instant push-to-talk communications. Even if a worker is unresponsive, you can remotely activate the radio to check that your worker is safe. Radios can be remotely disabled if they are misplaced. New HazLoc models are available for use in areas where flammable or explosive materials are present.

EFFICIENT

With new noise cancellation technology and enhanced clarity, the XPR3000E Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology provides the battery option which delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximise battery lifetime. An improved receiver boosts range, allowing you to reach further than ever.


WHAT’S NEW IN THESE NEXT GENERATION RADIOS

• Over-the-air software updates

• Enhanced audio quality

• Improved expandability

• Better battery life (up to 28 hours)

• Better range

• Better waterproofing (IP67)

• HazLoc models available



2. Specifications


Main Specifications

Channel  Capacity

256

Power  Output

VHF:1-5W  / UHF:1-4W

Frequency  Range

VHF:136-174       UHF:403-527MHz

Dimensions  (HxWxL)

(with  1650 battery)

(with  2050mAh battery)

(with  3000mAh battery)

122x56x36  mm

122x56x36 mm

122x56x42 mm

Weight

(with  3000mAh Li-ion battery)

292g

Power  Supply

7.5V

Battery

Average  battery life at 5/5/90 duty cycle with battery saver enabled in carrier  squelch and transmitter in high power

1650 mAh  battery

Digital/Analog:  VHF(16/11.5 hrs)

350-400/UHF:(15/11.5)

2050mAh battery

                        350-400/UHF:(18.5/14)

3000mAh battery

                        350-400/UHF:(27.5/21)

Receiver & Transmitter

Frequency

VHF:136-174MHz <span style="font-size:9.0pt;font-family:" &color:black;background:white;"="">350-400MHz

UHF:403-527MHz

Channel  Spacing

12.5kHz  / 25kHz

Frequency  Stability (-30,+60,+25 Ref)

+/-0.5  ppm

FM Hum  and Noise

-40dB @  12.5kHz / -45dB @ 25kHz

Conducted/Radiated  Emission

-36dBm<1GHz / -30dB>1GHz

Adjacent  Channel Power

60dB @  12.5kHz / 70dB @ 25kHz

Audio  Response

TIA603D

Audio  Distortion

3%

Digital  Vocodor Type

AMBE+2

Digital  Protocol

ETSI TS  102 361-1,-2,-3

Environmental Specificaitons

Operating  Temperature

-30 / +60

Storage  Temperature

-40 /+85

Water  and Dust Intrusion

IEC60529-IP67
