Motorola Digital Slim Walkie Talkie Mototrbo UHF Radio SL2K

Frequency Range: 403-470MHz; 450-512 MHz; 806-825 MHz, 851-870MHz
Storage Channel: 1000 Channels
Dimensions: 121*55*23MM
Weight: 174g

EMAIL

1. Features


With this dynamic evolution of MOTOTRBO digital two-way radios, you’re smarter, better connected and more productive. The SL2K Series is designed for the manager who needs complete control. With a slim and light form factor incorporating high performance integrated voice and data, these next-generation radios deliver smart connectivity to your organisation.

SMART

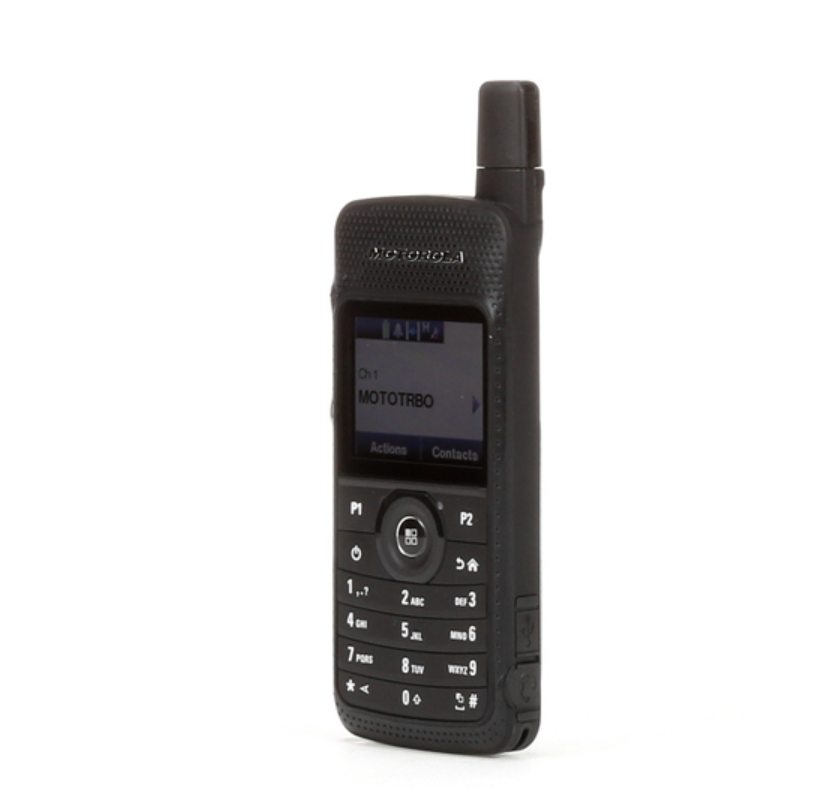

The MOTOTRBO SL2K Series is a family of DMR-standard slim and light portable radios that connects you with sophistication. Pocketsized and with a smooth outline, the radios feature a full keypad and 5-line colour screen with customisable display schemes. A built-in vibrate function alerts you quietly when you need to be discreet, and a comprehensive range of audio accessories allows you to stay connected without disturbing your customers.

CONNECTED

With integrated voice and data, the SL2K Series delivers operationscritical communications. Bluetooth® lets you talk without wires, while also enabling precise indoor location-tracking. Powerful audio and advanced noise cancellation ensure your call is heard, even in noisy environments, and 280-character text messaging simplifies complex communications. Integrated Wi-Fi enables remote software updates.

PRODUCTIVE

With a clear user interface designed to support productivity applications such as Work Order Ticketing, the SL2K Series helps your staff make the most of their work day. Voice Announcement and Text-to-Speech features allow you to monitor radio settings and text communications hands-free, and sophisticated scan functions keep you in touch with many teams at once.


WHAT’S NEW IN THESE NEXT GENERATION RADIOS

• Integrated accelerometer for optional Man Down

• Bluetooth® 4.0

• Indoor location tracking

• Integrated Wi-Fi

• Over-the-air software updates

• Upgraded audio for greater clarity at high volume

• Improved expandability

• Increased UHF transmitter power, for greater range


2. Specifications

GENERAL SPECIFICATIONS

Channel Capacity

1000

Frequency

403-470 MHz; 450-512 MHz; 806-825 MHz, 851-870MHz

Dimensions (HxWxL)

121 x 55 x 23 mm

Weight with battery:

174 g

Power Supply

3.7 V (Nominal)

Battery Life, Standard 2200 mAh Battery1

13.5 hrs

RECEIVER

Frequency

403-470 MHz; 450-512 MHz; 806-825 MHz, 851-870MHz

Channel Spacing

12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 0.5 ppm

Analogue Sensitivity

0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD);
0.4 uV (20 dB SINAD)

Digital Sensitivity

5% BER: 0.3 uV

Intermodulation

70 dB

Adjacent Channel Selectivity

60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz

Spurious Rejection

70 dB

Rated Audio

500 mW

Audio Distortion @ Rated Audio

3% (typical)

Hum and Noise

-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz

Audio Response

 +1, -3 dB

Conducted Spurious Emission

 -57 dBm

TRANSMITTER

Frequency

 136-174 MHz;403-512 MHz

Channel Spacing

 12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 1.5 ppm (DP3600)

Power Output

UHF

1-5 W

VHF

1-4W

4FSK Digital Modulation

12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W

FM Hum and Noise

-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz

Conducted / Radiated Emission

-36 dBm < 1 GHz;-30 dBm > 1 GHz

Adjacent Channel Power

-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz

Audio Response

+1, -3 dB

Audio Distortion

3%

Digital Vocoder Type

AMBE+2

Digital Protocol

ETSI-TS 102 361-1, 2 & 3

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

 -30° C / +60° C

Storage Temperature

-40° C / +85° C

Temperature Shock

Per MIL-STD

Humidity

Per MIL-STD

Water and Dust Intrusion

IP57, MIL-STD

Bluetooth

Version

4.0

Profiles   Supported

Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. (SPP), Motorola fast push-to-talk.

Devices  Supported

Radio supports 1 Bluetooth audio accessory and 1

Bluetooth data device simultaneously

Range

Class 2, 10 m

Wi-Fi SPECIFICATIONS

Standards Supported

IEEE 802.11b, 802.11g, 802.11n

Security Protocol Supported

WPA, WPA-2, WEP

Maximum Number of SSIDs

128
