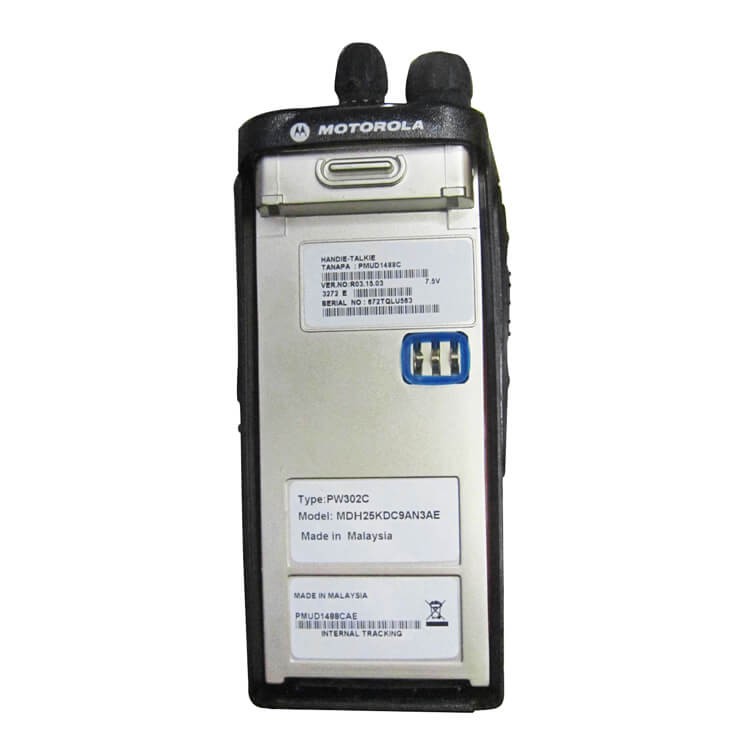

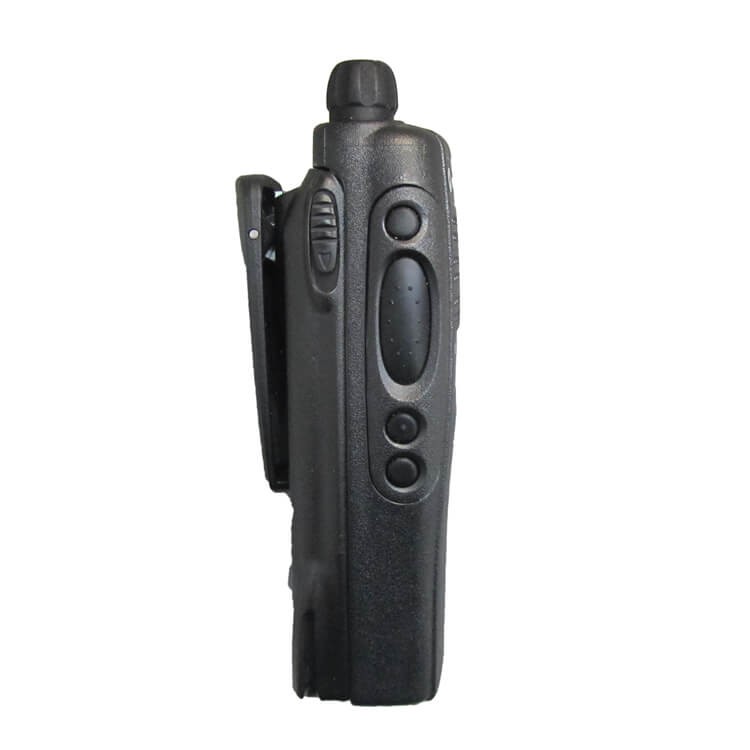

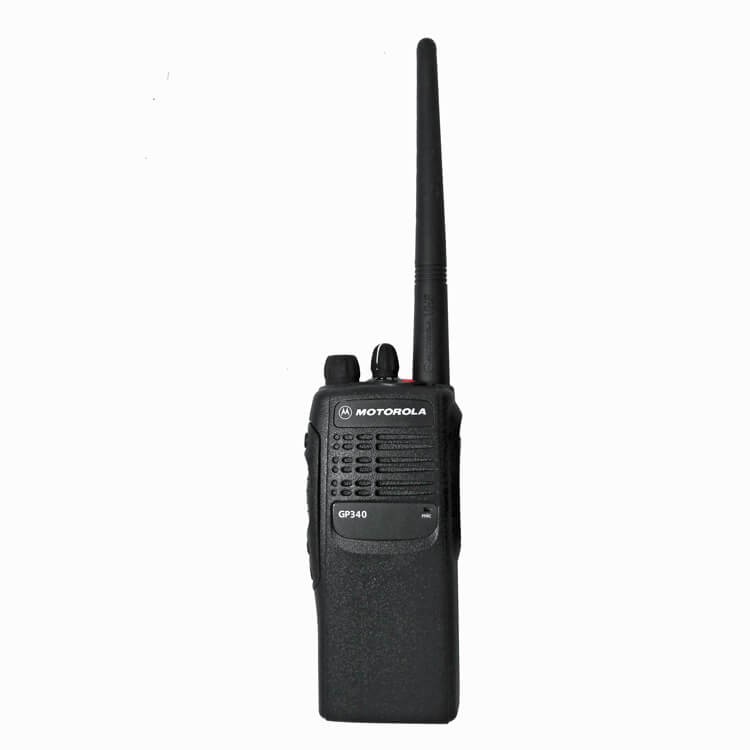

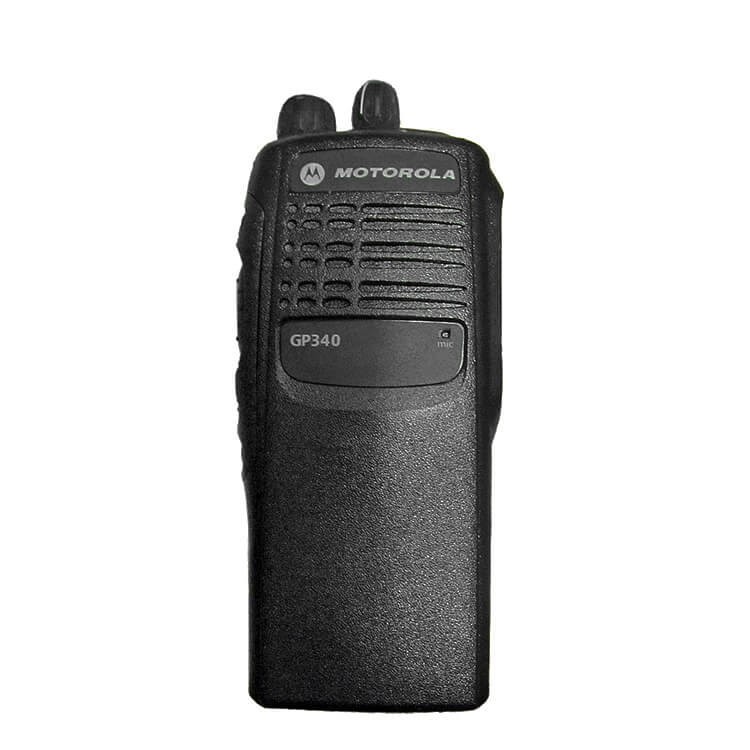

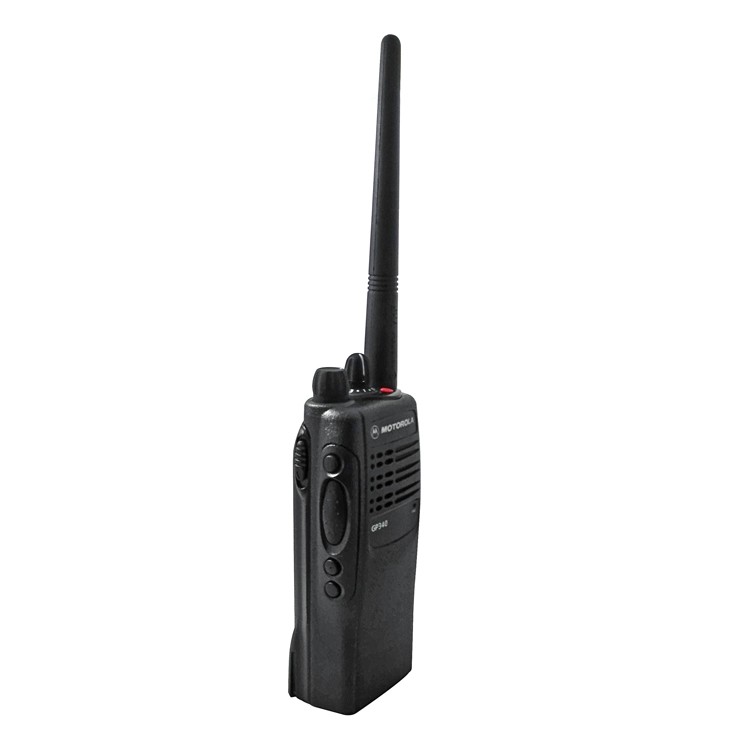

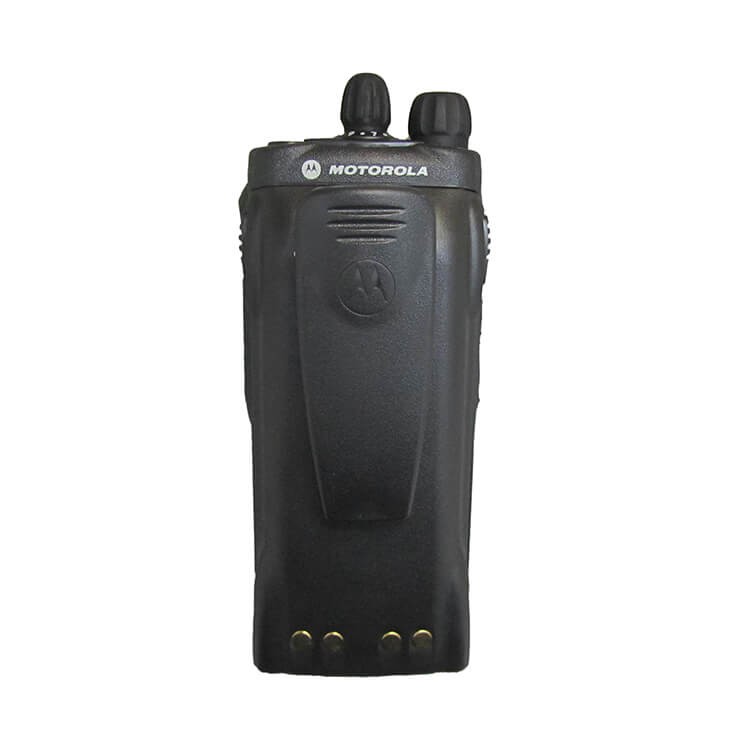

Motorola Handheld Radio GP340 Walkie Talkie 5KM Range

  • Frequency Range: VHF 136-174MHz; UHF 403-470MHz
  • Storage Channel: 16
  • Dimensions: 160*43*143mm
  • Weight: 420g included battery
  • Description: MOTOROLA ANALOGUE RADIO GP340, IP54, without keypad and display, HNN9008 Batteries, Earpieces
  • INQUIRY   EMAIL


1.Features

The GP340, one of the market-leading radios in Motorola’s Professional Series, is a simple communication solution for portable users requiring a high-quality radio. The GP340 keeps users in touch; increasing efficiency and productivity. The radio offers essential functionality and security features to protect users working alone or remotely.

Signalling

• Private Line™

• 5-tone selective signalling

Easy to use and set-up

• Programmable buttons for easy access to frequently used features

• Ruggedised design

Protecting users

• Emergency signalling

• Lone worker feature for staff working remotely

• Whisper mode for discreet communications

Quality

• MIL Spec 810 compliant

• Meets IP54 environmental standards

• Passed Motorola Accelerated Life Test

• X-Pand™ voice compression technology

Efficiency

• Channel scanning

• Call management features include call forwarding and escalating incoming call alert

Included as standard

• Battery • Antenna • Belt clip • Accessory dust cover • User manual

Accessory options

A wide range of accessory options are available to customise your radio

• Audio accessories

• Batteries and chargers

• Carry options



2.Specifications

Model Number

Motorola GP340

GENERAL SPECIFICATIONS

Band

 136-174MHz;403-470MHz

High Power Output

1-5W

 Channel Spacing

12.5/20/25 kHz

 Channel Capacity

 16

 Dimensions(HXWXD)

137 x 57.5 x 37.5mm

 Weight(Radio + Standard 1600mAh Battery)

 420g

 Digital/Analogue Battery Life(Standard 1600mAh   Battery)

 11.5 - 16.0hrs

 Power Supply(Nominal)

 7.5V

TRANSMITTER SPECIFICATIONS

 4FSK Digital Modulation

12.5 kHz Oata:7K60FID and 7K60FXD
12,5 kHz Voice:7K60FIE and 7K60FXE
Combination of 12,5 kHz Voice and   Data:7K60FIW

 Digital Protocol

 ETSI TS 102 361-1,-2,-3

 Conducted/Radiated Emissions(TIA603D)

 -36dBm<1GHz, -30dBm>1GHz

 Adjacent Channel Power

60dB(12.5KHz channel),

70dB(25KHz channel)

 Frequency Stability

±2.5 ppm

 AUDIO SPECIFICATIONS

 Digital Vocoder Type

 AMBE+2

 Audio Response

 TIA603D

 Rated Audio

 0.5 W

 Audio Distortion at Rated Audio

 3%

 Hum and Noise

 -40 dB (12.5 kHz channel), -45 dB (25 kHz channel)

 Conducted Spurious Emissions (TIA603D)

 -57 dBm

 ENVIRONMENTAL SPECIFICATIONS

 Operating Temperature

 -20 °C to +55°C

 Storage Temperature

 -40 °C to +85 °C

 Electrostatic Discharge

 IEC 61000-4-2 Level 4

 Dust and Water Intrusion

 IEC 60529 - IP67

 Packaging Test

 MIL-STD 810D and E
