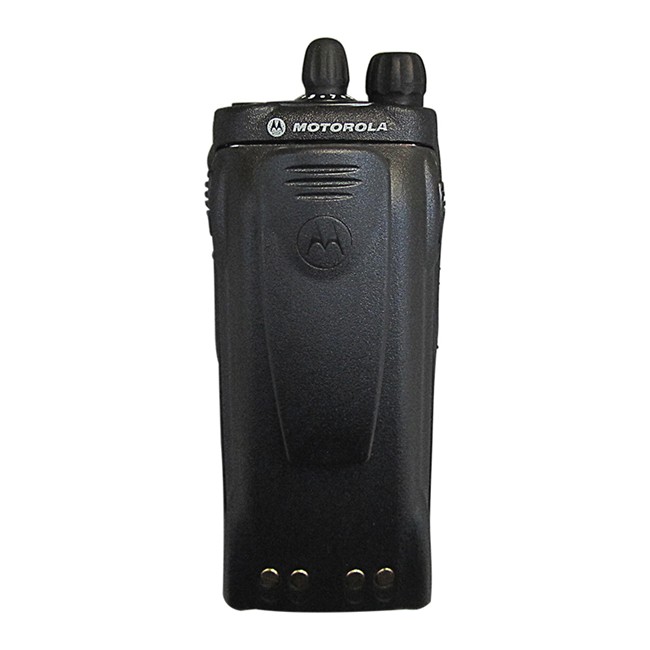

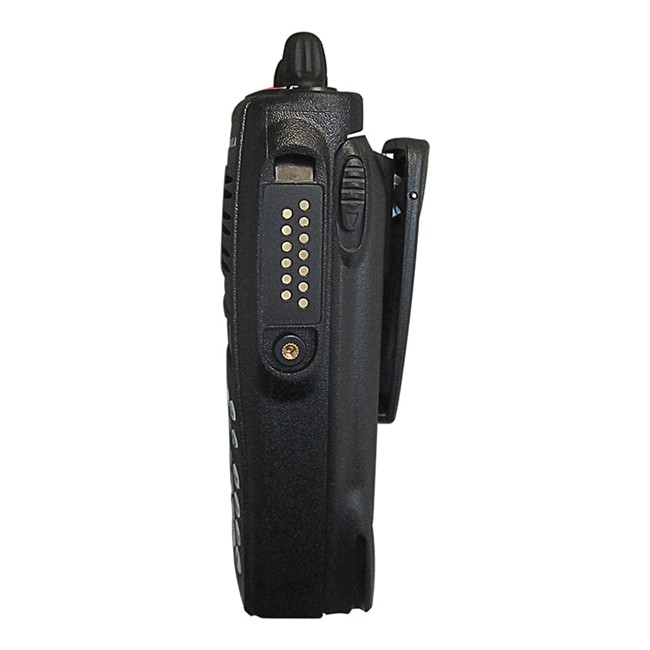

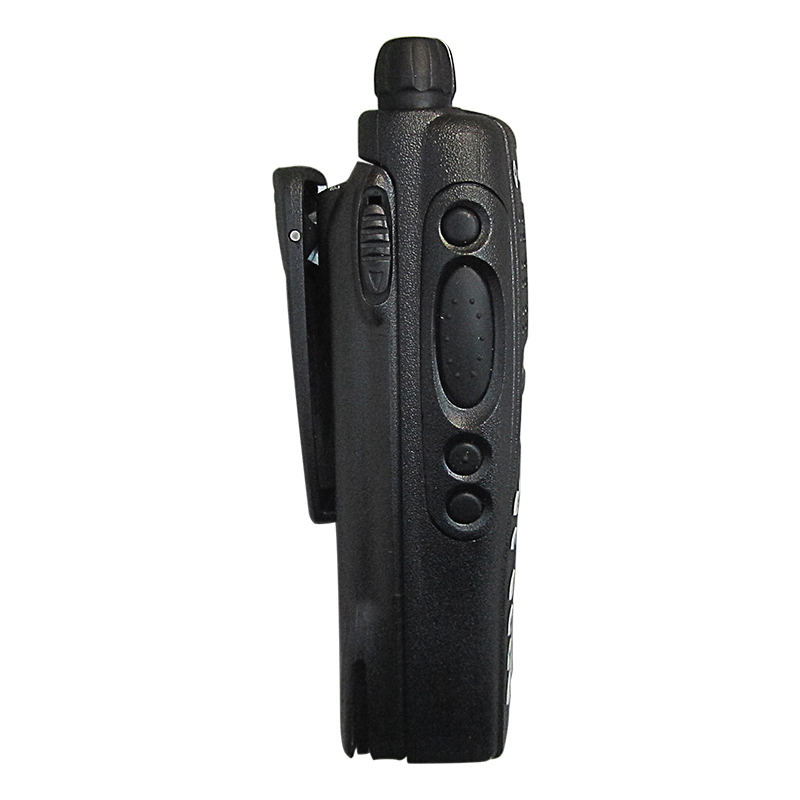

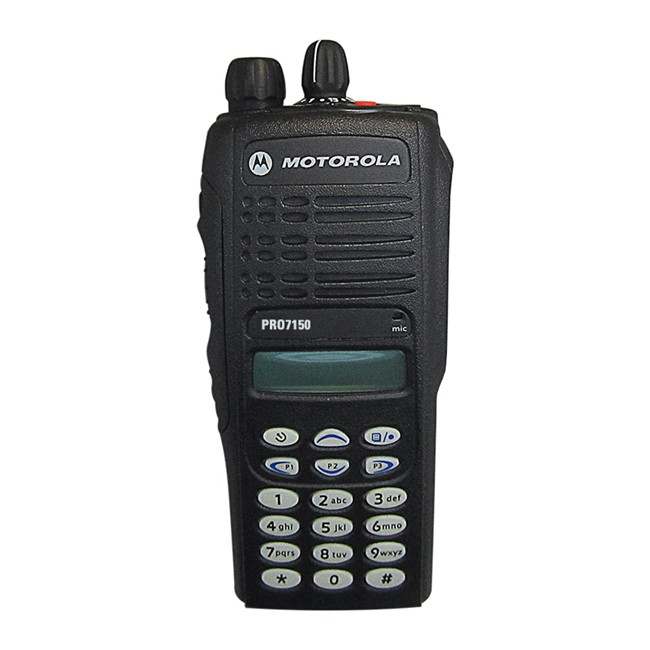

Motorola Handle Talky 128Ch Two Way Radio PRO7150

Frequency Range: VHF:136-174MHz; UHF1: 403-470MHz, UHF2 450-520MHz
Storage Channel: 128
Dimensions: 137 mm x 57.5 mm x 37.5 mm
Weight: 420g


1. Features


The radio software encompasses Private Line™ and MDC selective signalling.

Channel Scan

Allows activity on different communications channels to be monitored and answered.

X-Pand™ Voice Compression and Low Level Expansion

Crisp, clear and strong audio quality in virtually any noisy environment. Low level expansion allows further improvements in audio quality by reducing noise usually heard during pauses in conversation.

Voice Operated Transmit (VOX)

Hands free operation when used with VOX headset accessory.

Adjustable Power Levels

The radio output power has two settings - low power extends battery life and high power allows the radio to transmit over a greater distance.

Escalert Call Features

Escalating alert tone to alert user of incoming call. Starts at a very low level and increases until call answered.

Option Board Expandability

You can expand the existing capabilities by adding one of the following option boards:

• Encryption for message security.

• SmarTrunk II for low cost trunking.

• Voice Storage option board provides voice recorder features allowing you to store and retrieve messages.


Freedom to communicate utilising a system or dispatcher for wide area coverage, or bypass and talk directly to another unit for easy local unit-to-unit communications.

Caller Tone Tagging

Allows different alert tones to be assigned to different caller identities.

Programmable Channel Spacing (12.5/20/25 KHz)

Flexible and easy migration of channel spacing requirements in any situation.

2. Specifications


 Frequency Range

 VHF: 136~174MHz

 UHF: 403~470MHz450-520MHz

 Memory Channel


 Channel spacing


 Operating Temperature


 Operating Voltage

 DC 7.5V


 137 x 57.5 x 37.5 mm



Transmission Part

 Output power

 VHF: 1-5W

 UHF: 1-4W

 Frequency stability


 Hum and Noise

≤-40dB (12.5kHz)

 ≤-45dB (25kHz)

 Adjacent Channel Power

 60 dB (12.5 kHz)

 70 dB (20 and 25 kHz)

 4FSK Digital Modulation

 12.5 kHz Data: 7K60F1D and 7K60FXD

 12.5 kHz Voice: 7K60F1E and 7K60FXE

 Combination of 12.5 kHz Voice and Data: 7K60F1W

 Modulation Limiting

 ± 2.5 kHz @ 12.5 kHz

 ± 4.0 kHz @ 20 kHz

 ± 5.0 kHz @ 25 kHz

Reception Part

 Analog Sensitivity

 0.16 uV

 Digital Sensitivity

 0.14 uV


 70 dB

 Adjacent Channel Selectivity

 60 dB (12.5 kHz)

 70 dB (20/25 kHz)

 Spurious Rejection


 Hum and Noise

 -40 dB (12.5 kHz)

 -45 dB (25 kHz)

3. Shipping

4. Payment

EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
