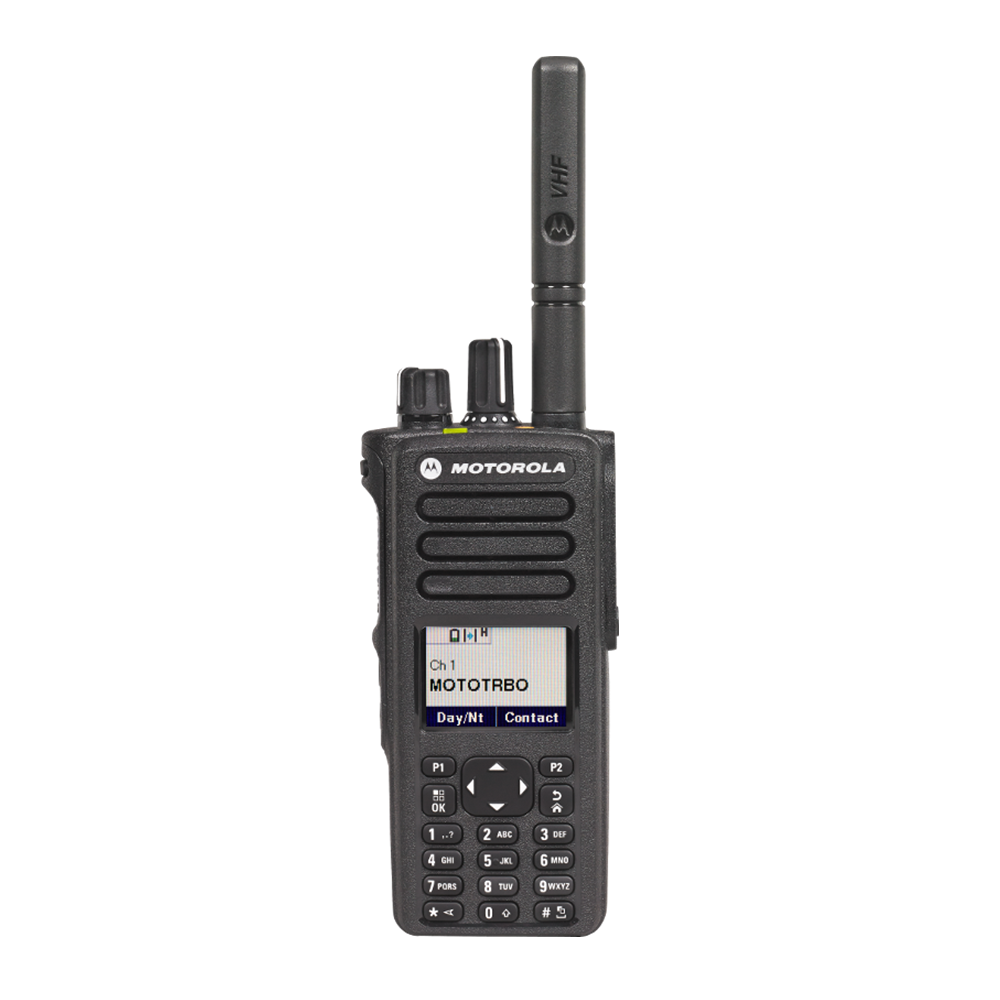

Motorola Mototrbo Two Way Radio DP4801E

  • Frequency Range: 136-174MHz 403-527MHz
  • Storage Channel: 1000
  • Dimensions: 130 x 55 x 36 mm
  • Weight (with standard battery): 315g
  • Description: The DP4801E Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-gen
  • INQUIRY   EMAIL

1. Features


With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The DP4000E Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.


CONNECTED

The MOTOTRBO DP4000E  Series is a family of DMR-standard digital radios that delivers operations-critical voice and communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates, and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.


SAFE

Safeguard your staff with responsive push-to-talk technology. The prominent orange emergency button on DP4000E  Series radios summons help with one touch, using Transmit Interrupt to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen, and can initiate a call for assistance. The radio is tested tough to military standards and is waterproof (IP68 Capable). It won’t let you down.


PRODUCTIVE

Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a powerful audio amplifier, these radios deliver loud, clear speech, with industrial noise cancellation for better intelligibility. The latest energy technology provides the battery option which delivers up to 27 hours of battery life for 3-shift working, and an improved receiver boosts range further.


WHAT’S NEW IN THESE NEXT GENERATION RADIOS

•  Integrated accelerometer for optional Man Down

•  Bluetooth® 4.0

•  Indoor location tracking

•  Multi-constellation GPS for increased location accuracy

•  Integrated Wi-Fi

•  Over-the-air software updates

•  Enhanced audio quality

•  Improved expandability

•  Better battery life (up to 28 hrs)

•  Better range

•  Better waterproofing (IP68 Capable)


CONNECTION

• VHF Band, 5 W • UHF Band, 4 W • 350 Band, 4 W

• FKP Models: Colour screen, full keypad, 1000 channels

• LKP Models: Colour screen, limited keypad, 1000 channels

• NKP models: No screen or keypad, 32 channels

• Analogue and Digital

• Voice and Data Integrated Wi-Fi

• Canned Text Messaging

• Freeform Text Messaging (FKP models)

• Multi-constellation GNSS

• High Efficiency GNSS

• Event-Driven Location Update

• Bluetooth Audio

• Bluetooth Data Bluetooth Permanent Discovery Mode Bluetooth Indoor Location Tracking • Voice Announcement Text to Speech Option Board

• Home Channel Reminder


AUDIO

• Intelligent Audio

• IMPRES Audio SINC+ Noise Cancellation

• Acoustic Feedback Suppressor

• Microphone Distortion Control

• User-Selectable Audio Profiles

• Switch Speaker

• Trill Enhancement

CUSTOMISATION

• Wide Range of Accessories Multi-Button PTT

• 5 Programmable Buttons (3 for NKP model)

• Emergency Button

MANAGEMENT

Radio Management Over-the-Air Programming Over-the-Air Software Update IMPRES Battery Management Over-the-Air Battery Management

SAFETY

• Integrated Accelerometer Man Down

• Lone Worker AES Encryption

• Transmit Interrupt

• Emergency

• Emergency Search Tone

• Remote Monitor

• Radio Disable / Enable HazLoc Certification

• IP68 Capable

• Rugged to MIL-STD 810

SYSTEMS

• Dual Capacity Direct Mode

• Conventional

• IP Site Connect Capacity Plus Single Site Capacity Plus Multi Site (formerly known as Linked Capacity Plus) Capacity Max Connect Plus



2. Specifications


GENERAL SPECIFICATIONS

Channel Capacity

1000

Frequency

136-174 MHz   403-527 MHz

Dimensions (HxWxL)

with NiMH Battery  1400Mah  130.3 x 55.2 x 38.7 mm

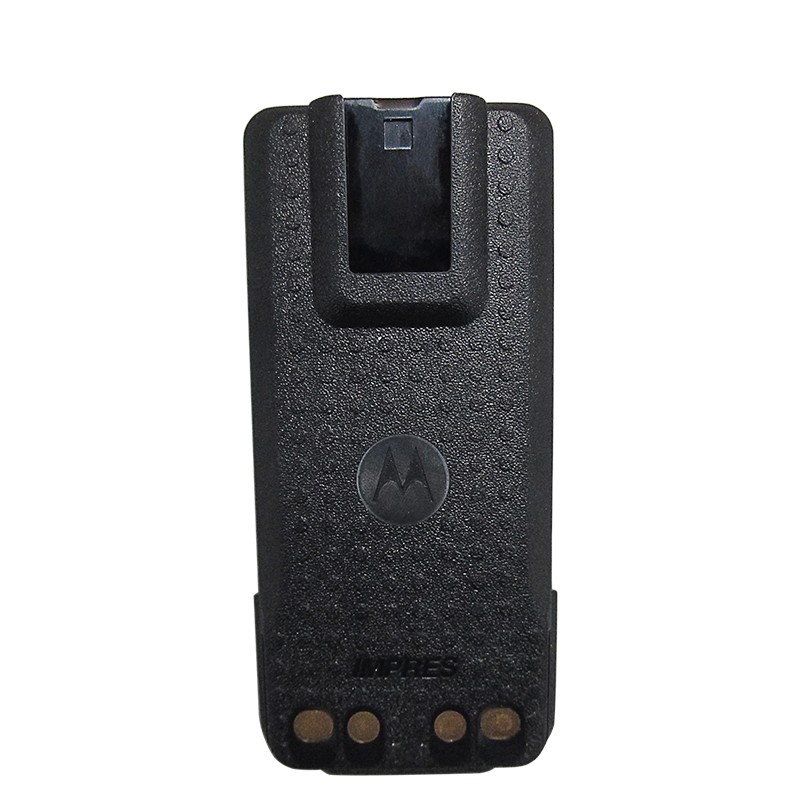

IMPRES Li-ion Slim (1600mAh)  battery  130.3 x 55.2 x 35.8 mm

IMPRES Hi-Cap Li-ion (2250 mAh)  battery  130.3 x 55.2 x 41.1 mm

IMPRES Hi-Cap Li-ion FM (2350 mAh)  battery  130.3 x 55.2 x 41.1 mm

Weight with battery:

with NiMH Battery  1400Mah  425.5 g (15.01 oz)

IMPRES Li-ion Slim (1600mAh)  battery  335.5 g (11.83 oz)

IMPRES Hi-Cap Li-ion (2250 mAh)  battery  355.5 g (12.54 oz)

IMPRES Hi-Cap Li-ion FM (2350 mAh)  battery  365.5 g (12.89 oz)

Power Supply

7.5 V (Nominal)

Average battery life at 5/5/90 duty cycle  with battery saver enabled in carrier squelch and transmitter in high power

IMPRES LiIon Std Battery

Analogue: 8 hrs/Digital: 11.8 hrs

IMPRES LiIon HiCap Battery

Analogue: 11.5 hrs/Digital: 17 hrs

IMPRES FM LiIon Battery

Analogue: 12.3 hrs/Digital: 18.1 hrs

NiMH Battery

Analogue: 7 hrs/ Digital: 10.2 hrs

RECEIVER

Frequency

136-174 MHz;403-527 MHz

Channel Spacing

12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 0.5 ppm

Analogue Sensitivity

0.30 uV (12 dB SINAD);0.22 uV  (typical) (12 dB SINAD);
0.4 uV (20 dB SINAD)

Digital Sensitivity

5% BER: 0.3 uV

Intermodulation

70 dB

Adjacent Channel Selectivity

60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz

Spurious Rejection

70 dB

Rated Audio

500 mW

Audio Distortion @ Rated Audio

3% (typical)

Hum and Noise

-40 dB @ 12.5 kHz; -45 dB @ 20/25  kHz

Audio Response

 +1, -3 dB

Conducted Spurious Emission

 -57 dBm

TRANSMITTER

Frequency

 136-174 MHz;403-512 MHz

Channel Spacing

 12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 1.5 ppm (DP3600)

Power Output

UHF

1-5 W

VHF

1-4W

Modulation Limiting

+/- 2.5 kHz @ 12.5 kHz

+/- 4 kHz @ 20 kHz

+/- 5.0 kHz @ 25 kHz

FM Hum and Noise

-40 dB @ 12.5 kHz; A41-45 dB @  20/25 kHz

Conducted / Radiated Emission

-36 dBm < 1 GHz;-30 dBm > 1 GHz

Adjacent Channel Power

-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz

Audio Response

+1, -3 dB

Audio Distortion

3%

Digital Vocoder Type

AMBE+2

Digital Protocol

ETSI-TS 102 361-1, 2 & 3

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

 -30° C / +60° C

Storage Temperature

-40° C / +85° C

Temperature Shock

Per MIL-STD

Humidity

Per MIL-STD

Water and Dust Intrusion

IP57, MIL-STD

GPS

Accuracy specs are for long-term  tracking (95th percentile values > 5 satellites visible at a nominal -130  dBm signal strength)

TTFF (Time To First Fix) Cold Start

< 2 minutes

TTFF (Time To First Fix) Hot Start

< 10 seconds

Horizontal Accuracy

< 10 meters

Bluetooth

Version

Supports Bluetooth? 2.1 + EDR  Specification

Profiles   Supported

Bluetooth Headset Profile (HSP),  Serial Port Profile

(SPP), Motorola fast push-to-talk.

Devices  Supported

Radio supports 1 Bluetooth audio  accessory and 1

Bluetooth data device simultaneously

Range

Class 2, 10 metres
