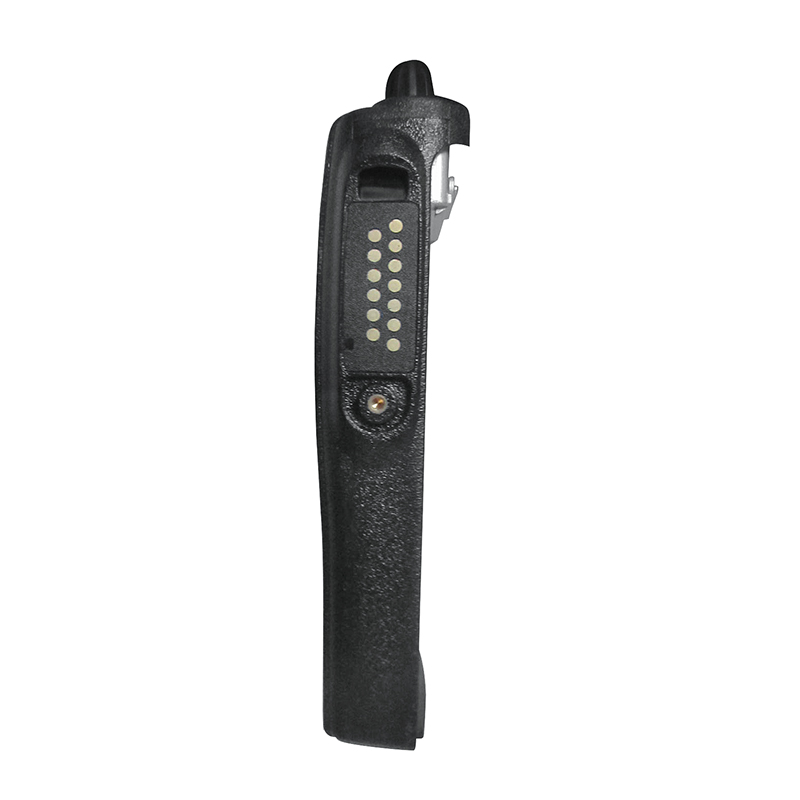

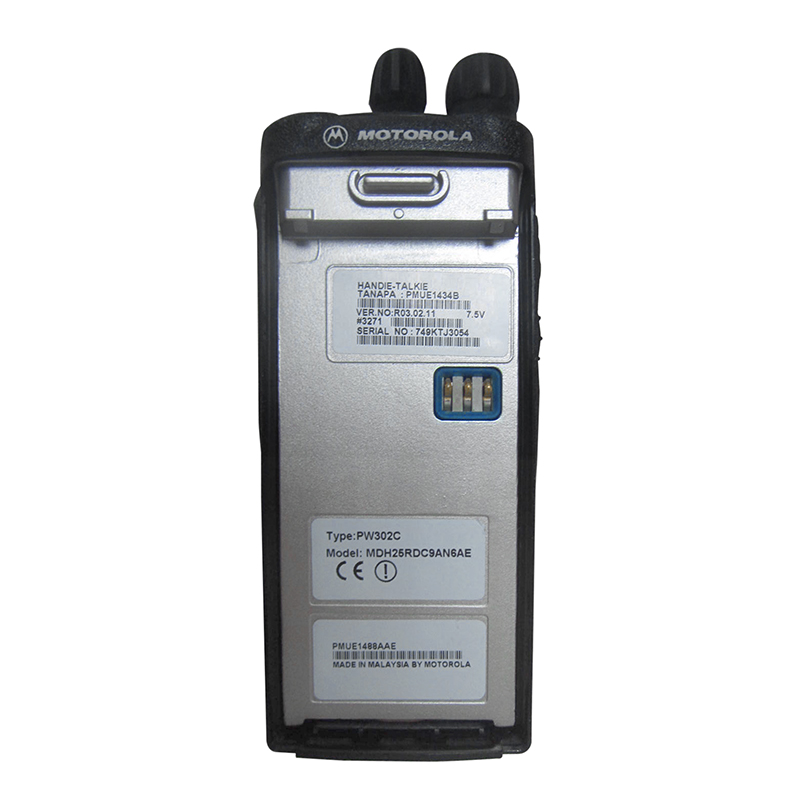

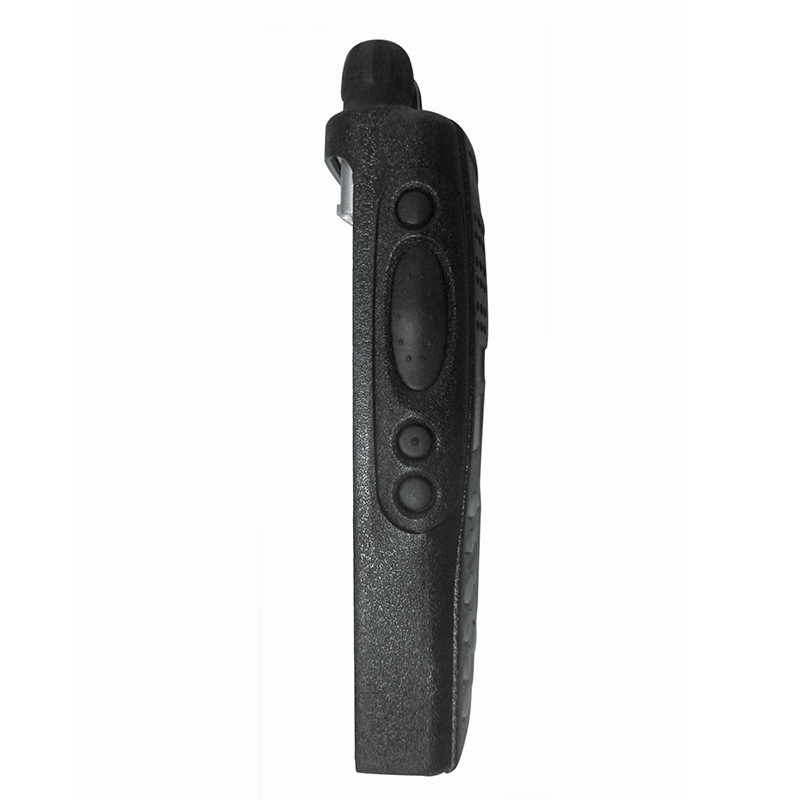

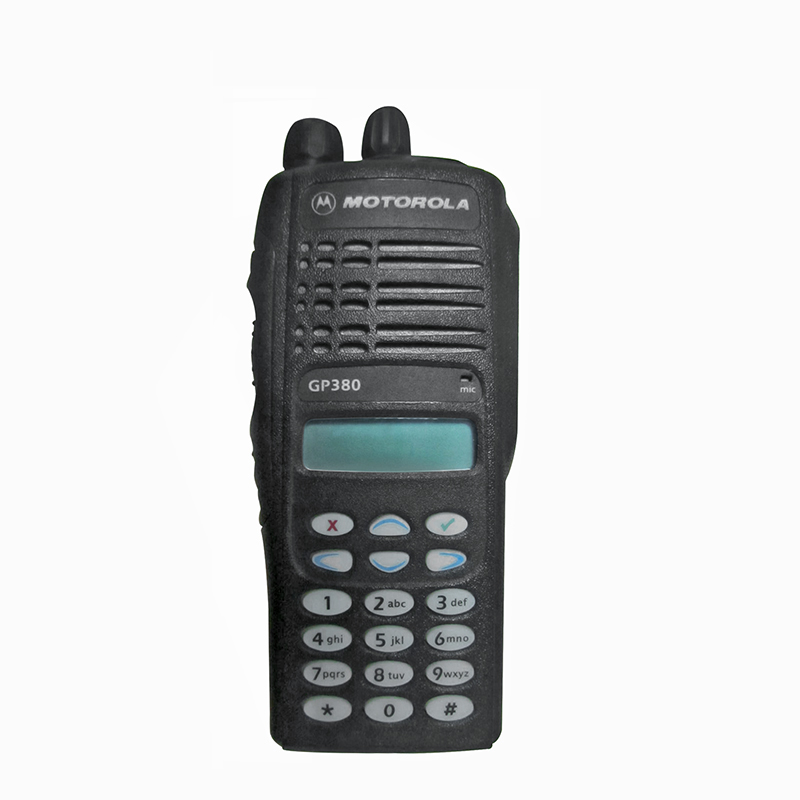

Motorola Walkie Talkie VHF Radio GP380

Frequency Range: VHF 136-174MHz , UHF 403-470MHz
Storage Channel: 225
Dimensions: 137*57.5*37.5 mm
Weight: 420g


1. Features

The GP380, one of the market-leading radios in Motorola’s Professional Series, is an effective feature-packed communication solution for any organisation. The radio offers broad functionality; an easy-to-use menu with full keypad for productivity, whilst security features protect users working alone or remotely.


• Private Line™

• 5-tone selective signalling

Adaptable and versatile

• Option board expandability

• Easily programmed in the field to support additional features

Easy to use and set-up

• Programmable buttons for easy access to frequently used features

• Ruggedised design and compelling user interface

• Simple menus and alpha-numeric phonebook

• Full keypad allows easy telephone interconnect

Protecting users

• Emergency signalling

• Lone worker feature for staff working remotely

• Whisper mode for discreet communications

• Caller identification


• MIL Spec 810 compliant

• Meets IP54 environmental standards

• Passed Motorola Accelerated Life Test

• X-Pand™ voice compression technology


• Channel scanning

• Call management features include call forwarding, escalating incoming call alert and missed calls list

• Battery • Antenna • Belt clip • Accessory dust cover • User manual

Accessory options

A wide range of accessory options are available to customise your radio

• Audio accessories • Batteries and chargers • Carry options

2. Specifications

Model : GP380


Channel Capacity



136-174 MHz; 403-470MHz


High capacity NiMH battery 137 x 57.5 x 37.5

Ultra high capacity NiMH battery 137 x 57.5 x 40.0

NiCD battery 137 x 57.5 x 40.0

Weight (gm) with:

Standard high capacity NiMH battery 420

Ultra high capacity NiMH battery 500

NiCD battery 450

Li-Ion battery 350

Power Supply

7.2V nominal

Average Battery Life @5-5-90% Duty Cycle, with

LiIon battery

NiMH battery

High Capacity LiIon battery

High Power

up to 11 hrs

up to 9 hrs

up to 16 hrs


Passes rain testing per IP54

Shock & Vibration

Diecast with impact resistance polycarbonate housing, Meets MIL-STD810C/D/E/F

Dust & Humidity

Weather resistant housing Meets MIL-STD810C/D/E/F


Frequency Stability

<-119 dBm (0.25uV)

Adjacent Channel Selectivity

> 70dB (25kHz), >65dB (12.5kHz)



Spurious Rejection


Audio Distortion


Hum and Noise


Conducted Emission

< -57dBm for below 1GHz

< -47dBm for above 1GHz

Audio Output @ <5% Distortion

500mW (at 24 ohm)



High Power        5W

Low Power         1W


High Power        4W

Low Power         1W

Modulation Limiting

≤ 5khz (25kHz)

≤ 2.5khz (12.5kHz)

Spurs and Harmonics

9kHz - 1GHz < -36dBm

> 1GHz < -30dBm

Frequency Stability (-30°C to +60°C)

+/- 2.5ppm

FM Hum & Noise

> 40dB

Adjacent Channel Power

-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz

Audio Response

+1, -3 dB

Audio Distortion


3. Shipping

4. Payment Terms

EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
