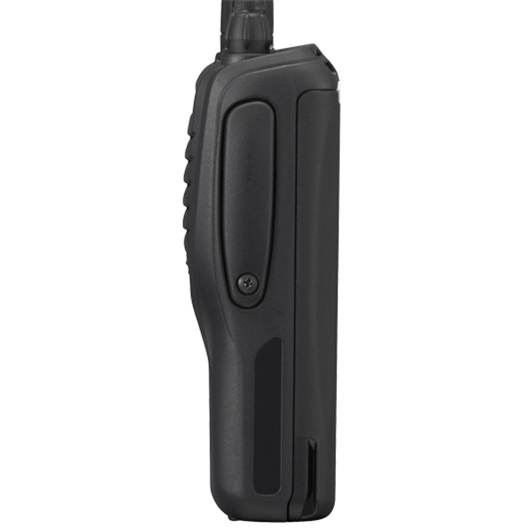

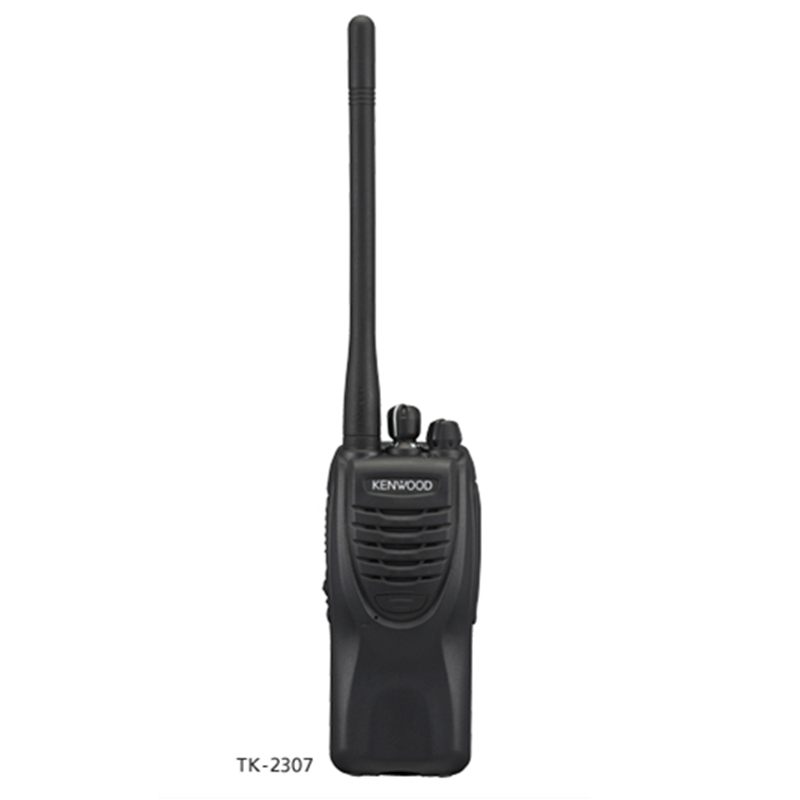

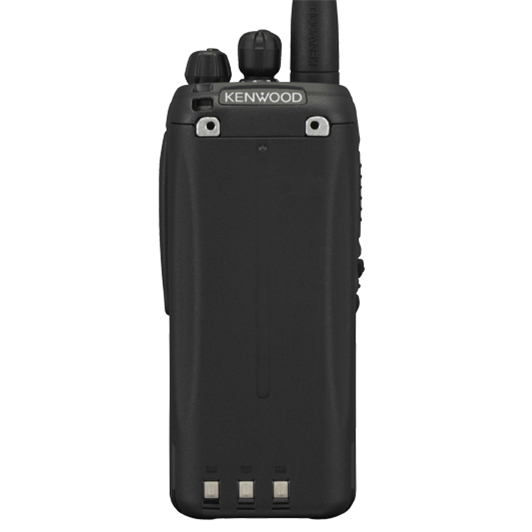

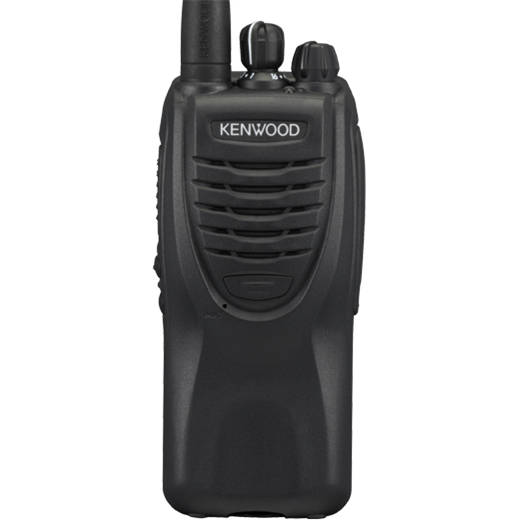

VHF FM Portable Two Way Radio KENWOOD TK2307

  • Frequency Range: VHF136 - 174 MHz
  • Storage Channels: 16
  • Weight: 280 g with KNB-45 Battery
  • Dimension: 54 x 122 x 33.8 mm
  • Description: VHF FM Portable Two Way Radio KENWOOD TK2307
  • INQUIRY   EMAIL

1. Features


For clear, reliable communications indoors or out, rain or shine, there's no beating KENWOOD's compact TK-2307/3307 transceiver. Based on a proven design, but refined and updated with enhanced features, it has the power and performance to satisfy even the toughest job requirements, due in part to the MIL-STD 810 & IP54/55 weather-proofing. A model of ergonomic excellence on the outside, inside it's packed with such features as priority scan, built-in VOX and a voice scrambler. No wonder the smart new TK-2307/3307 is attracting such attention.

COMPACT DESIGN

The rounded ergonomic contours of the TK-2307/3307 naturally provide a superbly comfortable hold, while the non-slip elastomer channel knob with improved torque characteristics and enlarged PTT button ensure a positive tactile response during operation

TOUGH & WATERPROOF

Built tough to take rough treatment in stride, the TK-2307/3307 has passed the demanding IP54/55 dust and water intrusion tests, both with and without the KMC-45 optional speaker microphone. It also meets or exceeds 11 stringent MIL-STD 810 C/D/E/F environmental standards, including “driven rain”. So whatever the weather, the TK-2307/3307 is ever ready for action.

ENHANCED AUDIO QUALITY

Clear audio means confident communications, but power output is not the only factor that determines how easy it is to use a radio in varying noisy environments. As an experienced audio specialist, KENWOOD can draw on decades of expertise at every step: component selection, construction, optimization, evaluation and analysis. The resulting audio performance, specially engineered for transceivers, is undeniably clearer and crisper. Just listen to the difference.


MULTIPLE SIGNALING

❚ QT/DQT/DTMF:

The radio's encoder/decoder function uses QT/DQT to segregate talk groups so you only hear calls from your own group. DTMF PTT ID is included for dispatch operations or for simple remote control applications. The DTMF decode capabilities include selective call ID, transpond with ID, “wild card” group calling, and radio stun.

❚ FleetSync® PTT ID, SELCALL & EMERGENCY:

Utilizing KENWOOD's FleetSync® digital signaling protocol, the TK-2307/3307 features PTT ID (ANI: automatic number identification) and Selective Calling capabilities for managed dispatch operations. For hazardous/ hostile duty environments, a PF key can be programmed for Emergency status to alert the dispatcher and/or operator in distress.

❚ BUILT-IN MDC-1200 SIGNALING:

The TK-2307/3307 is also equipped with an MDC-1200 signaling protocol encoder/decoder for use with MDC-1200 dispatch operations. Features include PTT ID encode, emergency encode, stun/revive decode, and radio check decode.

PROGRAMMABLE FUNCTION KEYS

The two PF Keys can be programmed for any of the many functions available on the TK-2307/3307, permitting a customized fit for your requirements. Either key can also be programmed for an Emergency function – transmitting a help signal to a predetermined person or group using DTMF, FleetSync® or MDC-1200 signaling.

LONE WOKRER

This ingenious feature provides an extra layer of security for individuals who work in remote or hazardous areas. As long as the buttons are pressed regularly, the radio operates normally. However, if there is a long lapse (programmable), it will sound an alert. And if the user does not respond to the alert, the TK-2307/3307 will place an emergency call to a predetermined person or group.

RADIO STUN

This function disables a lost or stolen radio over the air, eliminating security risks.


VOICE ANNUNCIATION

The rotary and key controls on the radio can provide voice confirmation of radio status or operating mode, which is convenient when you are not able to look at the TK-2307/3307 – for example, if it's in your pocket. English is the default language, but you can switch to Russian, French, Spanish or Chinese.


INDEPENDENT SETTINGS PER CHANNEL

Radio channels can be programmed* independently for VOX, scrambler and compander functions. This means you can switch a function on or off simply by changing channels (on the same frequency).


16 CHANNELS

The TK-2307/3307 provides ample capacity for operating with multiple channels or radio systems.


BUILT-IN VOICE-INVERSION SRAMBLER

The voice-inversion scrambler provides basic protection against casual eavesdropping.


VOX READY

Enjoy the convenience of hands-free operation using any optional headset. Offering a 10-level sensitivity adjustment, the internal VOX (voice-operated transmission) function automatically activates PTT when you start talking. This is great for specialized tasks or events that require hands-free, constant or repetitive communications.


OTHER FEATURES

Read/Write Password Protection

Wide/Narrow per Channel

Companded Audio per Channel

Talk Around

B.C.L. (Busy Channel Lockout)

Key Lock

3-color LEDs (red, orange, green)

Scan Del/Add

KENWOOD ESN (Electronic Serial Number)

Adjustable Microphone Gain (by FPU): High or Normal

Microsoft Windows®

PC Programming & Tuning


2. Specifications

TK-2307

TK-3307

GENERAL

Frequency Range

Type 1

136 - 174 MHz

450 - 490 MHz

Type 2

440 - 480 MHz

Number of Channels

Max.16

Channel Spacing

Wide / Narrow

25 kHz / 12.5 kH

Battery Voltage

7.5 V DC ±20 %

Battery Life
(5-5-90 duty cycle,
during hi-power battery saver: OFF/ON)

with KNB-45L (2000 mAh)

Approx. 12 hours / 18 hours

with KNB-29N (1500 mAh)

Approx. 10 hours / 14 hours

with KNB-30A (1100 mAh)

Approx. 9 hours / 11 hours

Operating Temperature Range*

-30°C ~ +60°C

Frequency Stability

±2.5 ppm (-30°C ~ +60°C)

Antenna Impedance

50 Ω

Dimensions (W x H x D), Projections not Included

with KNB-45L / 29N / 30A

54 x 122 x 33.8 mm

Weight (net)

Radio only

160 g

with KNB-45L

280 g

with KNB-29N

360 g

with KNB-30A

340 g

RECEIVER

Sensitivity

EIA 12 dB SINAD

0.25 μV / 0.28 μV

Wide / Narrow

Adjacent Channel Selectivity

Wide / Narrow

70 dB / 60 dB

Intermodulation

Wide / Narrow

65 dB / 60 dB

Spurious Response Rejection

65 dB

60 dB

Audio Output (4 Ω impedance)

500 mW with less than 10 % distortion

Measurement

TIA / EIA-603

TRANSMITTER

RF Power Output (High/Low)

5 W / 1 W

4 W / 1 W

Modulation Limiting

±5.0 kHz at 25 kHz

±2.5 kHz at 12.5 kHz

Spurious Emission

65 dB

Modulation

Wide / Narrow

16K0F3E / 11K0F3E

FM Noise (EIA)

Wide / Narrow

45 dB / 40 dB

Modulation Distortion

Less than 5 %

Microphone Impedance

2 kΩ

Measurement

TIA / EIA-603



3. Shipping

4.Payment Terms


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
