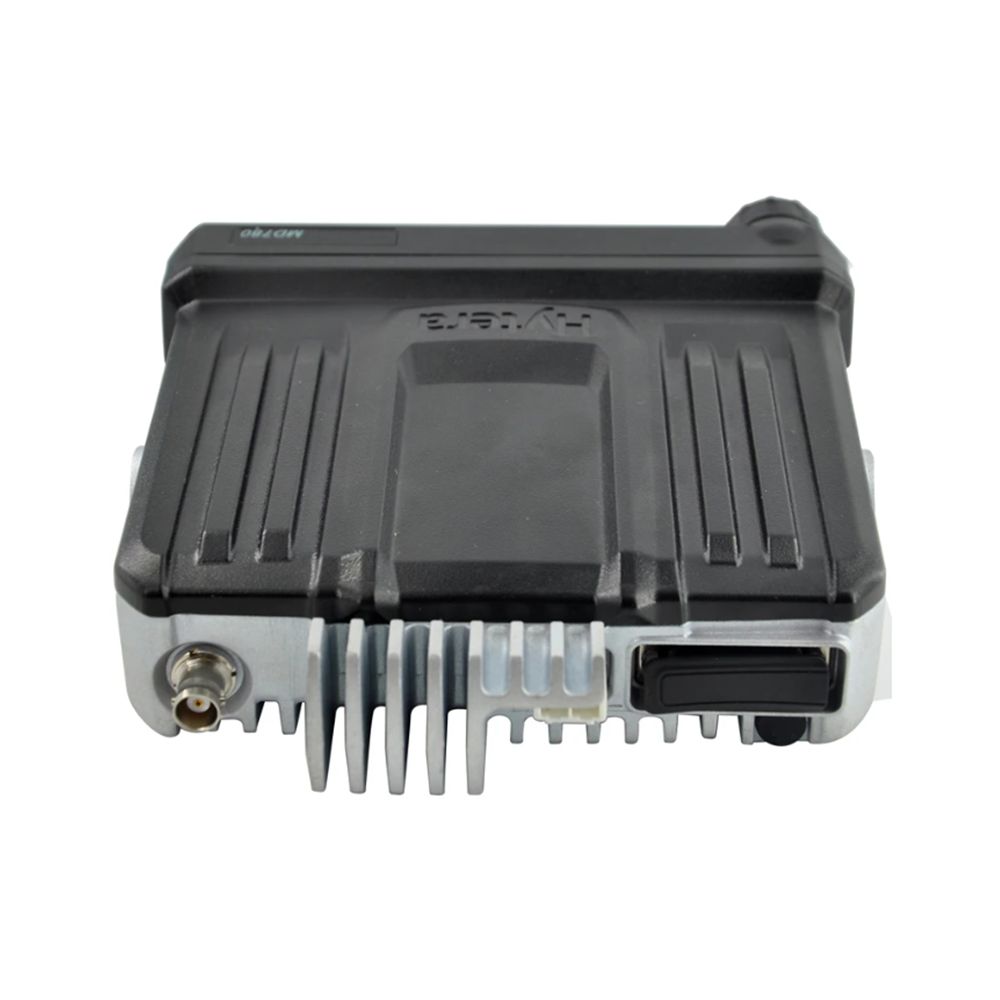

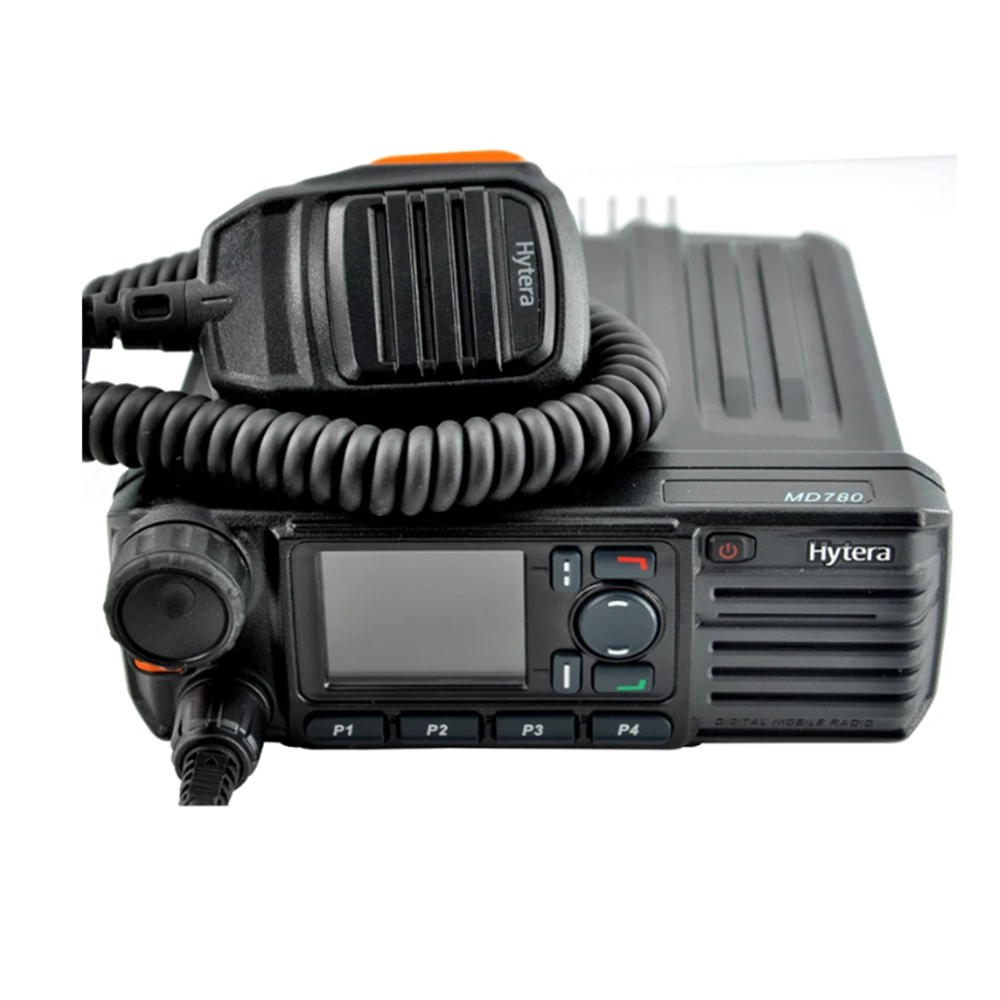

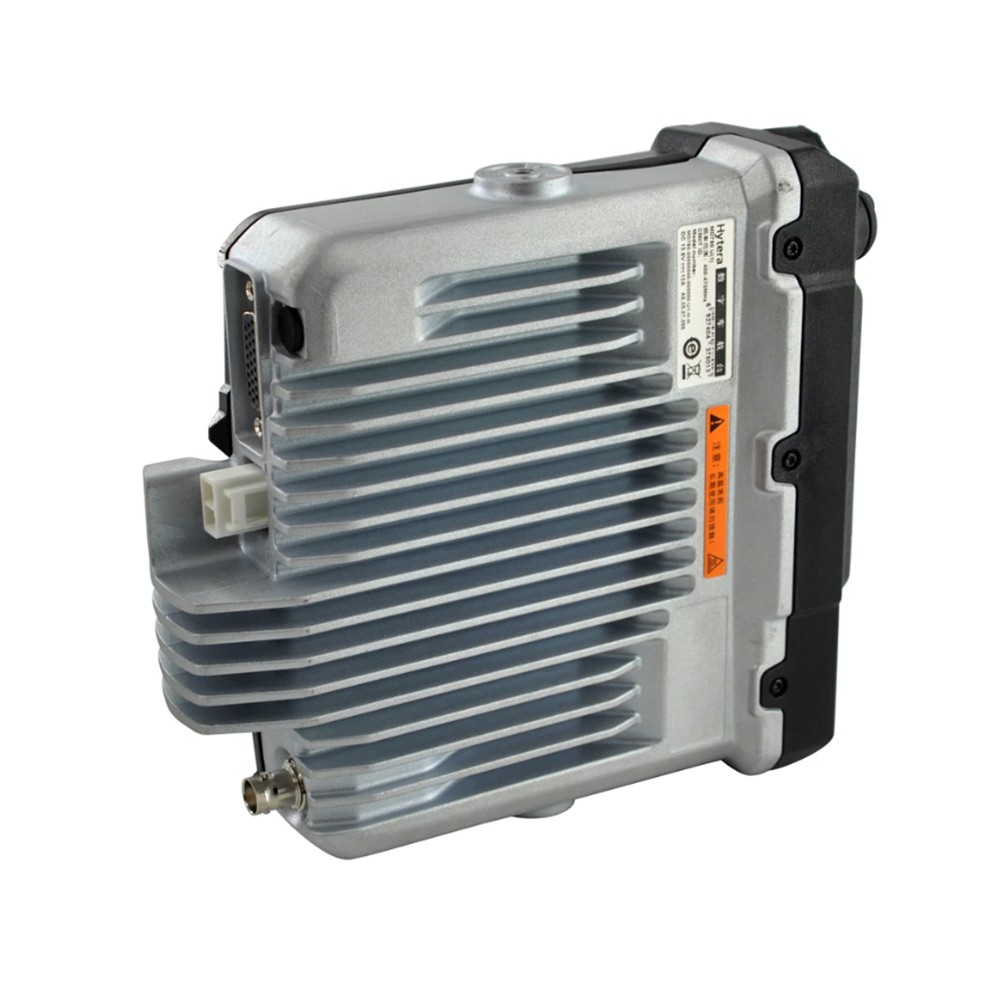

Hytera DMR Mobile Two Way Radio MD780

Hytera DMR Mobile Two Way Radio MD780



This radio provides user-friendly interface and keypad for easy operation. It uses large LCD color display that is easy to read even under strong light. The seven programmable buttons on the radio facilitate fast implementation of required functions, thus improving communication efficiency.

1). Large Color Display

The large color display presents critical information clearly, which is readable even in direct sunlight.

2). Superior Digital Voice

Noise suppression technology provides more superior audio

3). Dual-slot Pseudo Trunk

The free slot can be allocated to enhance frequency efficiency and timely response under emergency.

4). Dual Modes

The MD78X can operate in analog or digital mode, ensuring a smooth analog-to-digital migration.

2. Specifications

Frequency RangeUHF: 403-470Mhz, VHF : 136-174Mhz
Channel Capacity1024
Zone Capacity64
Current Drain (Standby)<0.6A
Current Drain (Receive)<2.0A
Current Drain (Transmit)1W<2A; 25W<8A; 45W<12A; 50W<12A
Dimensions (H×W×D) mm174 × 60 × 200mm
DisplayLCD:220×176 Pixel,262000colour 2.0 inch,4rows
Rated Audio Power Output (Internal)3W @20ohm load
Rated Audio Power Output (External)7.5W @8ohm load
Max. Audio Power Output (Internal)8W @20ohm load
Max. Audio Power Output (External)20W @8ohm load
RF Power OutputLow Power:UHF1/UHF2/UHF3:5-25W Low Power:UHF5:10-25W Low Power:VHF1/VHF3:5-25W High Power:UHF1/UHF2/UHF3:5-45W High Power:UHF5:10-35W(806-900MHz), 10-30W(900-941MHz) High Power:VHF1:5-50W
Digital Vocoder TypeAMBE+2™ or SELP
Operating Temperature-30℃~+60℃
Storage Temperature-40℃~+85℃
ESDIEC 61000-4-2(level 4) ±8kV(Contact) ±15kV(Air)
Dust & Water ProtectionIP54 standard
HumidityMIL-STD-810 C/D/E/F/G
Vibration,Drop&ShockMIL-STD-810 C/D/E/F/G
GPS Specifications
Horizontal Position Accuracy<5m (50% probable) ,<10m (95% probable)
Cold Start (Time to First Fix)<1 minute
Hot Start (Time to First Fix)<10 seconds
NoteAccuracy specs are for long-term tracking (5 satellites visible at nominal -130dBm)
