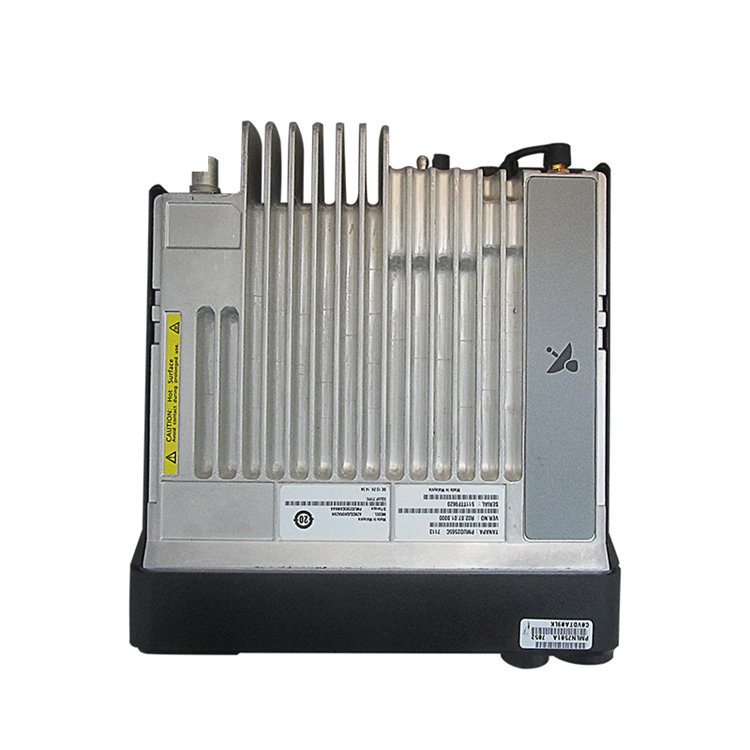

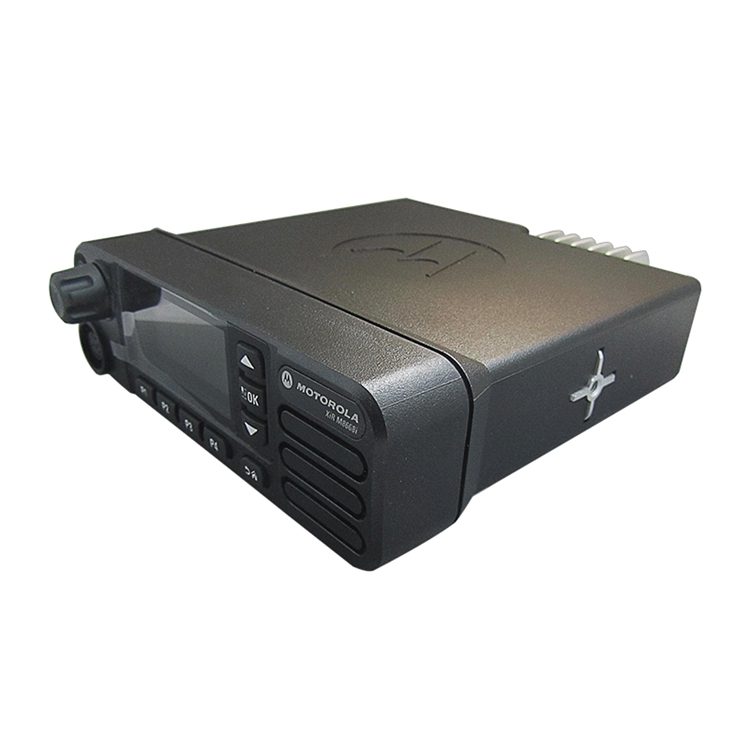

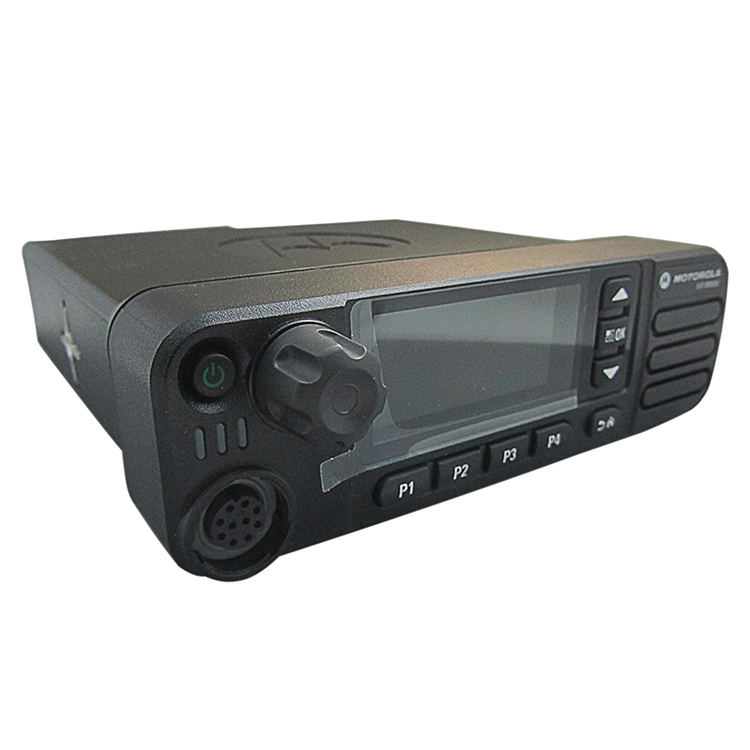

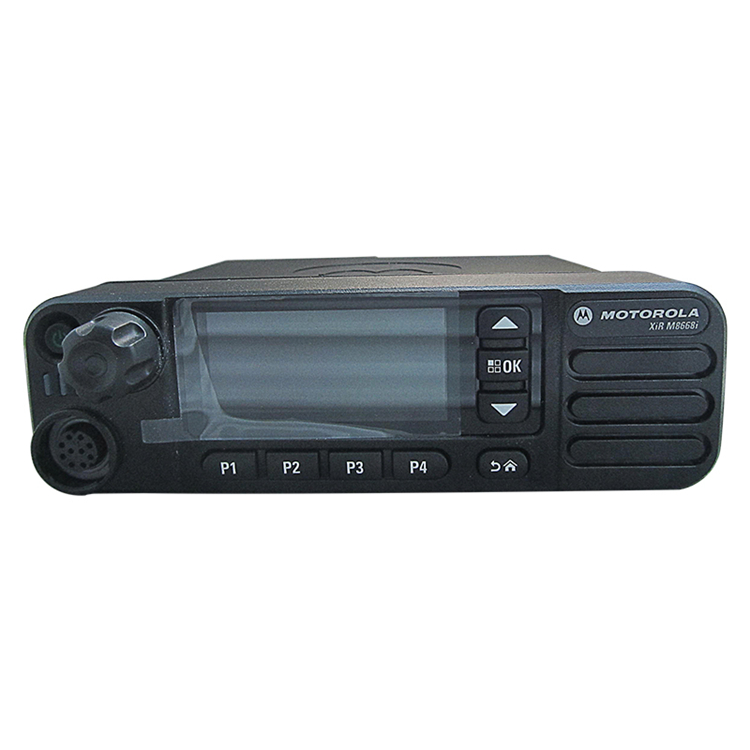

Motorola DMR Mobile Radio 45W Mototrbo XIR M8668i

Frequency Range: 136-174 MHz (VHF) ; 403-470 MHz (UHF1); 450-527 MHz (UHF2)
Storage Channel: 1000
Dimensions: 53.3 x 175.3 x 205.7 mm
Weight: 1.8 kg

EMAIL

1. Features


With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The XiR M8600i Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.


CONNECTED

The MOTOTRBO XiR M8600i Series is a family of DMR-standard digital radios that delivers operationscritical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates, and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.

SAFE

Safeguard your staff with responsive push-to-talk technology. The quick access buttons on XiR M8600i Series radios can summon help with one touch, using

Transmit Interrupt to clear a channel when necessary. A range of safe driving accessories allow your workers to communicate hands-free, and Text-to-Speech technology helps your drivers keep their eyes on the road.

PRODUCTIVE

Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a high power audio amplifier, these radios deliver loud, clear speech, with background noise cancellation for better intelligibility. XiR M8600i Series radios are also ideal as a dispatch solution, with desktop microphones and a rugged, durable design for everyday use.


WHAT’S NEW IN THESE NEXT GENERATION RADIOS

•  Integrated Wi-Fi

•  Over-the-air software updates

•  Bluetooth 4.0

•  Indoor location tracking

•  Multi-constellation GNSS for increased location accuracy



2. Specifications


General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-470MHz, 450-520MHz

Memory Channel

 1000

Channel  Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Power Supply  (Nominal)

12 V

 Dimensions (L×W×H)

53 x 175 x 206 mm

 Weight

1.8 kg

Max Current Drain, Standby

 0.8  A

Max Current Drain, Receive

2 A

Sealing

IP54, MIL-STD

Dust

Meets MIL-STD  810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/  20/25 kHz

4FSK Digital  Modulation

12.5 kHz Data:  7K60F1D and 7K60FXD, 12.5 kHz Voice:  7K60F1E and 7K60FXE, Combination of 12.5 kHz Voice and Data: 7K60F1W

FM Hum &  Noise

- 40dB @  12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated  Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent  Channel Power

- 60dBm @  12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency  Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 20/25 kHz

Intermodulation

70 dB

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital  Vocoder Type

AMBE+2

GPS

Yes

BLUETOOTH 4.0  STANDARD

Frequency  Range 2400 - 2483.5 MHz

WIFI STANDARD

Frequency  Range 2400 - 2483.5 MHz
