Motorola

  • Motorola IP65 Indoor Small 10W Repeater SLR1000
  • Motorola IP65 Indoor Small 10W Repeater SLR1000
  • Motorola IP65 Indoor Small 10W Repeater SLR1000
  • Motorola IP65 Indoor Small 10W Repeater SLR1000
Motorola IP65 Indoor Small 10W Repeater SLR1000Motorola IP65 Indoor Small 10W Repeater SLR1000Motorola IP65 Indoor Small 10W Repeater SLR1000Motorola IP65 Indoor Small 10W Repeater SLR1000

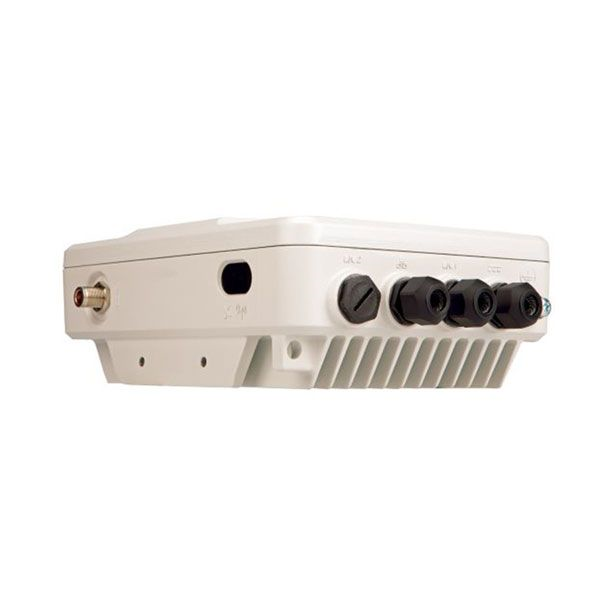

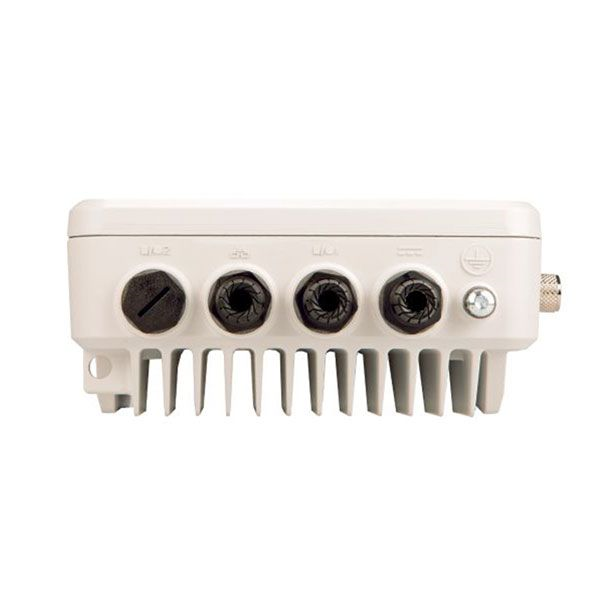

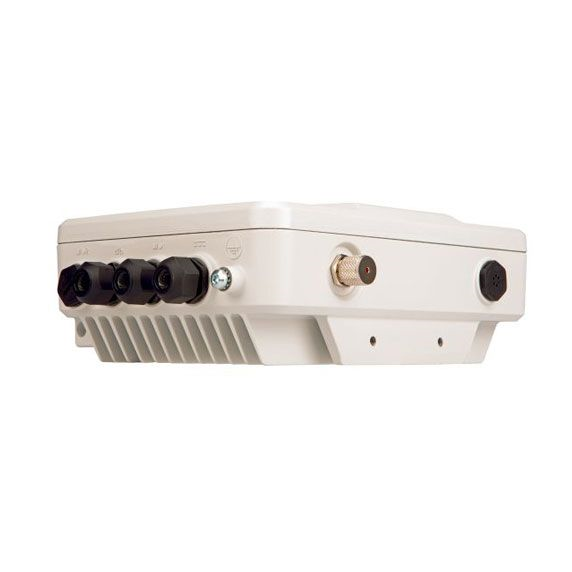

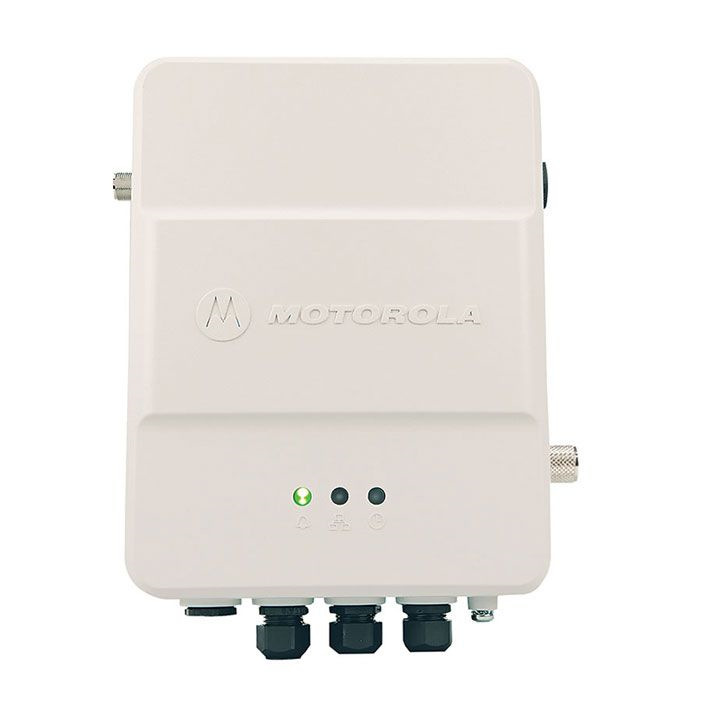

Motorola IP65 Indoor Small 10W Repeater SLR1000

  • Frequency Range: VHF 136-174MHz; UHF 400-527MHz
  • Storage Channel: 64
  • Dimensions: 279.4 x 228.6 x 101.6mm
  • Weight: 10 lbs (4.54 kg)
  • Description: Using the SLR 1000 repeater, you can easily extend the range of your network through dead zones and across remote locations, so everyone’s within reach. With the Indoor Small 10W Repeater SLR1000, a l
  • INQUIRY   EMAIL

1. Features




WHETHER YOU WANT TO ELIMINATE DEAD ZONES OR EXPAND COVERAGE TO REMOTE LOCATIONS, COUNT ON THE SLR 1000. COMPACT, EASY TO INSTALL, AND DESIGNED TO WORK INDOORS OR OUT, IT’S BUILT TO GROW AS YOUR NEEDS DO.

Keeping your team connected requires uninterrupted radio coverage. But often, network dead zones and remote locations present barriers to seamless communication.

Unlike traditional repeaters, the SLR 1000 is IP65-rated for dust and water protection, so you can deploy on campuses, in parking garages, and across other outdoor locations. The compact size gives you more installation options, such as mounting on walls or poles. And a low power, fanless design uses less space and energy, saving you money right from the get-go.

As your organization grows, the SLR 1000 can grow with it. It works with both conventional and trunking systems supporting voice and data, so moving to a bigger system won’t always require buying a bigger repeater.

Above all, it’s technology you can trust. With more than  10 years of experience in DMR, you can rely on  Motorola Solutions and proven MOTOTRBO™ technology  to get the job done.


The SLR 1000 makes it simple. With a compact design, you can mount it on walls or poles. And since the SLR 1000 doesn’t require cooling from HVAC, you have more placement options. All while eliminating the planning headaches and added costs that come with HVAC.



2. Specifications

General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-527MHz

Memory Channel

64

Channel Spacing

25 / 12.5 kHz

Power Output

1 - 10W

Operating Voltage

12 V (11.0-15.5 V)

Input Power Modes

DC only, Optional AC/DC Power Supply Available

 Dimensions (L×W×H)

11 x 9 x 4 in (279.4 x 228.6 x 101.6 mm)*

 Weight

10 lbs (4.54 kg)

 Communication Range

 about 10-20km

Sealing

IP65, MIL-STD

Dust

Meets MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

25 / 12.5 kHz

FM Hum & Noise

- 40dB @ 12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent Channel Power

- 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency Stability

+/- 0.5 ppm

Channel Spacing

25 / 12.5 kHz

FM Modulation

12.5 kHz : 11K0F3e

25 kHz: 16K0F3e

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital Vocoder Type

AMBE+2

Digital Protocol

eTSI-TS102 361-1
