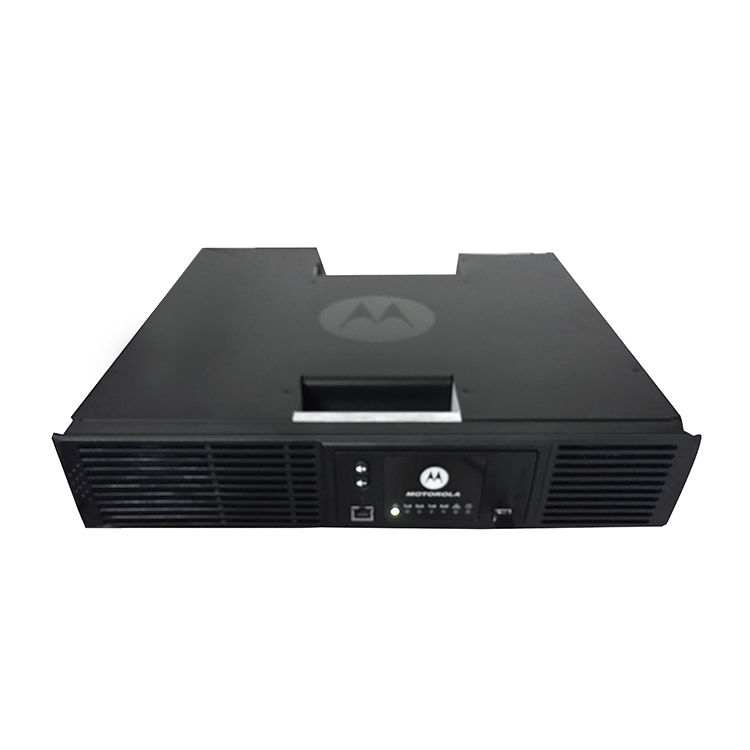

100W Integrated Power Supply Digital DMR Repeater MOTOROLA SLR8000

Frequency Range: VHF 136 - 174 MHz, UHF 400 - 470 MHz
Storage Channel: 64
Dimensions: 89 x 483 x 438 mm
Weight: 14 kg

EMAIL

1. Features




For better safety and efficiency throughout your organization, you need reliable voice and data communications that connect everyone and everything. The MOTOTRBO SLR 8000 repeater delivers high performance, high reliability two-way radio service, optimised for your workplace.

The SLR 8000 is engineered for high performance, reliability and flexibility and represents the next generation in repeaters.

Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with the latest digital technology. It integrates voice and data seamlessly, offers advanced features that are easy to use and delivers increased capacity to meet your communication needs from the field to the factory floor.

Whether you need the simplicity of a single site conventional system, the coverage of IP Site Connect, or the powerful trunking capabilities of Capacity Plus, Capacity Max or Connect Plus, the SLR 8000 delivers the power of digital two-way radio to your workforce. It can also operate as an analogue repeater (conventional or MPT 1327), or as a mixed mode analogue/digital repeater while you transition away from a legacy analogue system.

PRODUCT MEETS

• ETSI 300-086

• ETSI 300-113

• TIA/EID603D

• CE Marked

• RoHS2-Compliant

• UL Listed

• Digital Protocol - ETSI 102 361-1, -2, -3



2. Specifications

General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-470MHz

Memory Channel

64

Channel  Spacing

12.5/20/25 kHz

Power Output

1-100 W

Operating  Voltage

100-240 Vac, 47-63 Hz

 Dimensions (L×W×H)

89 x 483 x 438 mm (3.5 x 19 x 17.25 in)

 Weight

14.1 kg (31 lbs)

 Communication Range

 about  10-20km

Sealing

IP54, MIL-STD

Dust

Meets  MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

RF Output  Power

DC (24 V) or  AC 1-100 W DC (12 V) 1-50 W

Channel Spacing

12.5 kHz/  20/25 kHz

Modulation Limiting

± 2.5 kHz @  12.5 kHz / ± 4.0 kHz @ 20 kHz1 / ± 5.0 kHz @ 25 kHz

FM Hum &  Noise

- 40dB @  12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated  Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent  Channel Power

- 60dBm @  12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency  Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 25  kHz

FM Modulation

12.5 kHz :  11K0F3e

25 kHz:  16K0F3e

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital  Vocoder Type

AMBE+2

Digital  Protocol

eTSI-TS102  361-1
