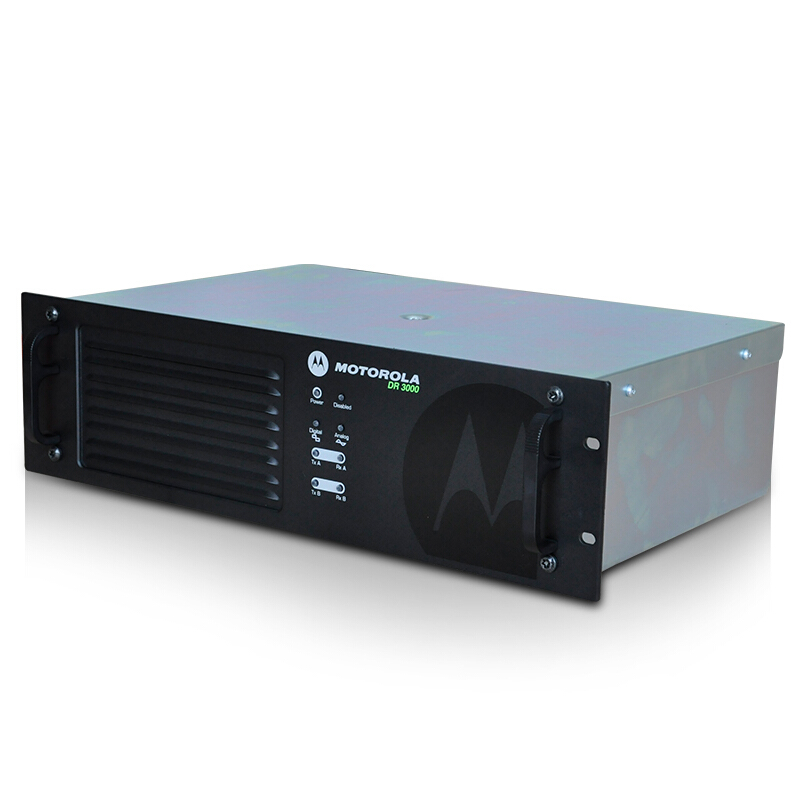

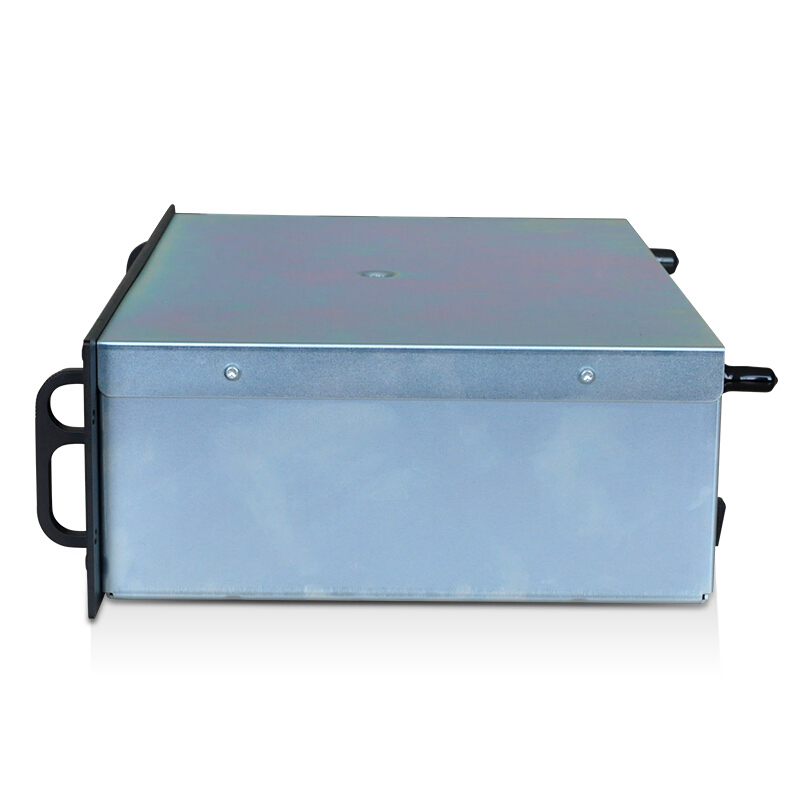

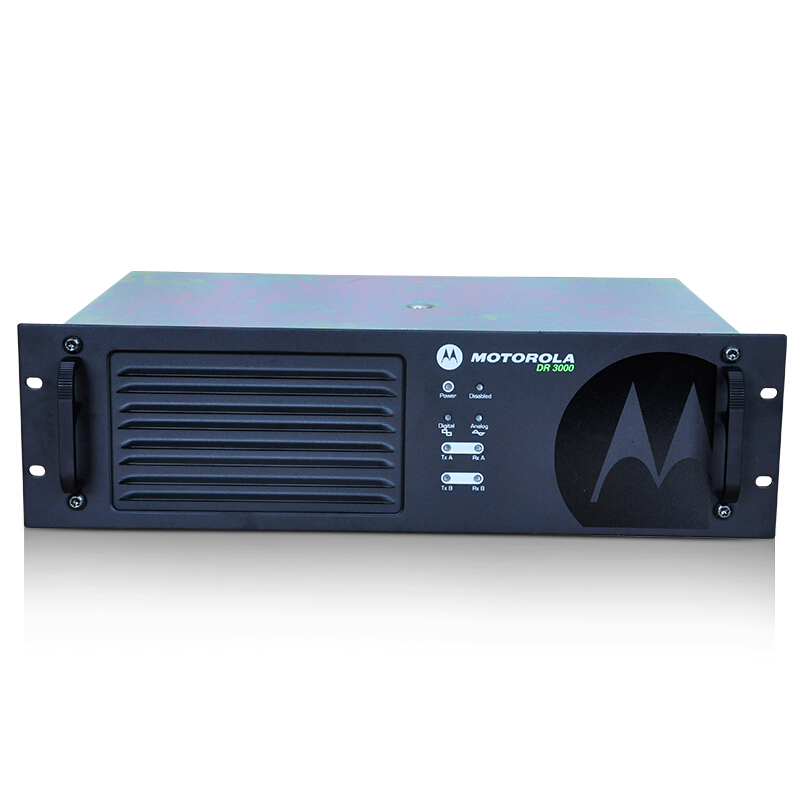

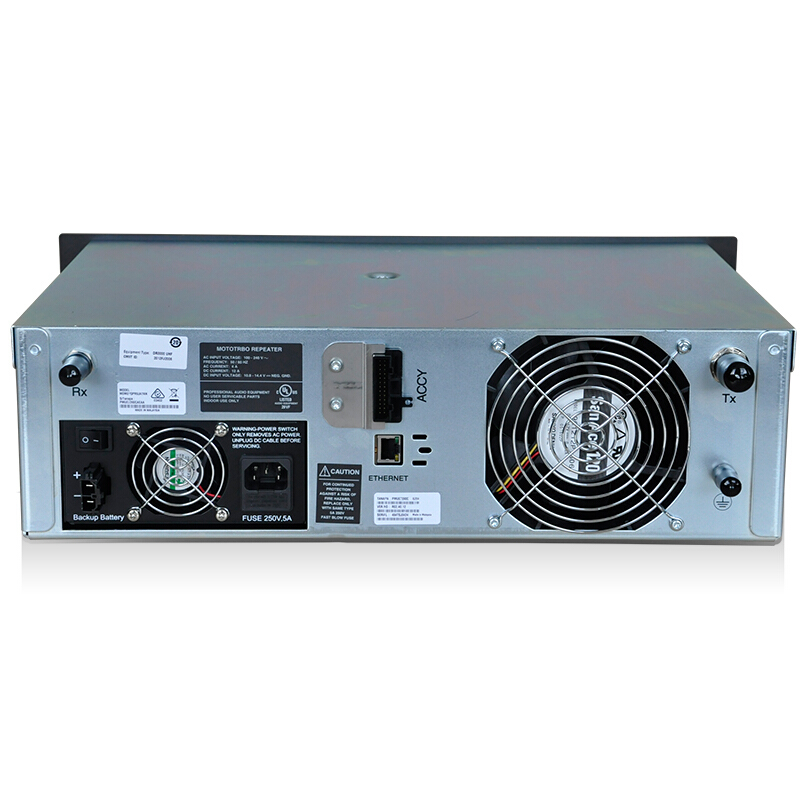

Motorola DMR 45W Repeater DR3000

Frequency Range: 136-174MHz/403-470MHz
Storage Channel: 16
Dimensions: 133 mm H x 483 mm W x 419 mm L
Weight: 14 kg (31 lbs)


1. Features

Motorola is a company of firsts with a rich heritage of innovation. We continue to invent what’s next – connecting people, delivering mobility and making technology personal. Versatile and powerful, MOTOTRBO combines the best in two-way radio functionality with digital technology, making it the ideal communication solution for your business. You get enhanced features, increased capacity, integrated data applications, exceptional voice quality and extended battery performance. This means more productive employees and lower operating costs for your business.

•  Uses Time-Division Multiple-Access (TDMA) digital technology to provide Twice The Calling Capacity (as compared to analog or FDMA radios) for the price of one frequency license. A second call doesn’t require a second repeater, saving you equipment costs.

•  Provides Easy Migration from analog to digital with the ability to operate in both analog and digital modes and utilizing the Dynamic Mixed Mode* repeater functionality allows for automatic switching between analog and digital mode on the same repeater.

•  The IP Site Connect* digital solution uses the Internet to extend coverage of your MOTOTRBO communication system to users anywhere in the world for dramatically improved customer service and increased productivity.

•  Capacity Plus* is a scalable, singlesite digital trunking solution that can expand the capacity of your MOTOTRBO communication to over a thousand radio users without adding new frequencies.

•  Motorola’s Application Developer Program enables the development of customized data applications that adapt MOTOTRBO radios to meet the unique needs of your business.

2. Specification

General Specifications

 Frequency Range


Memory Channel


Channel Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Operating Voltage

100 - 240 VAC, 50/60Hz

 Dimensions (L×W×H)

132.6 x 482.6 x 296.5 mm


14 kg (31 lbs)

 Communication Range

 about 10-20km




Meets MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/ 20/25 kHz

Modulation Limiting

± 2.5 kHz @ 12.5 kHz / ± 4.0 kHz @ 20 kHz1 / ± 5.0 kHz @ 25 kHz

FM Hum & Noise

- 40dB @ 12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent Channel Power

- 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 25 kHz

FM Modulation

12.5 kHz : 11K0F3e

25 kHz: 16K0F3e

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital Vocoder Type


Digital Protocol

eTSI-TS102 361-1

3. Shipping

4. Payment

EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
