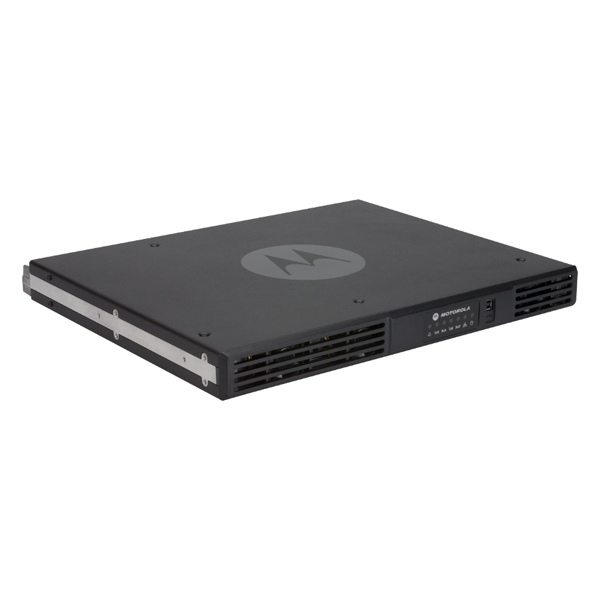

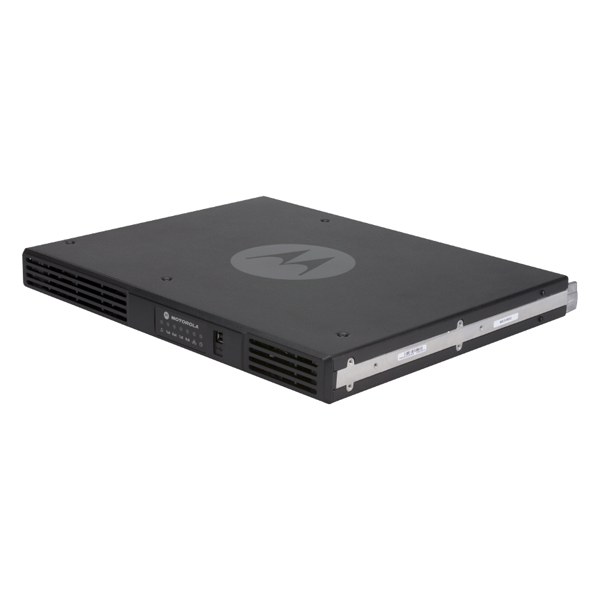

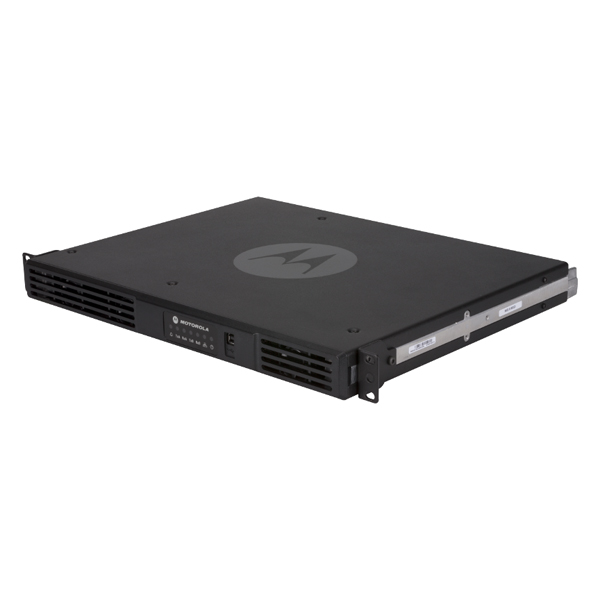

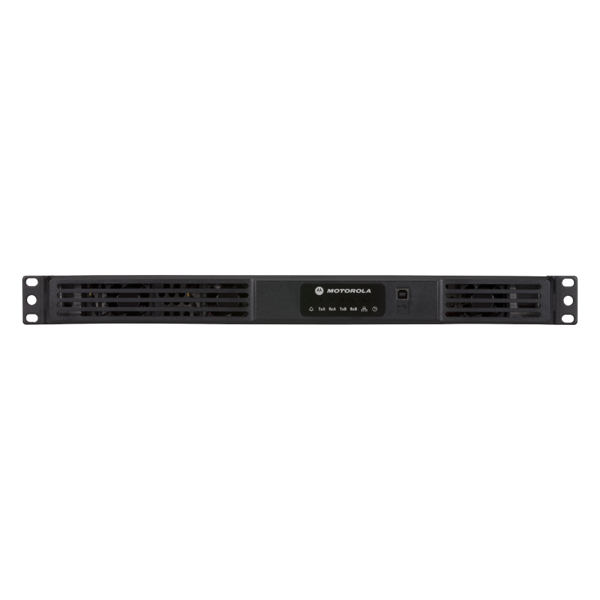

100 KM Long Range Mototrbo Repeater Motorola SLR5300

Frequency Range: VHF 136-174MHz, UHF 400-470Mhz
Storage Channel: 64
Dimensions: 44*483*370mm
Weight: 8.6 kg


1. Features

For your organization to be successful, you need dependable voice and data communications that reach every corner of your operations. The MOTOTRBO SLR 5000 Series repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace.

With its sleek form factor and low power consumption, it’s engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters.

Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with the latest digital technology. It integrates voice and data seamlessly, offers advanced features that are easy to use and delivers increased capacity to meet your communication needs from the field to the factory floor.

Whether you need the simplicity of a single site conventional system, or the powerful trunking capabilities of Capacity Plus, Linked Capacity Plus or Connect Plus, the SLR 5000 Series delivers the power of digital two-way radio to your workforce. It can also operate as an analog repeater (conventional or MPT 1327), or as a mixed mode analog/digital repeater while you transition away from a legacy analog system.

2. Specifications

General Specifications

 Frequency Range


Memory Channel


Channel Spacing

12.5/20/25 kHz

Power Output

1 – 50 W

Operating  Voltage

100-240 Vac, 47-63 Hz

 Dimensions (L×W×H)

1.75 x 19 x 14.6 in (44 x 483 x 370 mm)


19 lbs (8.6 kg)

 Communication Range

 about  10-20km




Meets MIL-STD  810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/  20/25 kHz

Modulation Limiting

± 2.5 kHz @  12.5 kHz / ± 4.0 kHz @ 20 kHz1 / ± 5.0 kHz @ 25 kHz

FM Hum &  Noise

- 40dB @  12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated  Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent  Channel Power

- 60dBm @  12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency  Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 25  kHz

FM Modulation

12.5 kHz :  11K0F3e

25 kHz:  16K0F3e

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital  Vocoder Type


Digital  Protocol

ETSI-TS102  361-1
