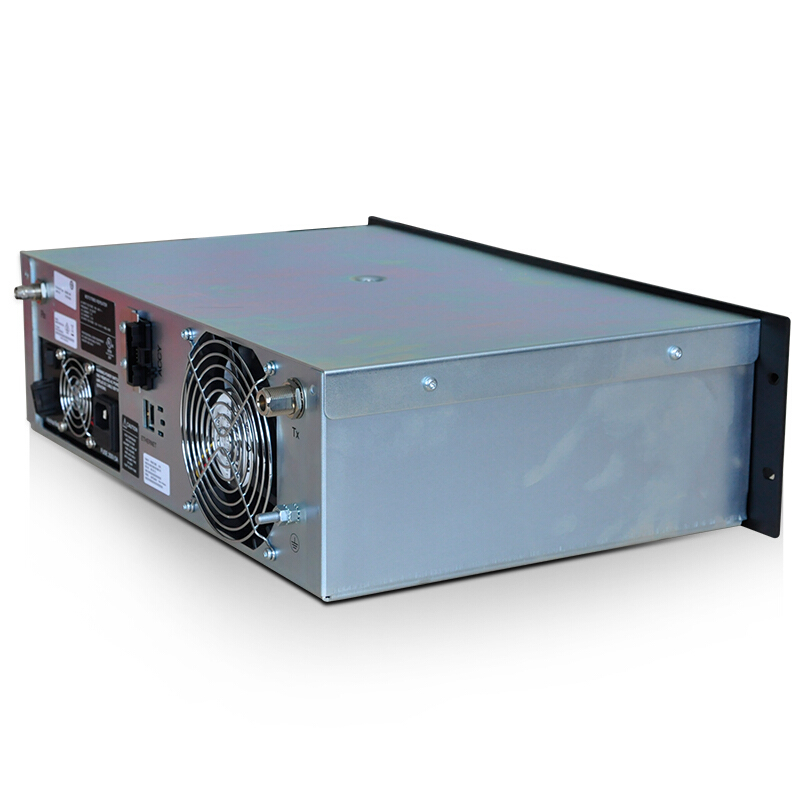

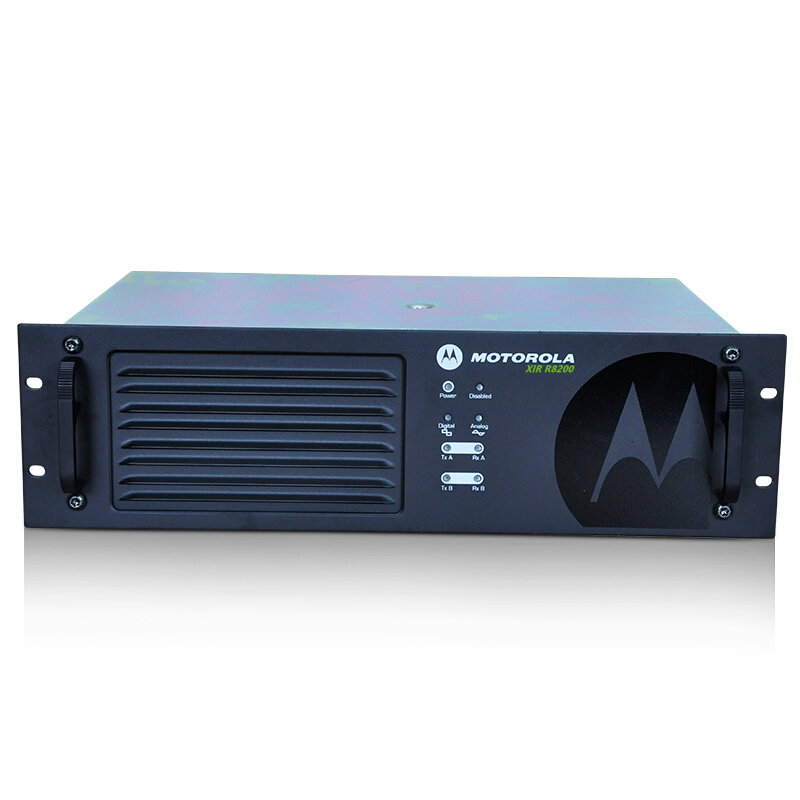

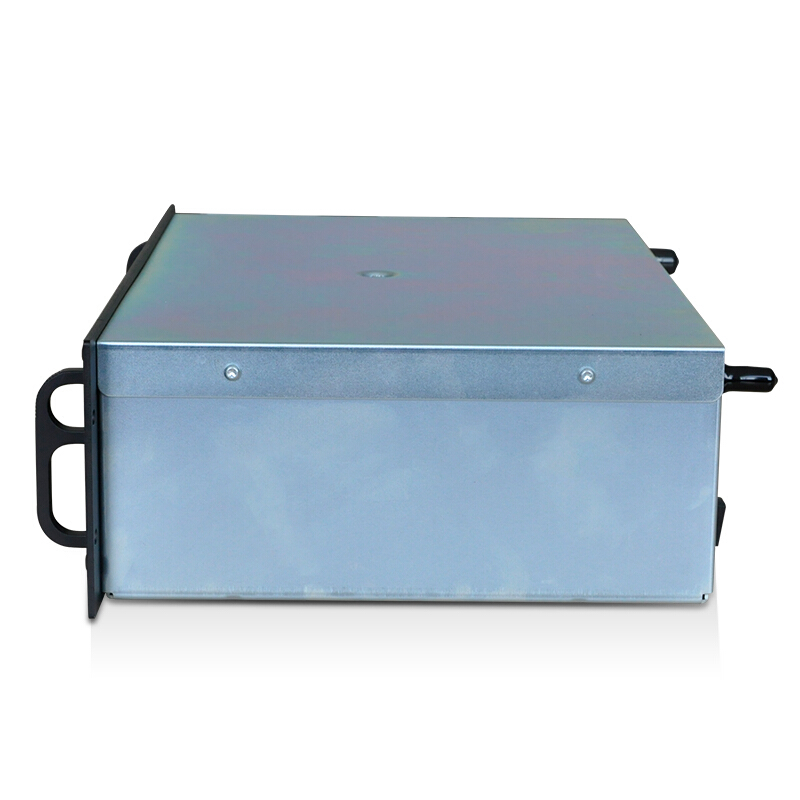

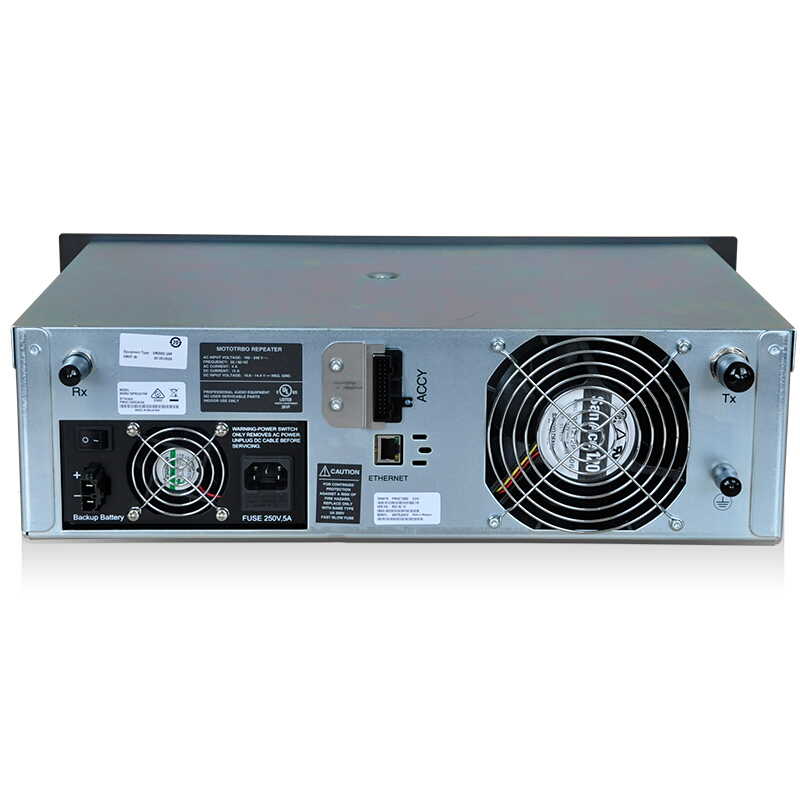

Motorola DMR 45W Powerful Repeater XIR R8200

Frequency Range: 136-174MHz/403-470MHz
Storage Channel: 16
Dimensions: 133 mm H x 483 mm W x 419 mm L
Weight: 14 kg (31 lbs)

EMAIL

1. Features



Motorola is a company of firsts with a rich heritage of innovation. We continue to invent what’s next – connecting people, delivering mobility and making technology personal. Versatile and powerful, MOTOTRBO combines the best in two-way radio functionality with digital technology, making it the ideal communication solution for your business. You get enhanced features, increased capacity, integrated data applications, exceptional voice quality and extended battery performance. This means more productive employees and lower operating costs for your business.

•  Uses Time-Division Multiple-Access (TDMA) digital technology to provide Twice The Calling Capacity (as compared to analog or FDMA radios) for the price of one frequency license. A second call doesn’t require a second repeater, saving you equipment costs.

•  Provides Easy Migration from analog to digital with the ability to operate in both analog and digital modes and utilizing the Dynamic Mixed Mode* repeater functionality allows for automatic switching between analog and digital mode on the same repeater.

•  The IP Site Connect* digital solution uses the Internet to extend coverage of your MOTOTRBO communication system to users anywhere in the world for dramatically improved customer service and increased productivity.

•  Capacity Plus* is a scalable, singlesite digital trunking solution that can expand the capacity of your MOTOTRBO communication to over a thousand radio users without adding new frequencies.

•  Motorola’s Application Developer Program enables the development of customized data applications that adapt MOTOTRBO radios to meet the unique needs of your business.


2. Specification

General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-470MHz

Memory Channel

16

Channel  Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Operating  Voltage

100 - 240 VAC, 50/60Hz

 Dimensions (L×W×H)

132.6 x 482.6 x 296.5 mm

 Weight

14 kg (31 lbs)

 Communication Range

 about  10-20km

Sealing

IP54, MIL-STD

Dust

Meets  MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/  20/25 kHz

Modulation Limiting

± 2.5 kHz @  12.5 kHz / ± 4.0 kHz @ 20 kHz1 / ± 5.0 kHz @ 25 kHz

FM Hum &  Noise

- 40dB @  12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated  Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent  Channel Power

- 60dBm @  12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency  Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 25  kHz

FM Modulation

12.5 kHz :  11K0F3e

25 kHz:  16K0F3e

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital  Vocoder Type

AMBE+2

Digital  Protocol

eTSI-TS102  361-1
