Motorola

  • Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601
  • Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601
  • Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601
  • Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601
Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601

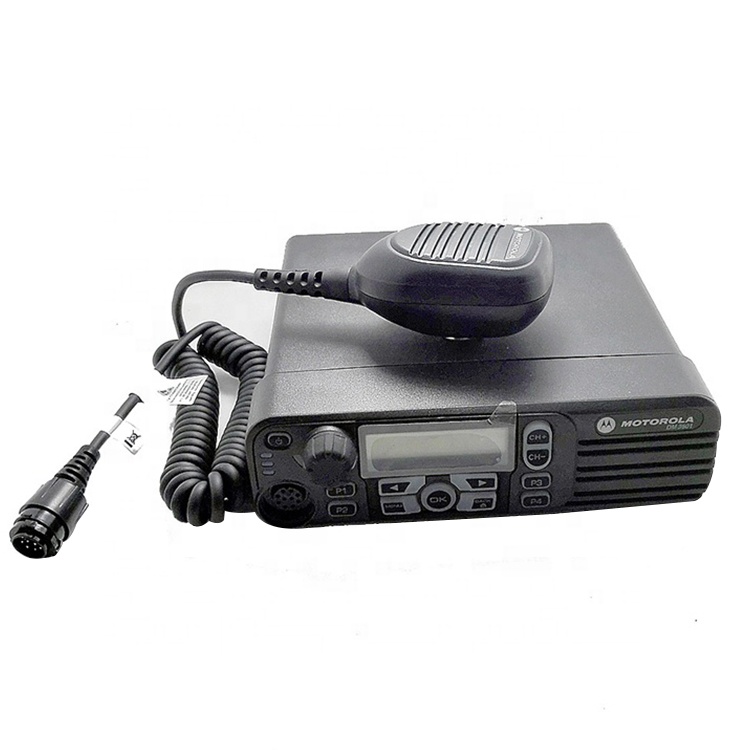

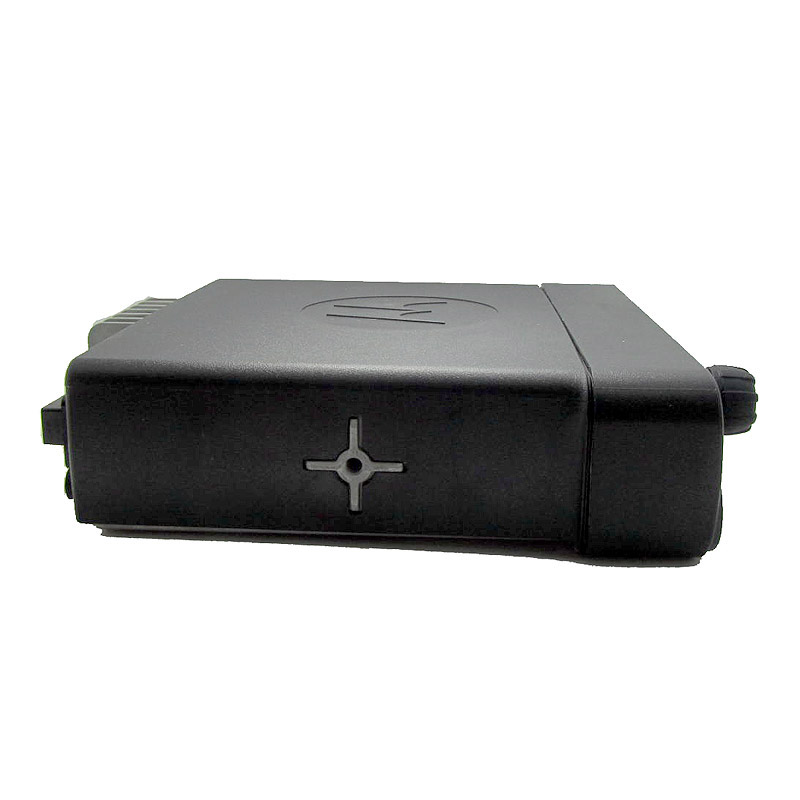

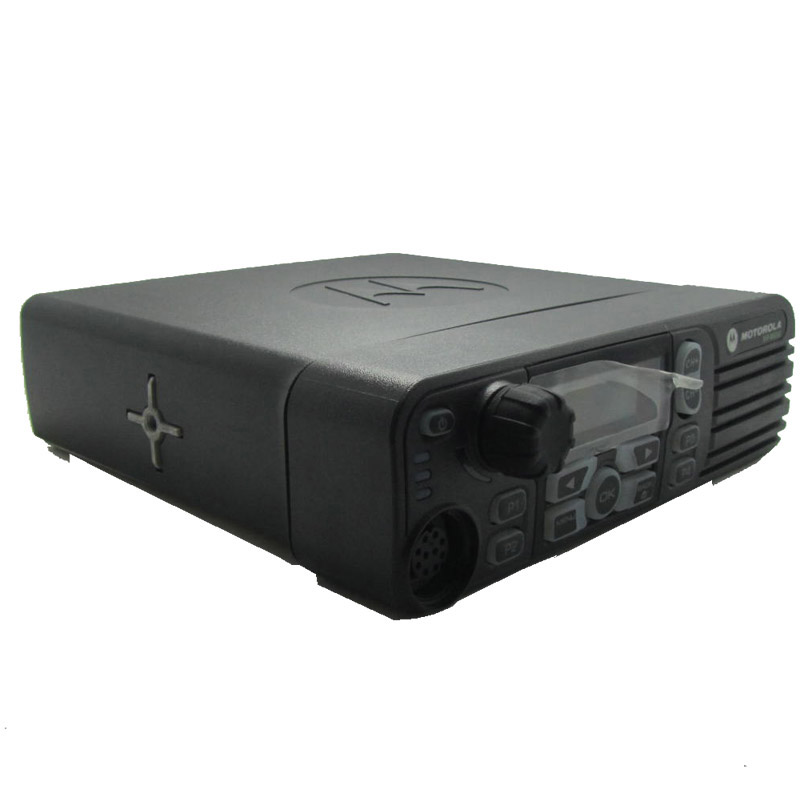

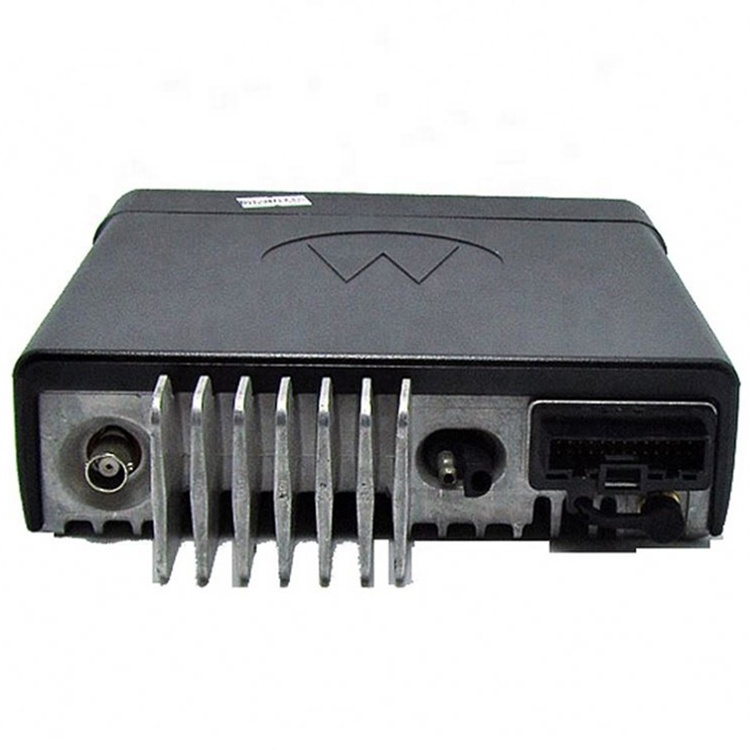

Motorola DMR Digital Two Way Mobile Radio With 1000 Channels DM3601

  • Frequency Range: 136-174 MHz (VHF) ; 403-470 MHz (UHF1); 450-527 MHz (UHF2)
  • Storage Channel: 160
  • Dimensions: 51 x 175 x 206 mm
  • Weight: 1.8 kg
  • Description: Motorola DM3601. The Motorola DM 3601 mobile two-way radio features integrated GPS, 1000 channels and an intuitive, menu-driven interface. It enables easy migration with operational capability in bot
  • INQUIRY   EMAIL

1. Features


Display Mobile Radio Standard Package

•  Radio with Display Control Head

•  Trunnion

•  Cabling (power cord)

•  Compact Microphone

•  Quick Reference Guide


Additional Features

•  Enhanced call management Encode/decode: emergency, remote monitor, push-to-talk ID, radio check, all call, radio disable

•  DM 3601 can transmit GPS coordinates

•  Dual-mode analogue/digital scan-facilitates a smooth migration from analogue to digital

•  Short free-form and quick text messaging

•  Remote Mount Control Head

•  Privacy Options

•  VOX capability

•  Multiple Site Support (IP Site Connect)



2. Specifications

General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-470MHz, 450-520MHz

Memory Channel

 1000

Channel Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Power Supply

13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground

 Dimensions (L×W×H)

51 x 175 x 206 mm

 Weight

1.8 kg

 Communication Range

 about 10-20km

Sealing

IP54, MIL-STD

Dust

Meets MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/ 20/25 kHz

Modulation Limiting

+/-2.5 kHz @ 12.5 kHz

+/- 4 kHz @ 20 kHz

+/- 5.0 kHz @ 25 kHz

FM Hum & Noise

- 40dB @ 12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent Channel Power

- 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 20/25 kHz

Intermodulation

70 dB

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital Vocoder Type

AMBE+2

GPS

Yes

3. Shipping


4. Payment


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
