Motorola

  • Motorola Digital Vehicle Long Distance Radio with GPS DM3401
  • Motorola Digital Vehicle Long Distance Radio with GPS DM3401
  • Motorola Digital Vehicle Long Distance Radio with GPS DM3401
  • Motorola Digital Vehicle Long Distance Radio with GPS DM3401
Motorola Digital Vehicle Long Distance Radio with GPS DM3401Motorola Digital Vehicle Long Distance Radio with GPS DM3401Motorola Digital Vehicle Long Distance Radio with GPS DM3401Motorola Digital Vehicle Long Distance Radio with GPS DM3401

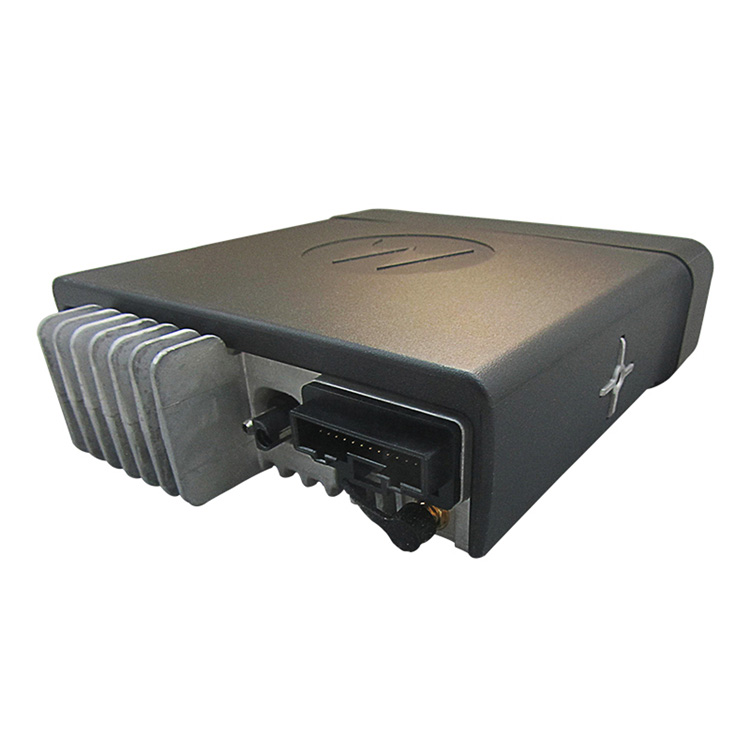

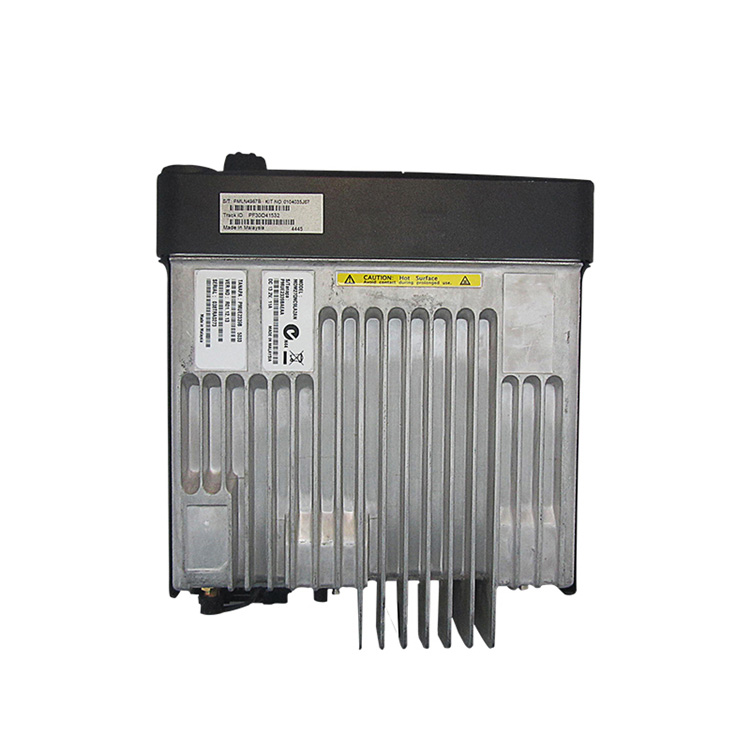

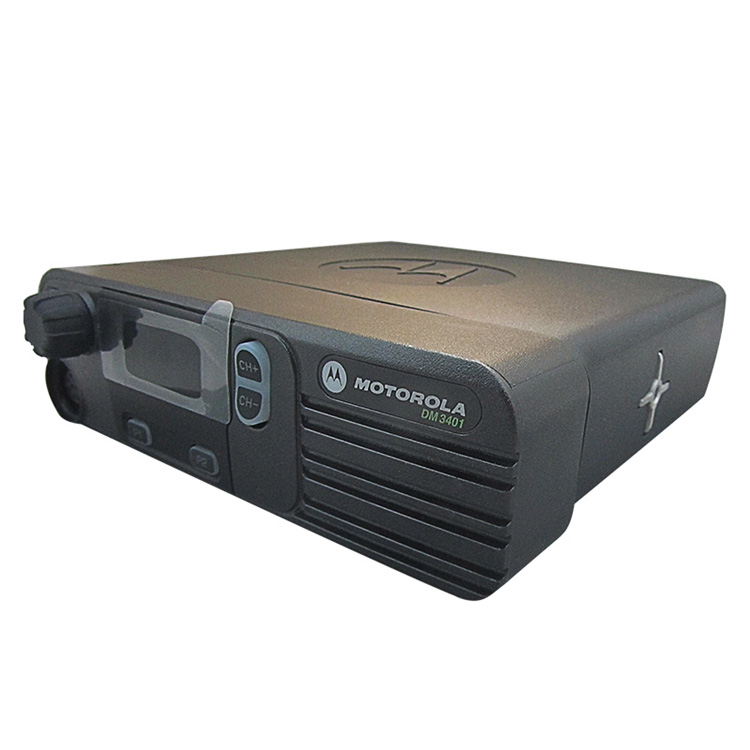

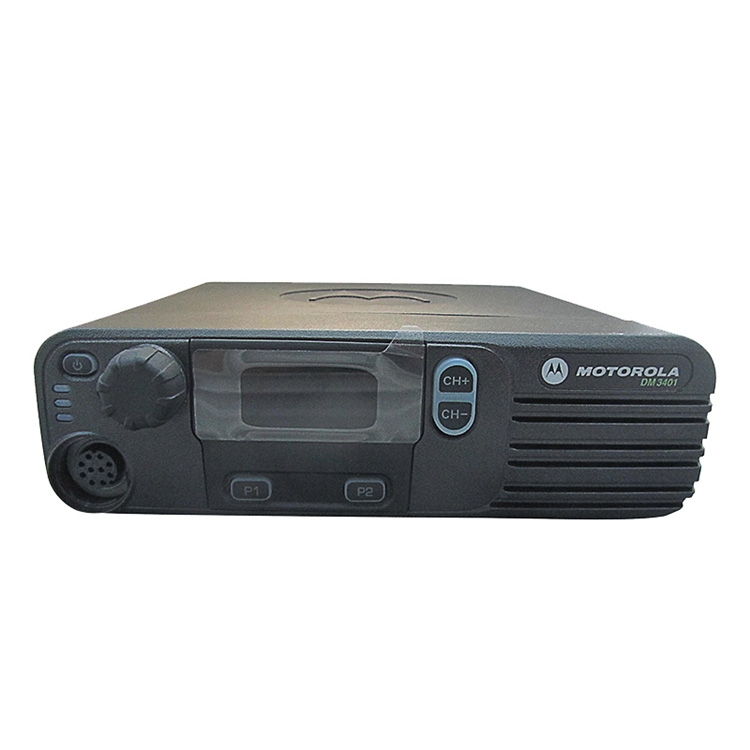

Motorola Digital Vehicle Long Distance Radio with GPS DM3401

  • Frequency Range: VHF:136-174 MHz ; UHF:403-470 MHz
  • Storage Channel: 32 Channels
  • Dimensions: 51 x 175 x 206 mm
  • Weight: 1.8 kg
  • Description: Motorola DM3401. The DM 3401 is a long distance mobile two-way radio, used for vehicle, car, truck, logistic, features 32 channels and an exceptionally bright numeric LED display. It enables easy mig
  • INQUIRY   EMAIL

1. Features


Numeric Display Mobile Radio Standard Package


• Radio with Numeric Display Control Head

• Trunnion

• Cabling (power cord)

• Compact Microphone

• Quick Reference Guide

Additional Features

• Enhanced call management

Encode: emergency, push-to-talk ID

Decode: radio check, remote monitor,  radio disable, all call

• DM3401 can transmit GPS coordinates

• Dual-mode analogue/digital scan -facilitates a smooth migration from analogue to digital

• Send quick text messaging via programmable

• Buttons


2. Specifications

General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-470MHz

Memory Channel

 32

Channel Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Power Supply

13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground

 Dimensions (L×W×H)

51 x 175 x 206 mm

 Weight

1.8 kg

 Communication Range

 about 10-20km

Sealing

IP54, MIL-STD

Dust

Meets MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/ 20/25 kHz

Modulation Limiting

+/-2.5 kHz @ 12.5 kHz

+/- 4 kHz @ 20 kHz

+/- 5.0 kHz @ 25 kHz

FM Hum & Noise

- 40dB @ 12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent Channel Power

- 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 20/25 kHz

Intermodulation

70 dB

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital Vocoder Type

AMBE+2

GPS

yes

3. Shipping


4. Payment


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
