Motorola

  • Motorola DMR Mobile Radio 45W Mototrbo DM4601e
  • Motorola DMR Mobile Radio 45W Mototrbo DM4601e
  • Motorola DMR Mobile Radio 45W Mototrbo DM4601e
  • Motorola DMR Mobile Radio 45W Mototrbo DM4601e
Motorola DMR Mobile Radio 45W Mototrbo DM4601eMotorola DMR Mobile Radio 45W Mototrbo DM4601eMotorola DMR Mobile Radio 45W Mototrbo DM4601eMotorola DMR Mobile Radio 45W Mototrbo DM4601e

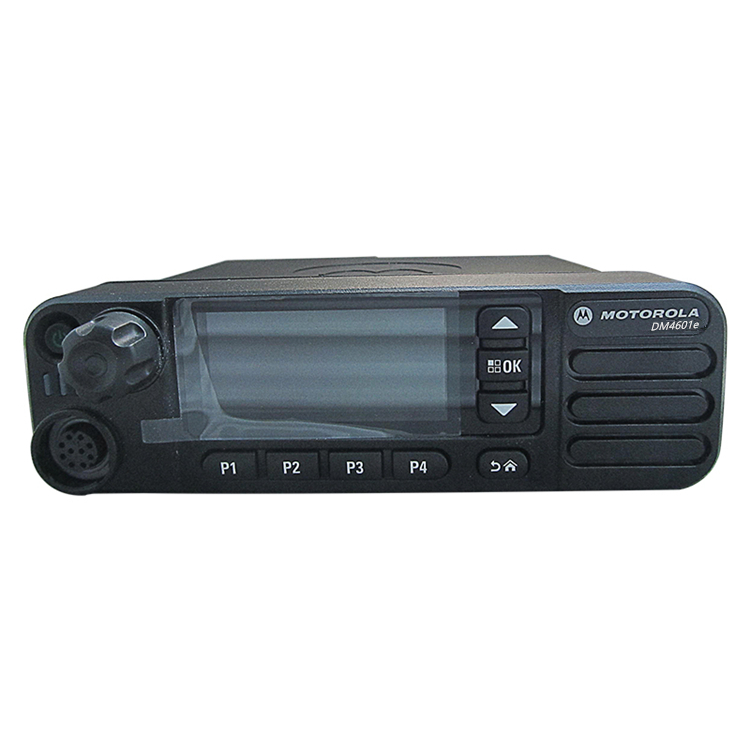

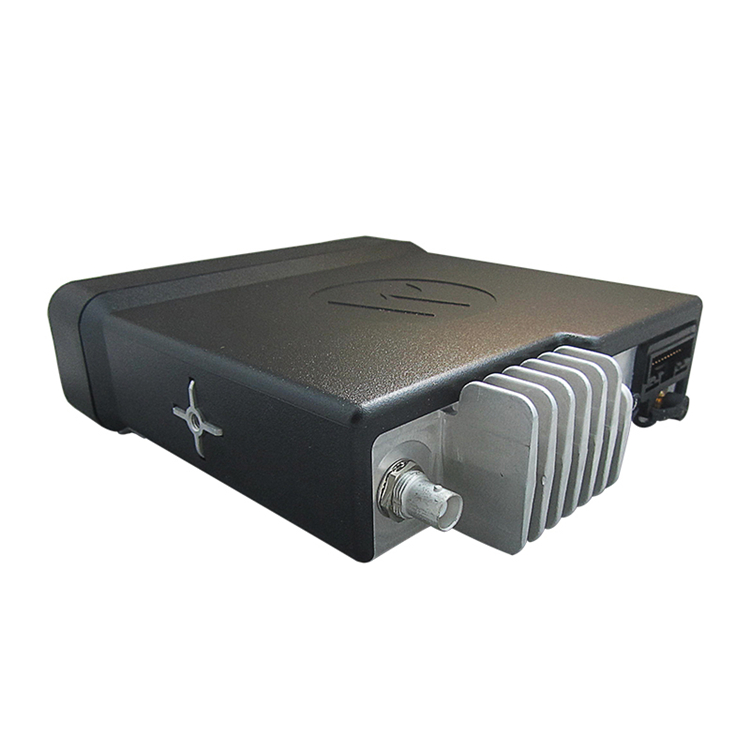

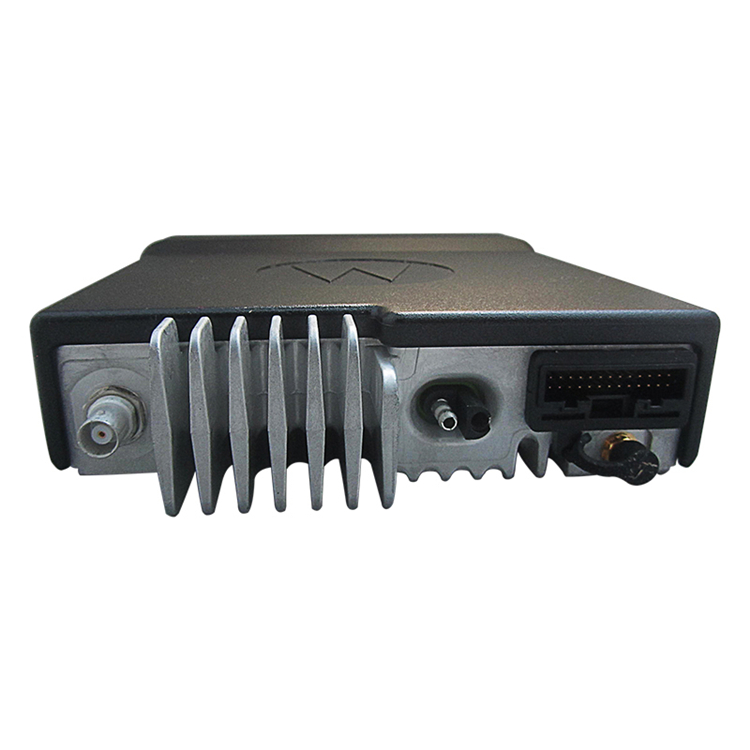

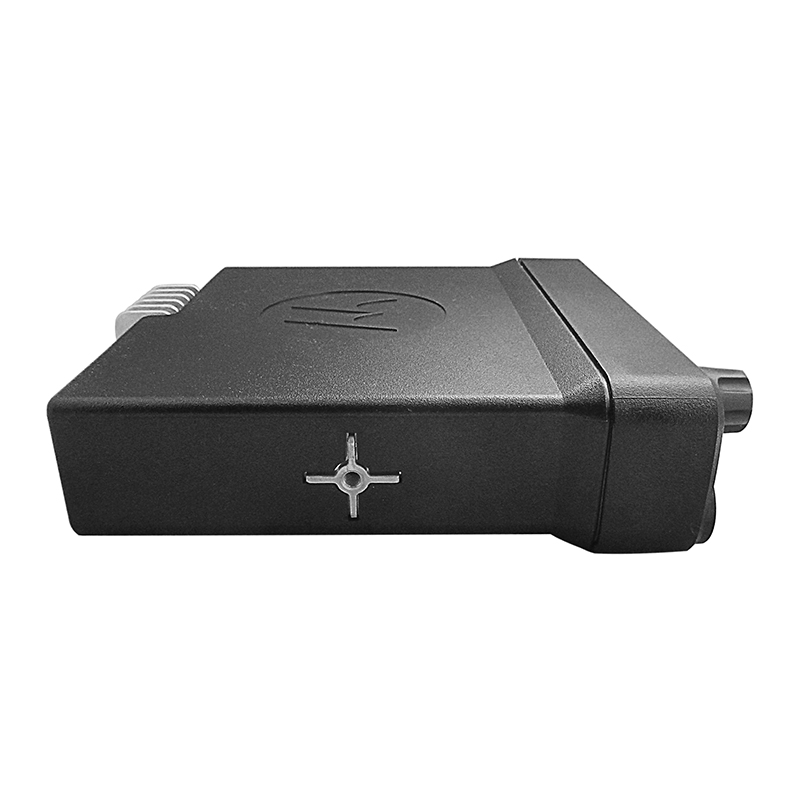

Motorola DMR Mobile Radio 45W Mototrbo DM4601e

  • Frequency Range: 136-174 MHz (VHF) ; 403-470 MHz (UHF1); 450-527 MHz (UHF2)
  • Storage Channel: 1000
  • Dimensions: 53.3 x 175.3 x 205.7 mm
  • Weight: 1.8 kg
  • Description: Motorola DM4601e This fully-featured mobile transforms your enterprise, delivering unrivaled voice and data communications with integrated Bluetooth audio and data*, integrated GPS*, text messaging a
  • INQUIRY   EMAIL

1. Features


With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The DM4000 Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.


CONNECTED

The MOTOTRBO DM4000e Series is a family of DMR-standard digital radios that delivers operationscritical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates, and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.

SAFE

Safeguard your staff with responsive push-to-talk technology. The quick access buttons on DM4000e Series radios can summon help with one touch, using

Transmit Interrupt to clear a channel when necessary. A range of safe driving accessories allow your workers to communicate hands-free, and Text-to-Speech technology helps your drivers keep their eyes on the road.

PRODUCTIVE

Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a high power audio amplifier, these radios deliver loud, clear speech, with background noise cancellation for better intelligibility. DM4000e Series radios are also ideal as a dispatch solution, with desktop microphones and a rugged, durable design for everyday use.


WHAT’S NEW IN THESE NEXT GENERATION RADIOS

•  Integrated Wi-Fi

•  Over-the-air software updates

•  Bluetooth 4.0

•  Indoor location tracking

•  Multi-constellation GNSS for increased location accuracy



2. Specifications

General Specifications

 Frequency Range

VHF:136MHz-174MHz
 UHF:403MHz-470MHz, 450-520MHz

Memory Channel

 1000

Channel Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Power Supply (Nominal)

12 V

 Dimensions (L×W×H)

53 x 175 x 206 mm

 Weight

1.8 kg

Max Current Drain, Standby

 0.8 A

Max Current Drain, Receive

2 A

Sealing

IP54, MIL-STD

Dust

Meets MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz/ 20/25 kHz

4FSK Digital Modulation

12.5 kHz Data: 7K60F1D and 7K60FXD, 12.5 kHz Voice: 7K60F1E and 7K60FXE, Combination of 12.5 kHz Voice and Data: 7K60F1W

FM Hum & Noise

- 40dB @ 12.5kHz; - 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 36dBm < 1 GHz; - 30dBm < 1 GHz

Adjacent Channel Power

- 60dBm @ 12.5kHz ; - 70dBm @ 20/25kHz

Receiver Specifications

Frequency Stability

+/- 0.5 ppm

Channel Spacing

12.5 kHz/ 20/25 kHz

Intermodulation

70 dB

Adjacent Channel Selectivity

60 Db @ 12.5 kHz,

70 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital Vocoder Type

AMBE+2

GPS

Yes

BLUETOOTH 4.0 STANDARD

Frequency Range 2400 - 2483.5 MHz

WIFI STANDARD

Frequency Range 2400 - 2483.5 MHz

3. Shipping


4. Payment


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
