Kenwood

  • Knewood Portable Two Way Radio TK3207G

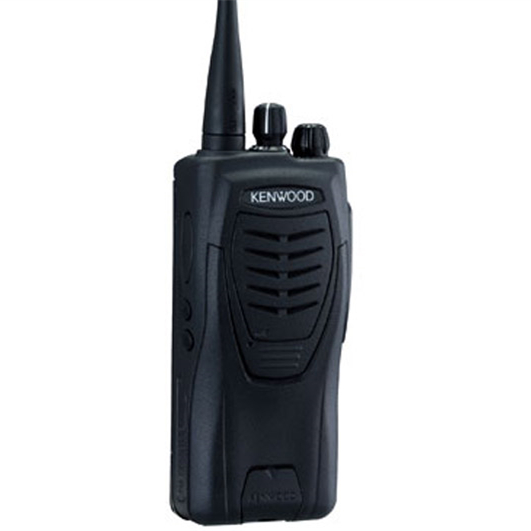

Knewood Portable Two Way Radio TK3207G

Knewood Portable Two Way Radio TK3207G

  • Frequency Range: C: 136-174 MHz C:440-480MHz; 400-430 MHz
  • Storage Channel: 16
  • Dimensions: 54 x 122 x 33 mm (with KNB-29N)
  • Weight: 360g (with KNB-29N)
  • Description: Knewood Portable Two Way Radio TK3207G. KENWOOD's compact TK-3207G transceiver, based on a proven design, represents ergonomic excellence. Pick one up and you'll immediately appreciate how easy it is
  • INQUIRY   EMAIL

1. Features


KENWOOD's compact TK-3207G transceiver, based on a proven design, represents ergonomic excellence. Pick one up and you'll immediately appreciate how easy it is to use. Powerful too, offering priority scan, built-in VOX, a voice scrambler and numerous other features. Plus you can count on reliable performance in all conditions, thanks to MIL-STD 810 & IP54/55 weatherproofing. Indoors or out, rain or shine, the smart new TK-3207G is a star performer!


Compact Design

The TK-3207G's rounded ergonomic contours naturally fit the hand for a comfortable hold, while the non-slip elastomer channel knob with improved torque characteristics ensures positive select operation.


Priority Scan & Talk Back

Scanning is a simple way to monitor multiple channels and the TK-3207G (16-channel capacity) offers both standard and priority scan modes. Talk Back allows immediate response to a received call without having to manually search or change channels.


Voice Cuide

A synthesized Voice Guide feature can automatically "read out" (in English) the selected channel number; it can also be used when scanning. This eyes-free user interface adds a new dimension for portables worn on a belt, in a pocket or in dimly lit environments. Also, you are less likely to miss a call as a result of an accidental channel change.


Internal Vox / Hands Free Ready

Enjoy the convenience of hands-free operation using the optional KHS-21 or KHS-1 headset accessory. The internal VOX (voice-operated transmission) provides PTT control with the simple act of talking. VOX is great for specialized tasks and events where hands-free, constant or repetitive communications are necessary (10-level sensitivity adjustment).


Built-In Voice Scrambler

A voice-inversion scrambler provides basic communications security against casual eavesdropping. It can also be used to ensure confidential communications with TK-2160/3160 transceivers.



FleetSync PTT & Selcall

The TK-3207G uses KENWOOD's FleetSync™ PTT ID protocol to identify units to a FleetSync™-capable dispatch operation. Alternatively, the PTT ID function can be set per channel to encode one of eight Fleet List ID's for selective calling of groups or individual units.


QT/DQT/DTMF

The industry standard tone/code squelching formats QT and DQT provide system access and group segregation on shared frequencies. DTMF PTT ID is included for dispatch operations or for a simple remote control application. The DTMF decode capabilities include a selective call ID, transpond with ID, "wild card" group calling and radio stun. Both selective calling formats (FleetSync™ and DTMF) have call alert tones and LED indications.


Programmable Function Keys

The two side PF Keys are programmable for any of the many functions available on the TK-3207G, permitting a customized fit for specific users.


Optimum Audio

Clear audio means confident communications. The TK-3207G is equipped with a large speaker offering a full half-watt of audio output, while tailored response characteristics provide optimum clarity even in noisy environments.


14-Hour Battery Pack

The standard KNB-29N Ni-MH 14-hour* pack offers extended power in a compact, lightweight design.*

Battery life is based on a 5% transmit/5% receive / 90% standby duty cycle.


Tough & Water Resistant

Built tough to take rough treatment in stride, the TK-3207G has passed the advanced IP54/55 and MIL-STD 810 "blowing rain" water resistance tests. It also meets or exceeds 11 other stringent MIL-STD 810 C/D/E/F environmental standards. Whatever the weather, the TK-3207G is ready to answer the call.


2. Specifications

GENERAL

Frequency Range

C: 136-174 MHz

C:440-480MHz; 400-430 MHz

Number of Channels

16

Channel Spacing

Wide/Narrow

25kHz/12.5kHz

Channel Step

5, 6.25kHz

Operating Voltage

7.5V DC±20%

Battery Life (5-5-90 duty cycle with battery saver off) with KNB-29N (1500mAh)

Approx. 14 hours

Operating Temperature Range

-30°C ~ +60°C
-10°C ~ +60°C when KNB-29N in use

Frequency Stability

±2.5ppm (-30°C ~ +60°C)

Antenna Impedance

50Ω

Channel Frequency Spread

Type 6

20MHz

Dimensions (W x H x D),
Projections not Included

Radio Only

54 x 122 x 21.1 mm

with KNB-29N

54 x 122 x 33 mm

Weight (net)

Radio Only

160g

with KNB-29N

360g

RECEIVER (Measurements made per TIA/EIA-603)

Sensitivity (12dB SINAD)

Wide/Narrow

0.25µV/0.28µV

Selectivity

Wide/Narrow

70dB/60dB

Intermodulation Distortion

Wide/Narrow

65dB/60dB

Spurious Response

60dB

Audio Output

500mW with less than 10% distortion

TRANSMITTER (Measurements made per TIA/EIA-603)

RF Power Output

High/Low

4W/1W

Spurious Response

65dB

Modulation

Wide/Narrow

16KOF3E/11KOF3E

FM Noise

Wide/Narrow

45/40dB

Audio Distortion

Less than 5%


3. Shipping




4. Payment Terms


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
