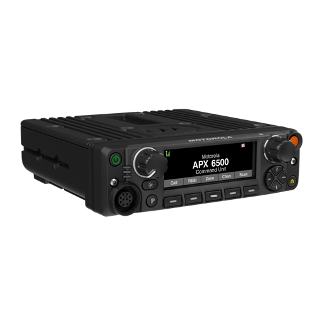

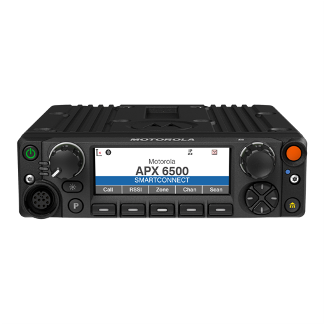

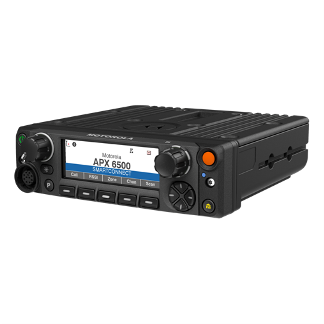

MOTOROLA APX 6500 SINGLE BAND P25 ASTRO MOBILE RADIO

Frequency Range: 700/800MHZ; VHF 136-174MHz; UHF Range 1:380-470MHz; UHF Range 2:450-520MHz
Channel Capacity: 1000
Dimensions (HxWxD): 50.8 x 180.3 x 63.5
Weight: 3.0 kg

EMAIL



MOTOROLA APX 6500 SINGLE BAND P25 ASTRO MOBILE RADIO

1. Features


The rugged and compact design of the evolved APX™ 6500 mobile radio is designed to maximize the real estate in your vehicle and keep your entire agency safely connected. Now with integrated Wi-Fi and SmartConnect, the APX 6500 gives you more ways to manage your radio and stay connected. And when your vehicle sustains a high impact, the radio can automatically alert dispatch.

Security is more important than ever. Criminals are testing you on the streets and over the air. Fight back with multiple levels of protection to encrypt and secure your voice and data communication against eavesdropping.

Stay connected, keep safe and secure your communications with the APX 6500 single-band mobile radio

Get Connected and Stay Connected
SmartConnect can reroute P25 voice and data communication over broadband via built-in Wi-Fi or a tethered LTE/satellite router. Stay connected to your P25 radio system, even when outside of P25 coverage.

Flexible, Easy Installation
The APX 6500 is ideal for a growing ecosystem of vehicle installations. Its small and lightweight form factor simplifies installation.

Keep Voice and Data Protected
Multiple hardware encryption algorithms secure your voice and data while two-factor authentication ensures only valid radio users can access your system and critical databases.

Fast Information Retrieval
Simply press the ViQi button on the keypad microphone and ask ViQi for the information you need. Keep your eyes on the situation and free up dispatchers to focus on more critical events.

Voice and Data, All at Once
Update your radio and get new software at the speed of Wi-Fi without interrupting your voice communication.

All the Support you Need
Motorola Solutions offers three levels of service plans – Essential, Advanced and Premier - so you can manage in the way that suits you best.

FLEXIBLE PLATFORM

Interchangeable control heads that best support your operational needs - O2, O3, O5, O7 and O9

Two transceiver options - high-power and mid-power

Dual control head support offered on the O2, O5, O7 and O9 control heads .

EASY TO INSTALL AND EFFORTLESS TO USE

Mid-power model fits into any existing XTL footprint, so you can reuse mounting holes and cables

High-power model trunnion design lets you remove the radio without removing the cables.

12 character RF ID label helps you track information without uninstalling your radio.

CUTTING-EDGE TECHNOLOGY AND ADVANCED FEATURES

Project 25 Phase 2 technology provides twice the voice capacity
Integrated GPS lets you locate and track an individual or vehicle

Advanced features like intelligent lighting, radio profiles and text messaging improve communication and coordination

With O5 Standard Control Head

Tri-color display with intelligent lighting

2 lines of text 14 characters max / 1 line of icons / 1 line of menus

Available with Keypad Microphone

Multiple control head configuration (up to 2)

Display contrast selector


2. Specifications

GENERAL SPECIFICATIONS

Channel Capacity

1000

Frequency

764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz

Operation

13.8V DC ±20% Negative Ground

Maximum Frequency Separation

Full Bandsplit

Audio Response

+1, -3 dB

Rated RF Output Power Adj

10-35 W (764-870 MHz), 10-50 W or 25-110 W (136-174 MHz), 10-40 W or 25-110 W (380-470 MHz), 10-45 W (450-485 MHz), 10-40 W (485-512 MHz), 10-25 W (512-520 MHz)

Dimensions (HxWxD)

50.8 x 180.3 x 63.5

Weight

3.0 kg

RECEIVER

Frequency Range/Bandsplits

764-776 MHz; 851-870 MHz; 136-174 MHz; 380-520 MHz

Channel Spacing

25/20/12.5 kHz

Maximum Frequency Separation

Full Bandsplit

Audio Output Power at 3% distortion*

7.5 W or 15 W ++

Selectivity (25 kHz / 12.5 kHz)1, 5

79 dB / 72 dB; 78 dB / 72 dB ;82 dB / 77 dB ;80 dB / 74 dB

Intermodulation Rejection1

81 dB ;80 dB; 82 dB; 80 dB

Audio Distortion at Rated

1.2% ;1.3%; 1.3%; 1.2%

Spurious Rejection1

98 dB ;98 dB; 92 dB; 98 dB

ENCRYPTION

Supported Encryption Algorithms ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm

Encryption Algorithm Capacity

8

Encryption Keys per Radio

Module capable of storing 1024 keys.Programmable for 128 Common Key Reference (CKR) or 16 Physical Identifier (PID)

GPS/GNSS SPECIFICATIONS

Constellations GPS & GLONASS

Water and Dust Intrusion

IP68 (2 meters, 4 hours)

TRANSMITTER

Frequency

 764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz

Channel Spacing

 25/20/12.5 kHz


3. Shipping

4. Payment Terms


EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
