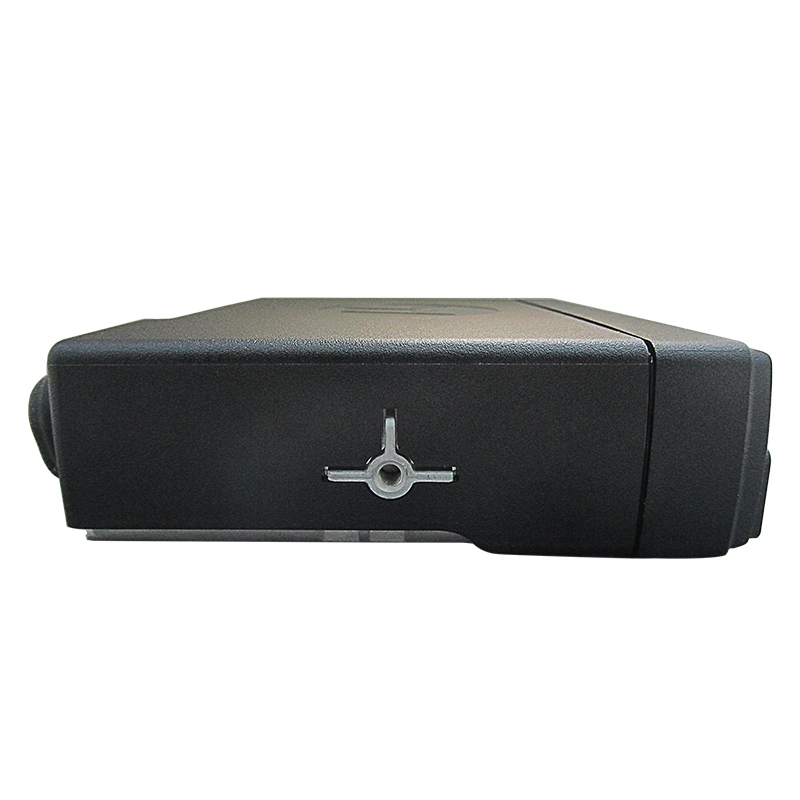

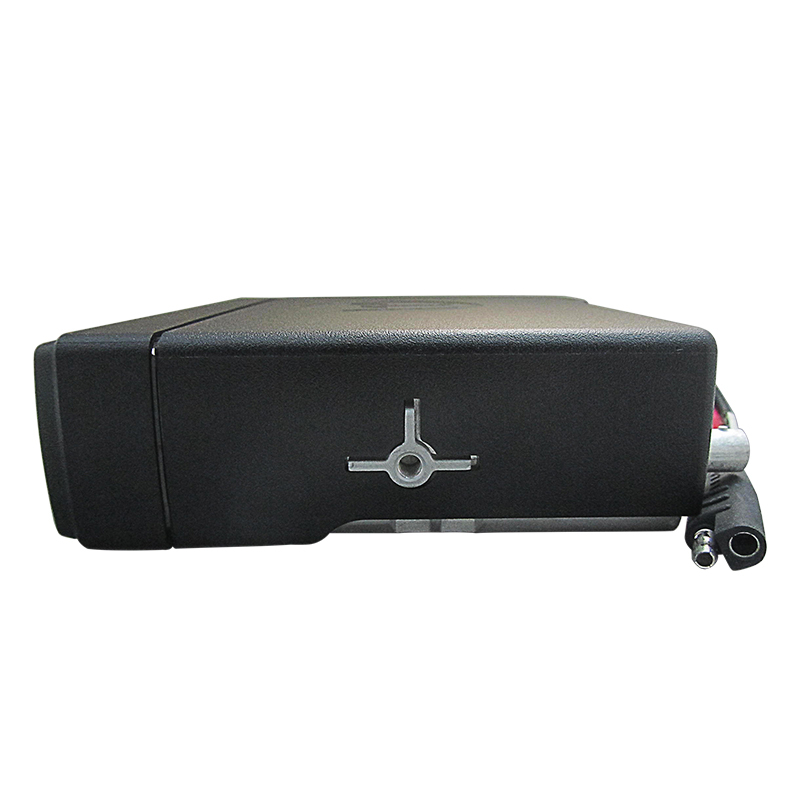

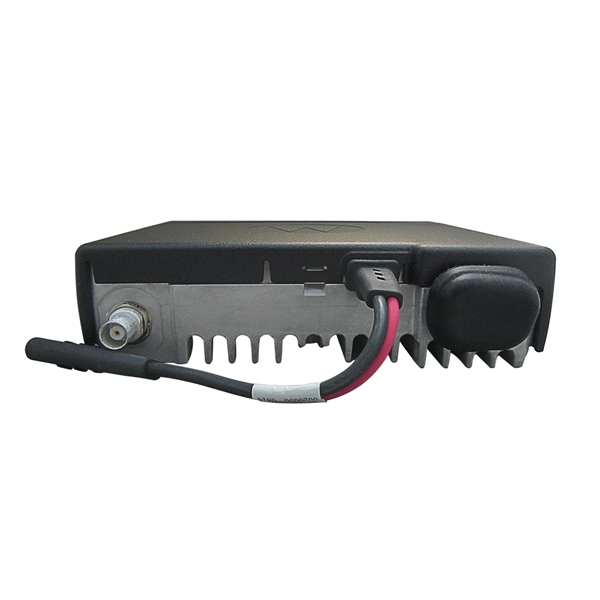

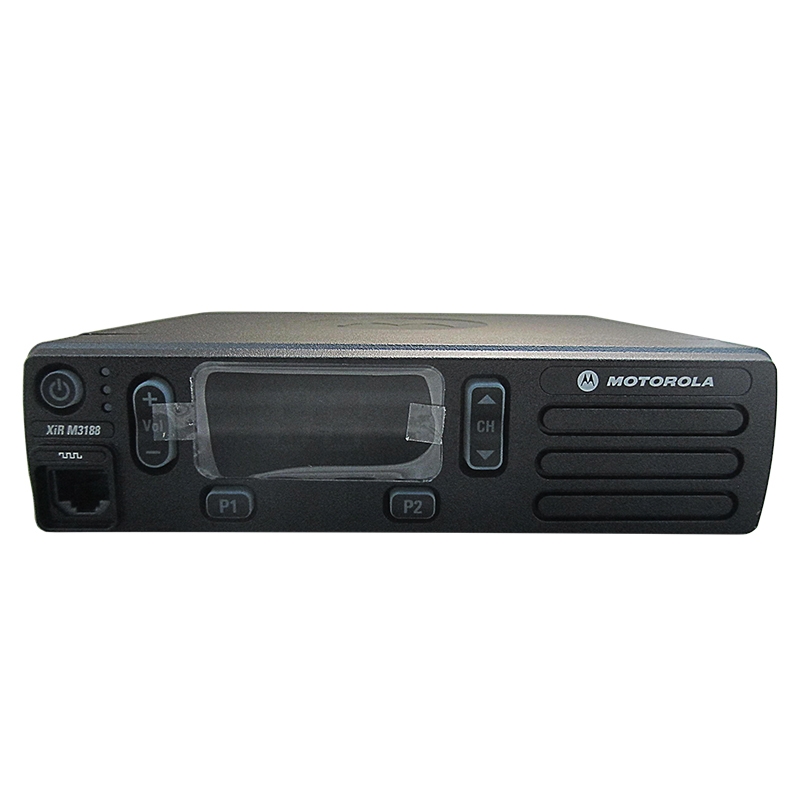

DMR Mobile Vehicle 25W Radio Motorola XIR M3188

Frequency Range: VHF 136-174MHz; UHF 403-470MHz
Storage Channel: 16 Channels
Dimensions: 44*1169*134MM
Weight: 1.3 kg


1. Features

The rugged MOTOTRBO XiR M3188 and XiR M3688 are available as analog/digital mobile radios that offer all the benefits of the latest technology – from superior audio to greater coverage. These affordable performers are compatible with advanced MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritize critical communications.

With its bright, high contrast alphanumeric screen, the XiR M3688 allows drivers to see important information such as caller Id at a glance. The XiR M3188 offers lower capacity and a simpler numeric display.

The XiR M3188 and XiR M3688 are so easy to use and deliver such clear voice communications, you’ll be amazed how efficient your operation can be.


• Analogue / digital

• Voice Communications

• Canned Text Message

• dual Capacity direct Mode

• Transmit Interrupt (decode only)

• Voice announcement

• Numeric display (XiR M3188)

• Digital Mobile Radio (DMR) Standards Compliant

• IP54 Rated

OPTIONS •   Radio Management Suite

2. Specifications

General Specifications

 Frequency Range


Memory Channel


Channel  Spacing

12.5/20/25 kHz

Power Output

1 - 25W; 25 - 45W

Power Supply

13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground

 Dimensions (L×W×H)

1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)


2,9 Ibs (1.3 kg)

 Communication Range

 about  10-20km




Meets  MIL-STD 810-C,D&E and TIA/EIA 603

Transmitter Specifications

Channel Spacing

12.5 kHz / 25 kHz

Modulation Limiting

± 2.5 kHz @  12.5 kHz / ± 5.0 kHz @ 25 kHz

FM Hum &  Noise

-40 dB @ 12.5  kHz / -45 dB @ 25 kHz

Conducted/Radiated  Emissions

-36 dBm < 1 GHz / -30 dBm > 1 GHz

Adjacent  Channel Power

60 dB @ 12.5  kHz / 70 dB @ 25 kHz

Receiver Specifications

Frequency  Stability

+/- 0.5ppm

Channel Spacing

12.5 kHz / 25  kHz


70 dB

adjacent  Channel Selectivity (TIa603d)

50 dB @ 12.5  kHz

75 dB @ 20/25kHz

Audio Response

+ 1, -3dB

Digital  Vocoder Type

AMBE +2™

Digital  Protocol

ETSI TS 102  361-1, -2, -3
