Kenwood

  • Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840
  • Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840
  • Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840
  • Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840
Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840

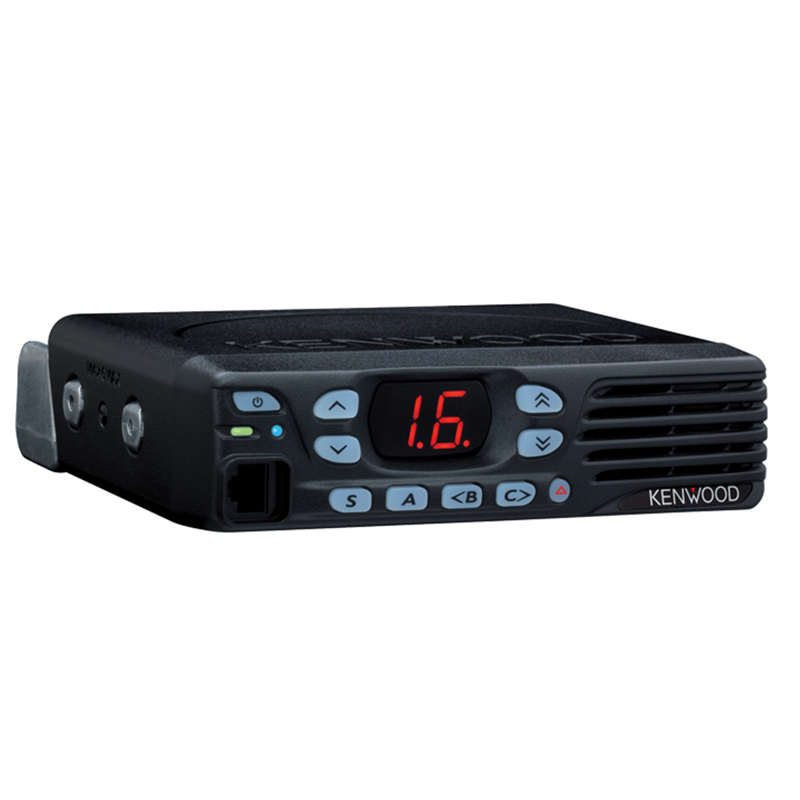

Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840

  • Frequency Range: VHF 136-174MHz;
  • Storage Channel: 32
  • Dimensions: 160 x 43 x 122.6 mm
  • Weight: 2.42 lb (1.10 kg)
  • Description: Kenwood Mobile Digital Radio Car Audio UHF Transceiver TKD840. Introducing the TK-D740/D840 mobiles, launched together with TK-D240/D340 portables and completing KENWOOD’s impressive DMR system line-
  • INQUIRY   EMAIL

1. Features


Introducing the new TK-D740V/D840U mobiles, launched together with the new TK-D240V/D340U portables and completing KENWOOD’s impressive DMR system line-up. Thanks to compliance with MIL-STD and IP54 environmental standards, they can be relied on through thick and thin. As well as handling both analog and digital communications, these user-friendly DMR radios can even operate in direct mode, without a repeater. They also offer KENWOOD Call Interrupt and also benefit in having KENWOOD enhanced audio quality. These truly resourceful team members will enable you to make the most of your legacy analog equipment while also benefitting from digital communications.


Two-slot TDMA

Belonging to the DMR Tier II category, which covers licensed conventional systems, these radios are specified for 2-slot Time Division Multiple Access (TDMA) operation in 12.5 kHz channels. This means they can offer greater spectrum efficiency.

Two-in-One – Digital & Analog

These DMR radios can operate in both digital and FM analog modes, switching automatically as needed. Interoperability with legacy analog radios allows organizations to migrate to full digital at their own pace.

Dual-slot Direct Mode

Up to two simultaneous direct-mode subscriber calls can be supported in a 12.5 kHz channel, without requiring a repeater, thus doubling channel capacity.


Call Interruption

In an emergency or whenever a user needs to interrupt a call, Call Interrupt is available in both direct and repeater modes, while encoding or decoding. Also featured are emergency functions to help protect staff in remote areas, etc.

Tough All-terrain

These TK-D740V/D840U mobile radios conform to MIL-STD C/D/E/F/G standards for ruggedness, and are IP54 rated for dust & water protection, making them more than capable of withstanding harsh operating conditions.*

*Applies only when using a microphone KMC-35 or KMC-36.

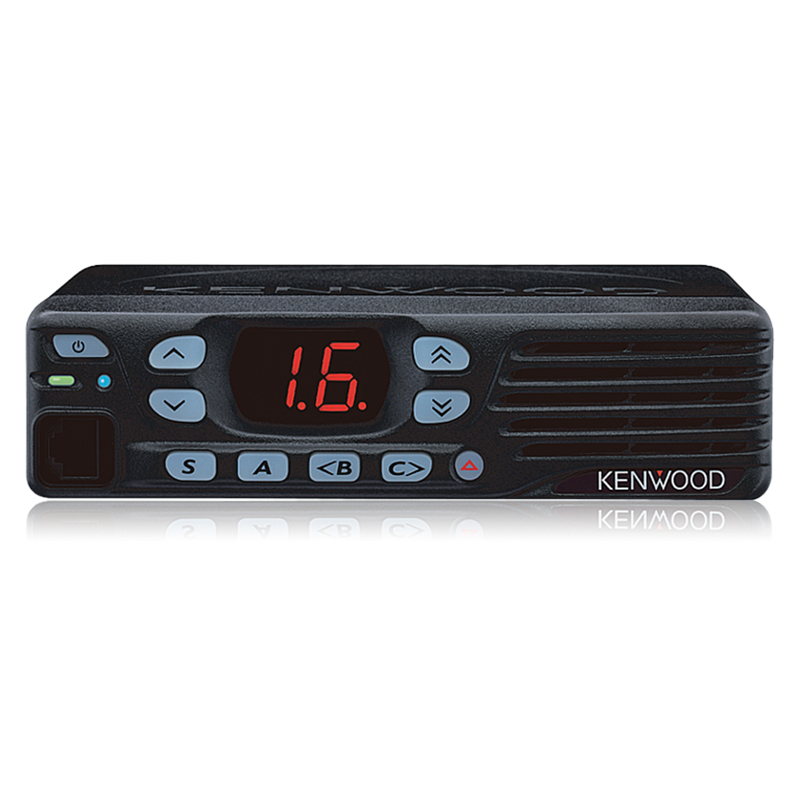

2-Digit LED Channel Display with Brightness Control

The large 2-digit LED display provides a clear indication of which channel is being used, and the brightness level can be adjusted (high/low) to suit the time of day and ambient light conditions. The front panel also features 9 programmable function keys for enhanced operating ease.

Programmable Blue LED

The blue LED indicator can be customized to provide useful status information. For example, it can be used in combination with the orange LED for Selective Call differentiation.

Clear, Powerful Audio

A radio’s most important quality is clarity – being able to hear, loud and clear, what the other party is saying, and these mobiles deliver just that. For instance, the AMBE+2™ VOCODER technology accurately replicates natural human speech nuances for superior voice quality, even with high levels of ambient noise. Additionally, Voice Announcement can confirm the channel number, so there is no need to look at the display. English is the default language, but Spanish and French are also available*.

*Availability varies depending on the region.


Other features

• Max. 32 ch in 2 zones (16 ch per zone)

• Wide 70 MHz UHF coverage

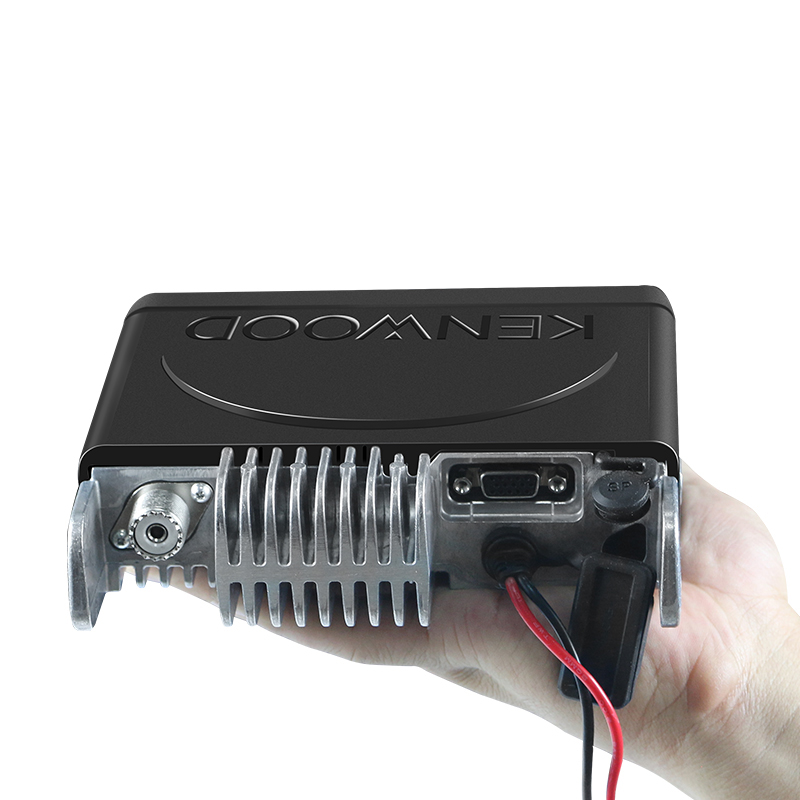

• External D-sub 15-pin (DE-15) interface

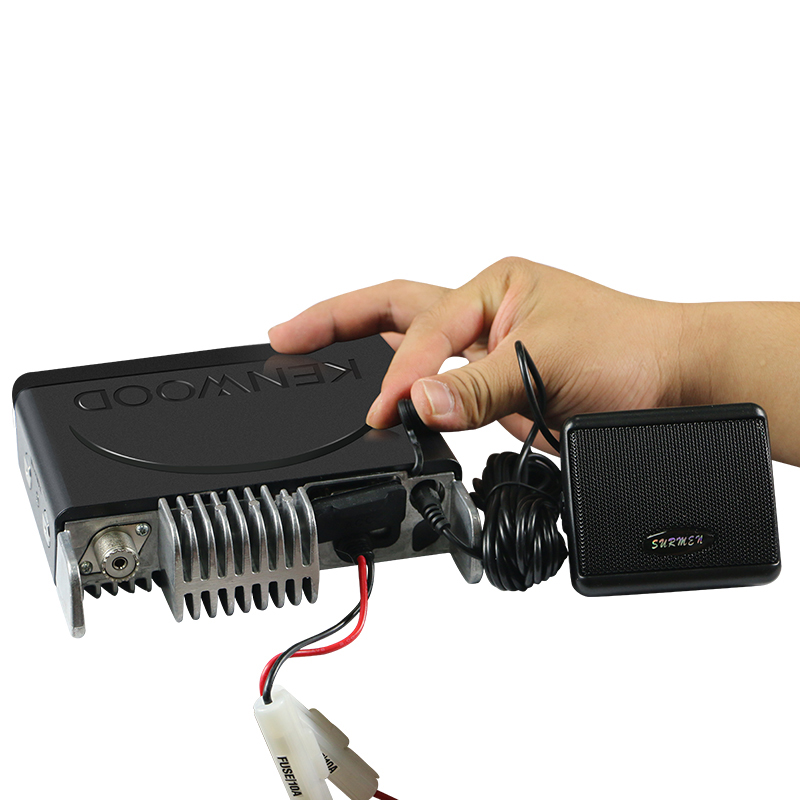

• External speaker connector (3.5 mm diameter phone jack)

• Audio output power 4 W @ 4 Ω

• GPS connectivity (available later)

• Single zone and Normal scanning functions

• Horn alert/P.A. function

• Ignition sensing

• Password protection (read/overwrite)

• Minimum volume setting

• Embedded message

• Selective call alert LED

• Late entry

• Analog signalling: QT/DQT, FleetSync, 2-tone (available later)

• Compander per channel

• Squelch level



2. Specifications



TK-D740V

TK-D840U

GENERAL

Frequency Range

Type 1

136-174 MHz

400-470 MHz

Number of Channels

32 ch / 2 zones (Max. 16 ch/ zone)

Channel Spacing

Analog

25*/12.5 kHz

Digital

12.5kHz

Operating Voltage

13.6 V DC ±15 %

Operating Temperature Range

-22 ºF to +140 ºF (-30 ºC to +60 ºC)

Frequency Stability

±2.0ppm

±1.0ppm

Antenna Impedance

50Ω

Dimensions
(W x H x D)

Projections not
included

6.29 x 1.69 x 4.82 in
(160 x 43 x 122.6 mm)

Weight (net)

2.42 lb (1.10 kg)

FCC ID

Type 1

K44475600

K44475701

Type 2

K44475700

RECEIVER

Sensitivity

Digital 1 % BER

0.45μV

Digital 5 % BER

0.3μV

Analog (12 dB SINAD)
@ 25/12.5 kHz

0.25μV

Adjacent Channel
Selectivity

Analog @ 25*/12.5 kHz

74/68 dB

Intermodulation
Distortion

Analog

73 dB

Spurious Response

Analog

75 dB

Audio Distortion

Less than 5 %

Audio Output

4 W/4 Ω

TRANSMITTER

RF Power Output

25-5 W

25-5 W

Spurious Response

73 dB

75 dB

FM Hum & Noise

Analog @ 25*/12.5 kHz

45/40 dB

Audio Distortion

Less than 5 %

Emission Designator

16K0F3E, 14K0F2D, 14K0F3E, 12K0F2D,
11K0F3E, 7K50F2D, 7K60FXE, 7K60FXD
