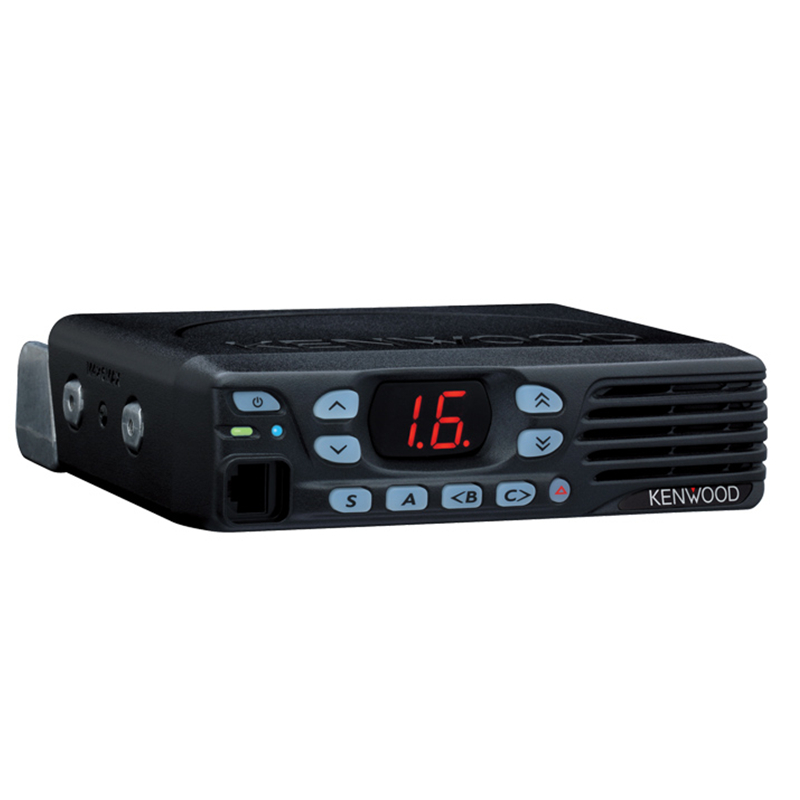

Kenwood Mobile Digital Radio Car Audio VHF Transceiver TKD740

Kenwood Mobile Digital Radio Car Audio VHF Transceiver TKD740

Frequency Range: VHF 136-174MHz;
Storage Channel: 32
Dimensions: 160 x 43 x 122.6 mm
Weight: 2.42 lb (1.10 kg)

1. Features

Introducing the new TK-D740V/D840U mobiles, launched together with the new TK-D240V/D340U portables and completing KENWOOD’s impressive DMR system line-up. Thanks to compliance with MIL-STD and IP54 environmental standards, they can be relied on through thick and thin. As well as handling both analog and digital communications, these user-friendly DMR radios can even operate in direct mode, without a repeater. They also offer KENWOOD Call Interrupt and also benefit in having KENWOOD enhanced audio quality. These truly resourceful team members will enable you to make the most of your legacy analog equipment while also benefitting from digital communications.

Two-slot TDMA

Belonging to the DMR Tier II category, which covers licensed conventional systems, these radios are specified for 2-slot Time Division Multiple Access (TDMA) operation in 12.5 kHz channels. This means they can offer greater spectrum efficiency.

Two-in-One – Digital & Analog

These DMR radios can operate in both digital and FM analog modes, switching automatically as needed. Interoperability with legacy analog radios allows organizations to migrate to full digital at their own pace.

Dual-slot Direct Mode

Up to two simultaneous direct-mode subscriber calls can be supported in a 12.5 kHz channel, without requiring a repeater, thus doubling channel capacity.

Call Interruption

In an emergency or whenever a user needs to interrupt a call, Call Interrupt is available in both direct and repeater modes, while encoding or decoding. Also featured are emergency functions to help protect staff in remote areas, etc.

Tough All-terrain

These TK-D740V/D840U mobile radios conform to MIL-STD C/D/E/F/G standards for ruggedness, and are IP54 rated for dust & water protection, making them more than capable of withstanding harsh operating conditions.*

*Applies only when using a microphone KMC-35 or KMC-36.

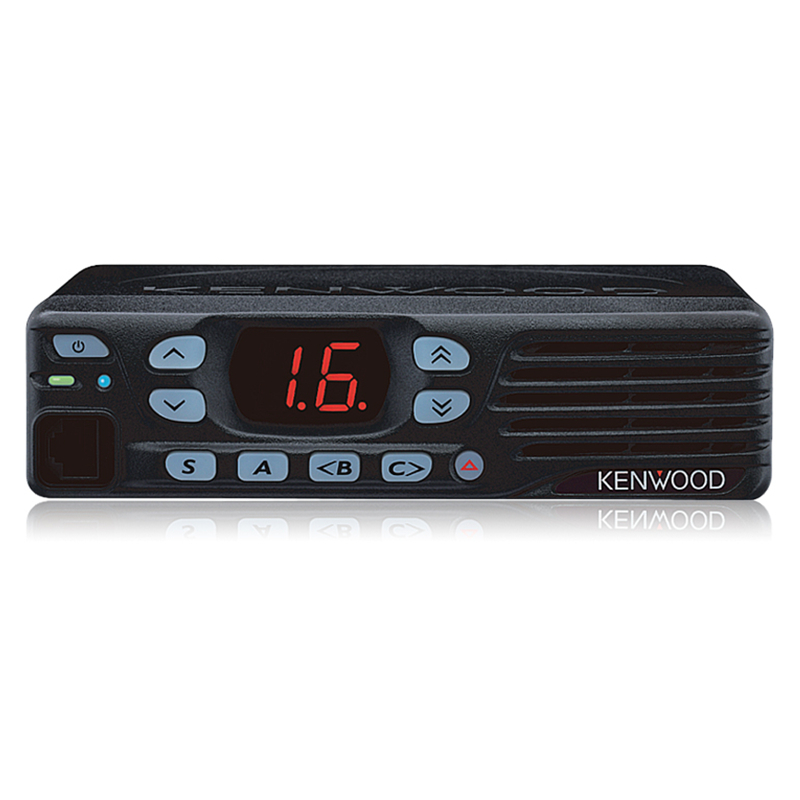

2-Digit LED Channel Display with Brightness Control

The large 2-digit LED display provides a clear indication of which channel is being used, and the brightness level can be adjusted (high/low) to suit the time of day and ambient light conditions. The front panel also features 9 programmable function keys for enhanced operating ease.

Programmable Blue LED

The blue LED indicator can be customized to provide useful status information. For example, it can be used in combination with the orange LED for Selective Call differentiation.

Clear, Powerful Audio

A radio’s most important quality is clarity – being able to hear, loud and clear, what the other party is saying, and these mobiles deliver just that. For instance, the AMBE+2™ VOCODER technology accurately replicates natural human speech nuances for superior voice quality, even with high levels of ambient noise. Additionally, Voice Announcement can confirm the channel number, so there is no need to look at the display. English is the default language, but Spanish and French are also available*.

*Availability varies depending on the region.

Other features

• Max. 32 ch in 2 zones (16 ch per zone)

• Wide 70 MHz UHF coverage

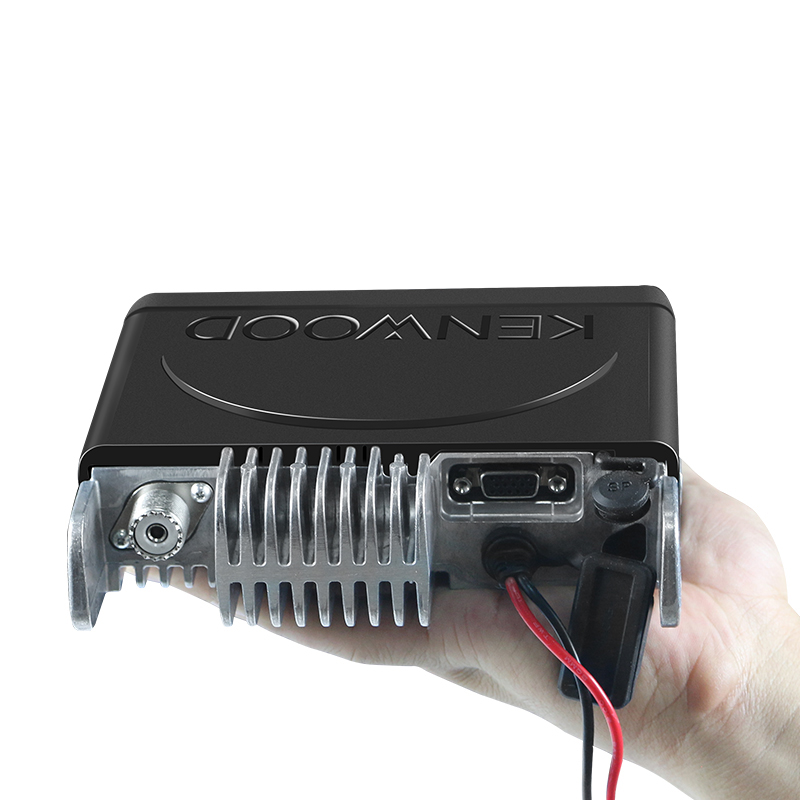

• External D-sub 15-pin (DE-15) interface

• External speaker connector (3.5 mm diameter phone jack)

• Audio output power 4 W @ 4 Ω

• GPS connectivity (available later)

• Single zone and Normal scanning functions

• Horn alert/P.A. function

• Ignition sensing

• Password protection (read/overwrite)

• Minimum volume setting

• Embedded message

• Selective call alert LED

• Late entry

• Analog signalling: QT/DQT, FleetSync, 2-tone (available later)

• Compander per channel

• Squelch level

2. Specifications

		TK-D740V	TK-D840U
GENERAL
Frequency Range	Type 1	136-174 MHz	400-470 MHz
Number of Channels		32 ch / 2 zones (Max. 16 ch/ zone)
Channel Spacing	Analog	25*/12.5 kHz
	Digital	12.5kHz
Operating Voltage		13.6 V DC ±15 %
Operating Temperature Range		-22 ºF to +140 ºF (-30 ºC to +60 ºC)
Frequency Stability		±2.0ppm	±1.0ppm
Antenna Impedance		50Ω
Dimensions (W x H x D)	Projections not included	6.29 x 1.69 x 4.82 in (160 x 43 x 122.6 mm)
Weight (net)		2.42 lb (1.10 kg)
FCC ID	Type 1	K44475600	K44475701
	Type 2	–	K44475700
RECEIVER
Sensitivity	Digital 1 % BER	0.45μV
	Digital 5 % BER	0.3μV
	Analog (12 dB SINAD) @ 25/12.5 kHz	0.25μV
Adjacent Channel Selectivity	Analog @ 25*/12.5 kHz	74/68 dB
Intermodulation Distortion	Analog	73 dB
Spurious Response	Analog	75 dB
Audio Distortion		Less than 5 %
Audio Output		4 W/4 Ω
TRANSMITTER
RF Power Output		25-5 W	25-5 W
Spurious Response		73 dB	75 dB
FM Hum & Noise	Analog @ 25*/12.5 kHz	45/40 dB
Audio Distortion		Less than 5 %
Emission Designator		16K0F3E, 14K0F2D, 14K0F3E, 12K0F2D, 11K0F3E, 7K50F2D, 7K60FXE, 7K60FXD
